| Manufacturer | ASRock Industrial |
| Product ID | iBOX-1185G7E |
| CPU |
Intel Core i7-1185G7E Processor 1.80 - 4.40 GHz 4 Cores / 8 Threads 15W TDP, 12MB Intel SmartCache |
| Chipset | SoC |
| Memory |
2 x DDR4 SODIMM slots Maximum 64GB Capacity 3200 MHz Dual Channel Non-ECC, Unbuffered Memory Only |
| Video |
Intel Iris Xe Graphics 1.35 GHz HDMI Max Resolution: 4096x2160@60Hz DisplayPort Max Resolution: 4096x2160@60Hz USB 3.2 Gen2 Type-C ports Supports Display Output Up to Quad Displays |
| Audio | Realtek ALC233 HD Audio |
| Storage Technology |
x SATA3 6.0 GB/s Ports M.2: PCI-E 3.0 x4 and SATA mode Onboard TPM |
| Connectivity |
1 x Intel I225LM 2.5GbE LAN 1 x Intel I219V GbE LAN |
| Expansion Slots |
1 x M.2 2230 slot (E Key, PCIe x1, USB 2.0, and CNVi for Wireless) |

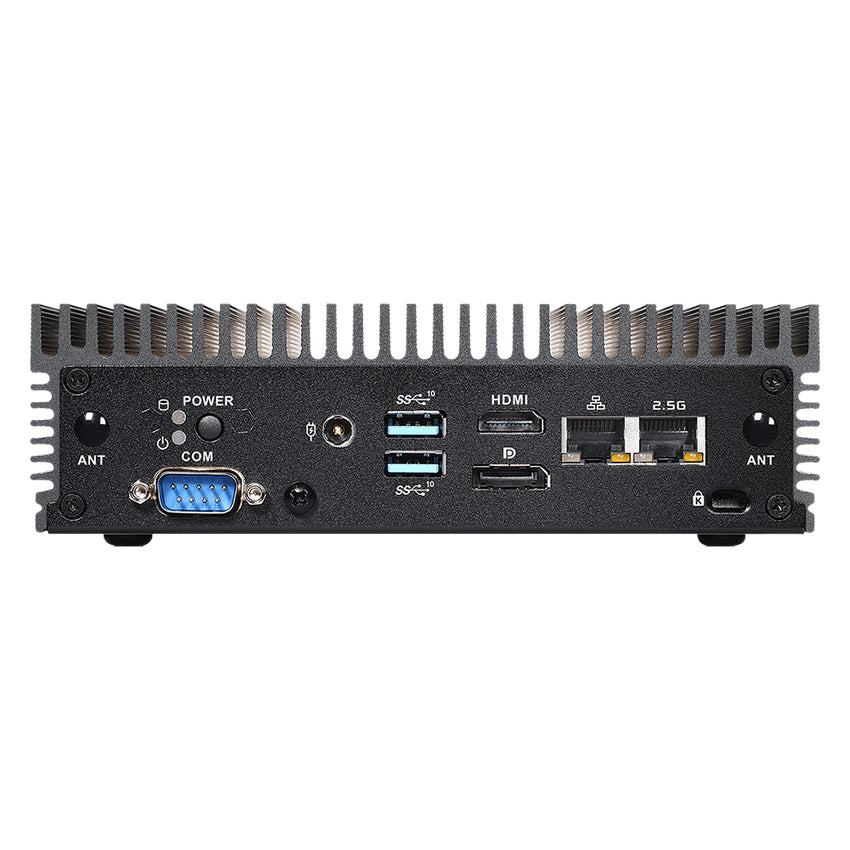

| Rear Panel I/O |
2 x Antenna Cutout 2 x Status LED (HDD, Power) 1 x Power Button 1 x COM Port (RS232) 1 x 12-19V DC-IN 2 x USB 3.2 (Gen2) Type-A 1 x HDMI 1 x DisplayPort 1 x RJ45 GbE LAN 1 x RJ45 2.5GbE LAN 1 x Kensington Lock |

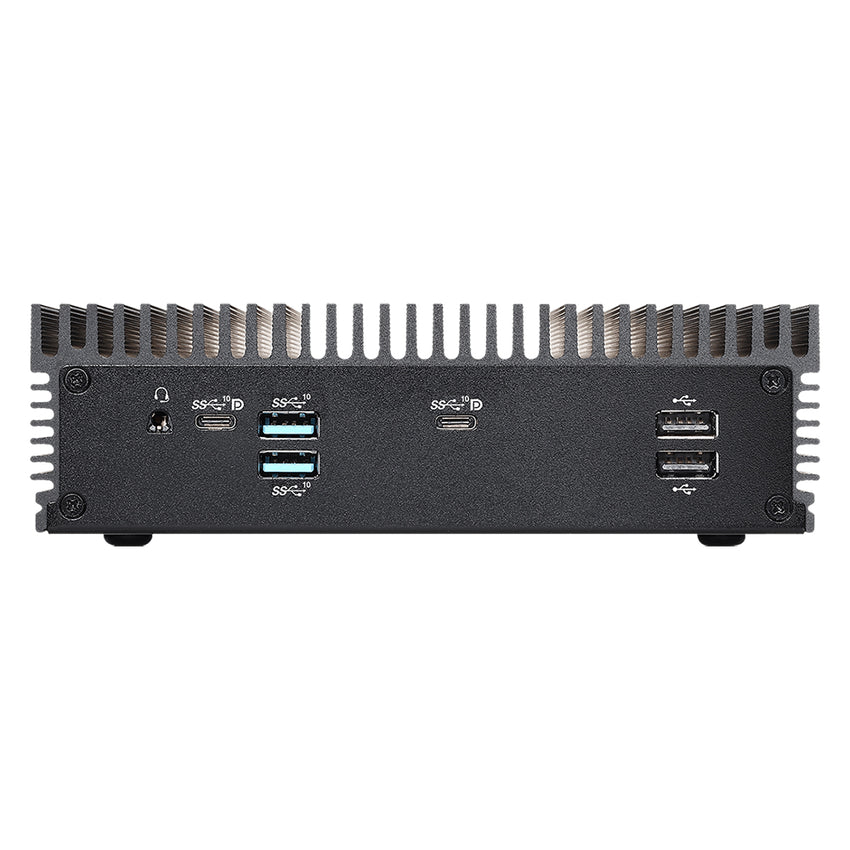

| Front Panel I/O |
1 x Audio I/O 2 x USB 3.2 (Gen2) Type-C 2 x USB 3.2 (Gen2) Type-A 2 x USB 2.0 |
| Drive Support |
1 x 2.5" SATA Drive Bay 1 x M.2 2242/2260/2280 slot (PCIe x4 or SATA) Note: M.2 2280 support with included bracket |
| Power Supply |
12V-19V DC-IN 90W 19V AC-DC Adapter AT/ATX Supported: -AT: Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Case Dimensions |
171.80 x 50.05 x 109.45mm 6.76" x 1.97" x 4.31" (in inches, approximate) |
| Mounting |
Wall Mounting VESA Mounting Bracket |
| Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non-condensing) Non-operating Humidty: 5% to 90% (non-condensing) |
| Compliance | CE, FCC Class A |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: iBOX-1185G7E
