Manufacturer	ASRock Industrial
Product ID	iBOX-1145G7E
CPU	Intel Core i5-1145G7E Processor 1.50 - 4.10 GHz 4 Cores / 8 Threads 15W TDP, 8MB Intel SmartCache
Chipset	SoC
Memory	2 x DDR4 SODIMM slots Maximum 64GB Capacity 3200 MHz Dual Channel Non-ECC, Unbuffered Memory Only
Video	Intel Iris Xe Graphics 1.30 GHz HDMI Max Resolution: 4096x2160@60Hz DisplayPort Max Resolution: 4096x2160@60Hz USB 3.2 Gen2 Type-C ports Supports Display Output Up to Quad Displays
Audio	Realtek ALC233 HD Audio
Storage Technology	x SATA3 6.0 GB/s Ports M.2: PCI-E 3.0 x4 and SATA mode Onboard TPM
Connectivity	1 x Intel I225LM 2.5GbE LAN 1 x Intel I219V GbE LAN
Expansion Slots	1 x M.2 2230 slot (E Key, PCIe x1, USB 2.0, and CNVi for Wireless)

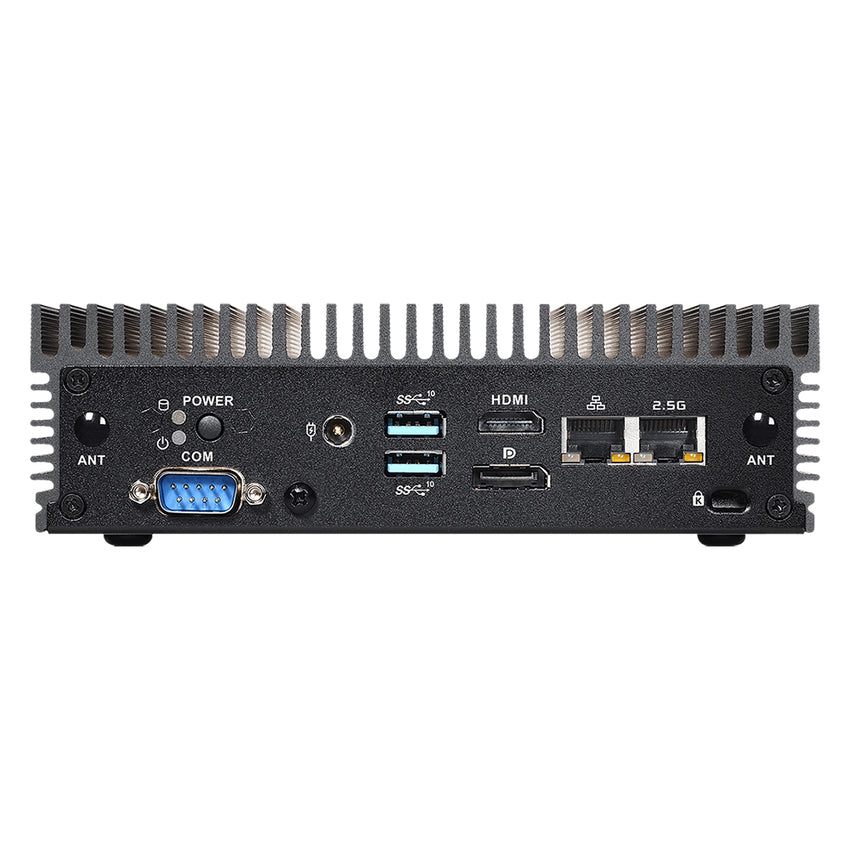

Rear Panel I/O	2 x Antenna Cutout 2 x Status LED (HDD, Power) 1 x Power Button 1 x COM Port (RS232) 1 x 12-19V DC-IN 2 x USB 3.2 (Gen2) Type-A 1 x HDMI 1 x DisplayPort 1 x RJ45 GbE LAN 1 x RJ45 2.5GbE LAN 1 x Kensington Lock

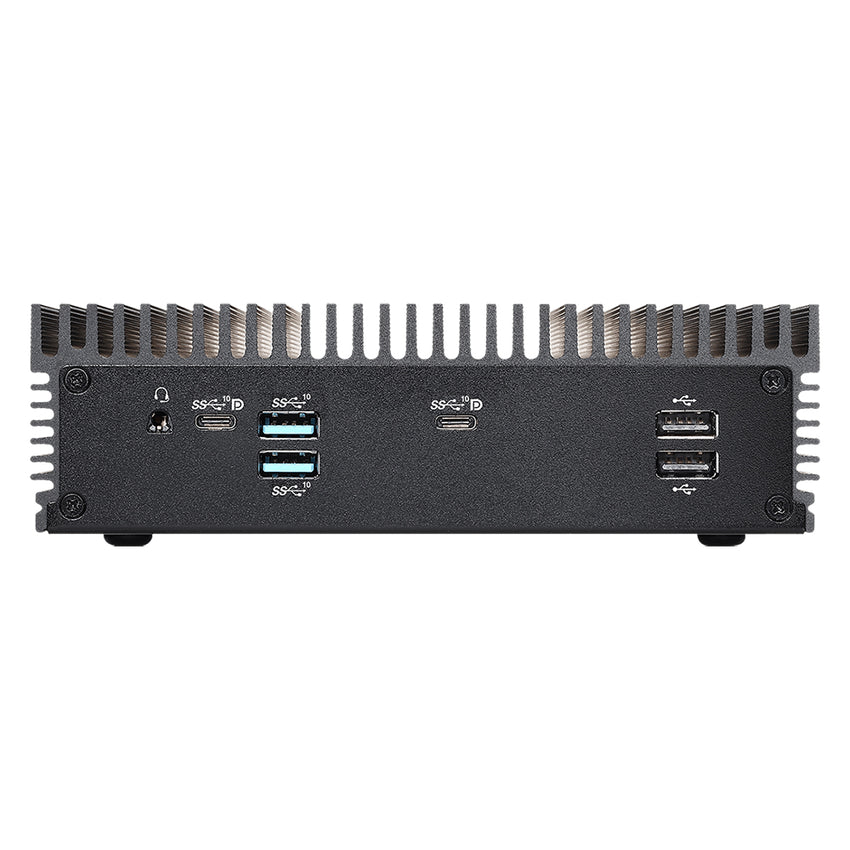

Front Panel I/O	1 x Audio I/O 2 x USB 3.2 (Gen2) Type-C 2 x USB 3.2 (Gen2) Type-A 2 x USB 2.0
Drive Support	1 x 2.5" SATA Drive Bay 1 x M.2 2242/2260/2280 slot (PCIe x4 or SATA) Note: M.2 2280 support with included bracket
Power Supply	12V-19V DC-IN 90W 19V AC-DC Adapter AT/ATX Supported: -AT: Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
Case Dimensions	171.80 x 50.05 x 109.45mm 6.76" x 1.97" x 4.31" (in inches, approximate)
Mounting	Wall Mounting VESA Mounting Bracket
Environmental	Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non-condensing) Non-operating Humidty: 5% to 90% (non-condensing)
Compliance	CE, FCC Class A
Warranty	1-Year Warranty on Parts and Labor
