| Product ID | HPW-CF05-DL |
| CPU | Supports Intel 14th/13th/12th Gen Processors Socket LGA 1700 Raptor Lake-S Refresh, Raptor Lake-S, Alder Lake-S Maximum 125W |
| Chipset | Intel Q670 Express Onboard Infineon SLB9672VU2.0 TPM 2.0 |
| Memory | 4 x DDR5 DIMM slots Supports Non-ECC UDIMM Maximum 128GB Capacity 4400 MHz Dual Channel |
| Video | Intel UHD Graphics (CPU Dependent) VGA Max Resolution: 1920x1200@60Hz HDMI Max Resolution: 4096x2160@60Hz DisplayPort Max Resolution: 4096x2304@60Hz Supports 3 Independent Displays |
| Audio | Realtek ALC897 Audio Codec (Co-lay ALC888S) |
| Storage Technology | 4 x SATA3 connectors Supports Intel RAID 0/1/5/10 1 x M.2 22110/2280 slot (M Key, PCI-E 4.0 x4) 1 x M.2 2280/2242 slot (M Key, PCI-E 4.0 x4) Note: Shared Signal with PCIe slot 5 |
| Connectivity | 1 x Intel I225-LM 2.5GbE LAN (Supports iAMT 16.x) 1 x Intel I225-LM 2.5GbE LAN |
| Expansion Slots | 2 x PCI-E 5.0 x16 slots (Shared Lanes, x16 or x8/x8) Note: GPU Max Length: 290mm (11.4") 1 x PCI-E 4.0 x4 slot (Shared with M.2 slot) 3 x PCI-E 3.0 x4 slots |
| Rear Panel I/O | 1 x DisplayPort 1 x HDMI 1 x COM (RS232/422/485, Ring/0V/5V/12V, Auto-flow Control Supported) 2 x RJ45 2.5GbE LAN 8 x USB 3.2 (Gen2) 2 x Audio I/O |

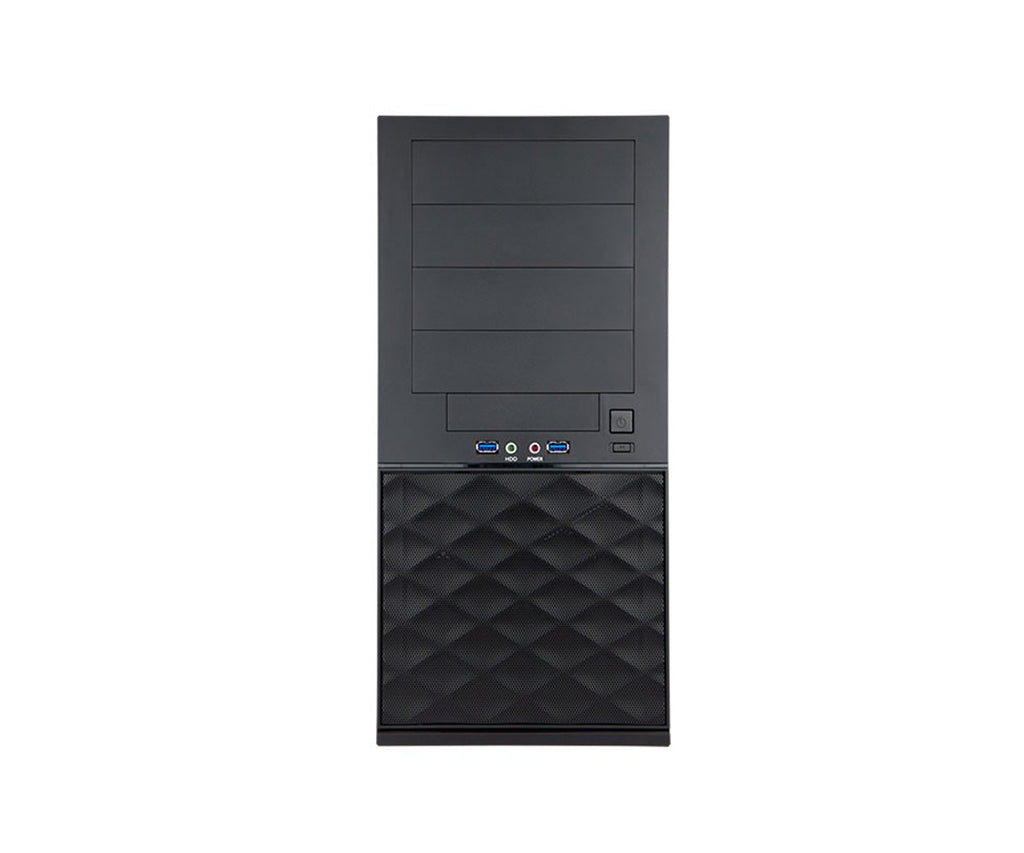

| Front Panel I/O | 2 x USB 3.0 2 x Audio I/O |
| Drive Support | 5 x 2.5"/3.5" SATA Drive Bays 1 x M.2 22110/2280 slot (M Key, PCI-E 4.0 x4) 1 x M.2 2280/2242 slot (M Key, PCI-E 4.0 x4) Note: Shared Signal with PCIe slot 5 |
| Fan Support | 1 x 120mm Rear Fan Supports 1 x 120mm Front Fan Supports 2 x 120mm Side Fans |
| OS Support | Windows 10 IoT Enterprise LTSC (64-bit) Windows 11 IoT Enterprise LTSC (64-bit, 22H2) Linux Kernal 5.xx / Ubuntu 22.04 LTS (64-bit) |
| Power Supply | 850W 80+ Gold Power Supply AC Input: 100-240V, 10-5A, 60/50 Hz |

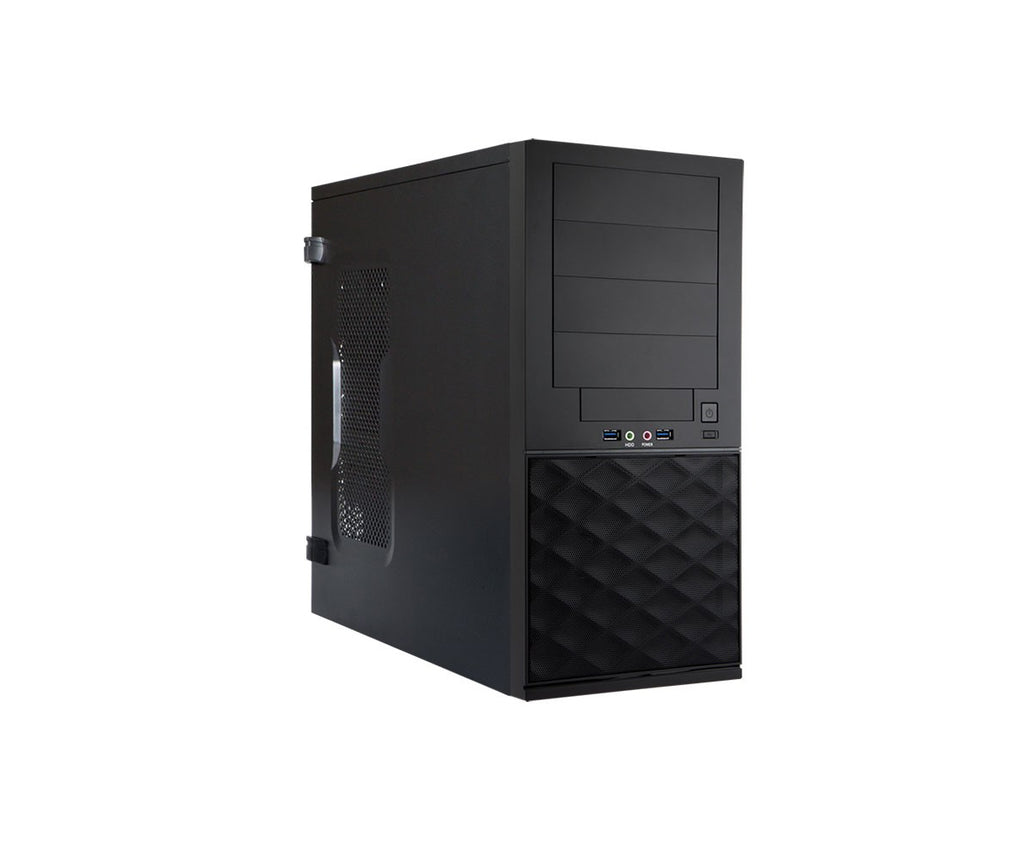

| Case Dimensions | 430 x 200 x 460mm 16.9" x 7.9" x 18.1" (in inches) |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: HPW-CF05-DL
