Product ID	HPW-ARQ670E-PE052
Motherboard	ASRock Industrial IMB-1714
CPU	Supports Intel Core Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen Processors Socket LGA 1700 Raptor Lake-S Refresh, Raptor Lake-S, Alder Lake-S Maximum 125W
Chipset	Intel Q670 Express Onboard TPM 2.0 IC
Memory	4 x DDR5 DIMM slots Supports Non-ECC UDIMM Maximum 192GB Capacity (48GB per DIMM) 4400/5600 MHz Dual Channel
Video	Intel UHD Graphics (CPU Dependent) VGA Max Resolution: 1920x1200@60Hz HDMI 2.0b Max Resolution: 4096x2160@60Hz DisplayPort 1.4a Max Resolution: 4096x2160@60Hz Supports Triple Display
Audio	Realtek ALC897 Audio Codec
Storage Technology	8 x SATA3 connectors Supports Intel VMD RAID 0/1/5/10 1 x M.2 2242/2260/2280/22110/25110 slot (M Key, PCI-E 4.0 x4)
Connectivity	1 x Intel I226-V 2.5GbE LAN (Supports PoE) 1 x Intel I226-LM 2.5GbE LAN (Supports vPro) 1 x Intel I226-V 2.5GbE LAN
Expansion Slots	2 x PCI-E 5.0 slots (Single x16 or Dual x8/x8) Note: GPU Max Length: 290mm (11.4") 2 x PCI-E 4.0 x4 slots 3 x PCI-E 3.0 x1 slots 1 x M.2 (Key E, 2230) for Wi-Fi 1 x M.2 (Key B, 3042/3052) for 4G/5G with SIM Socket

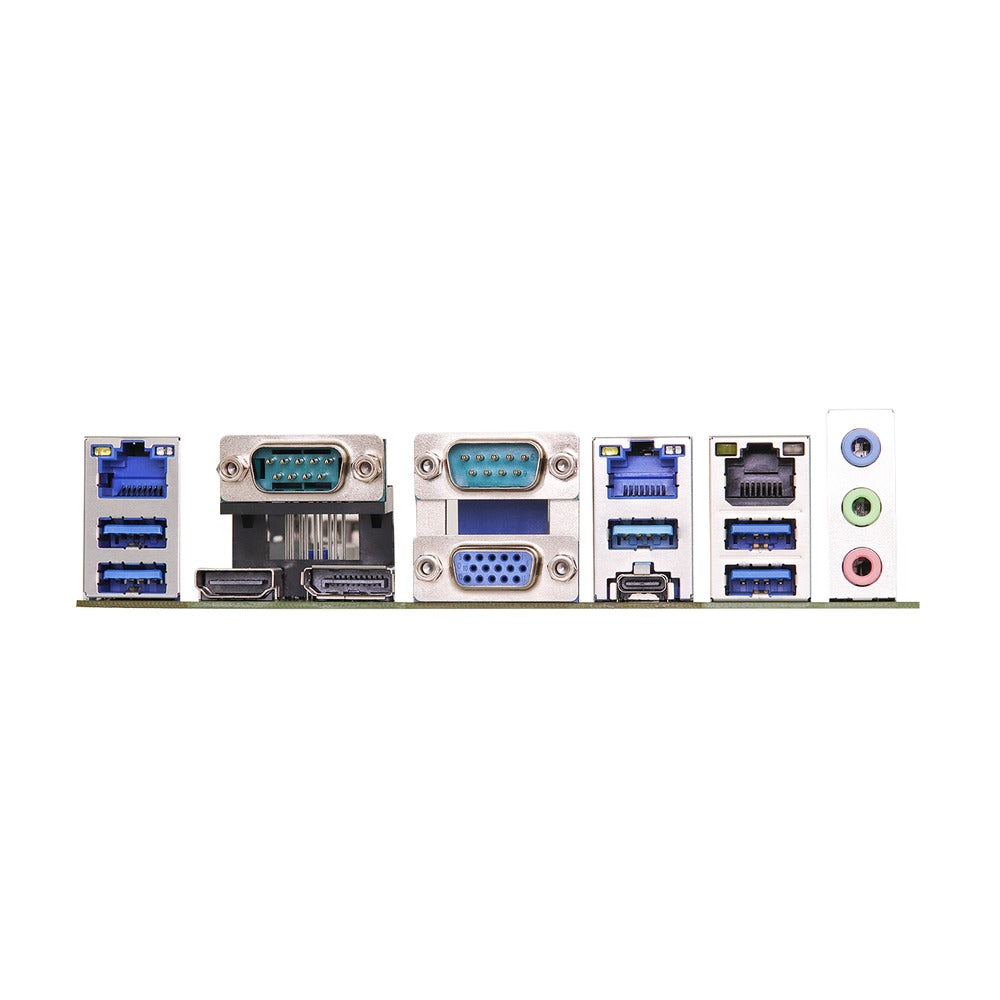

Rear Panel I/O	1 x DisplayPort 1.4a 1 x HDMI 2.0b 1 x VGA 2 x COM (RS232/422/485) 3 x RJ45 2.5GbE LAN 5 x USB 3.2 (Gen2) 1 x USB 3.2 (Gen2x2) Type-C 3 x Audio I/O
Front Panel I/O	2 x USB 3.0 2 x Audio I/O

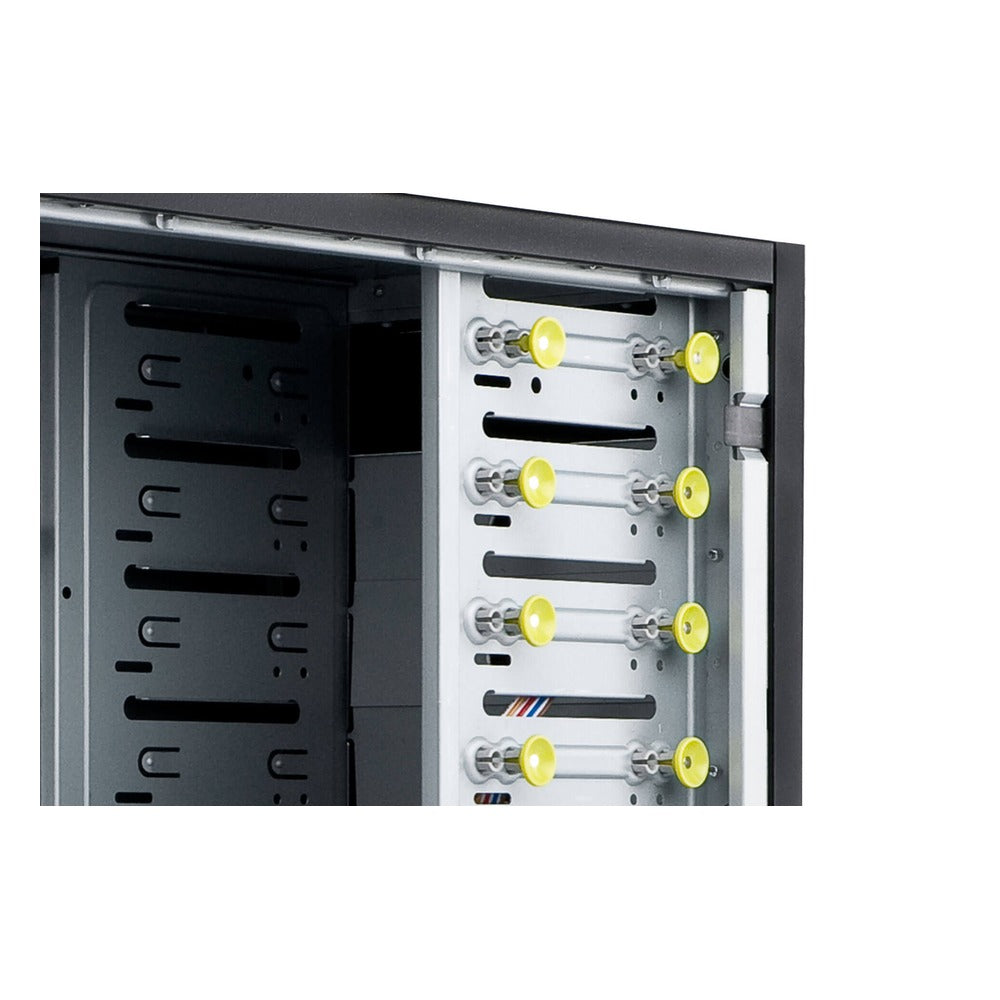

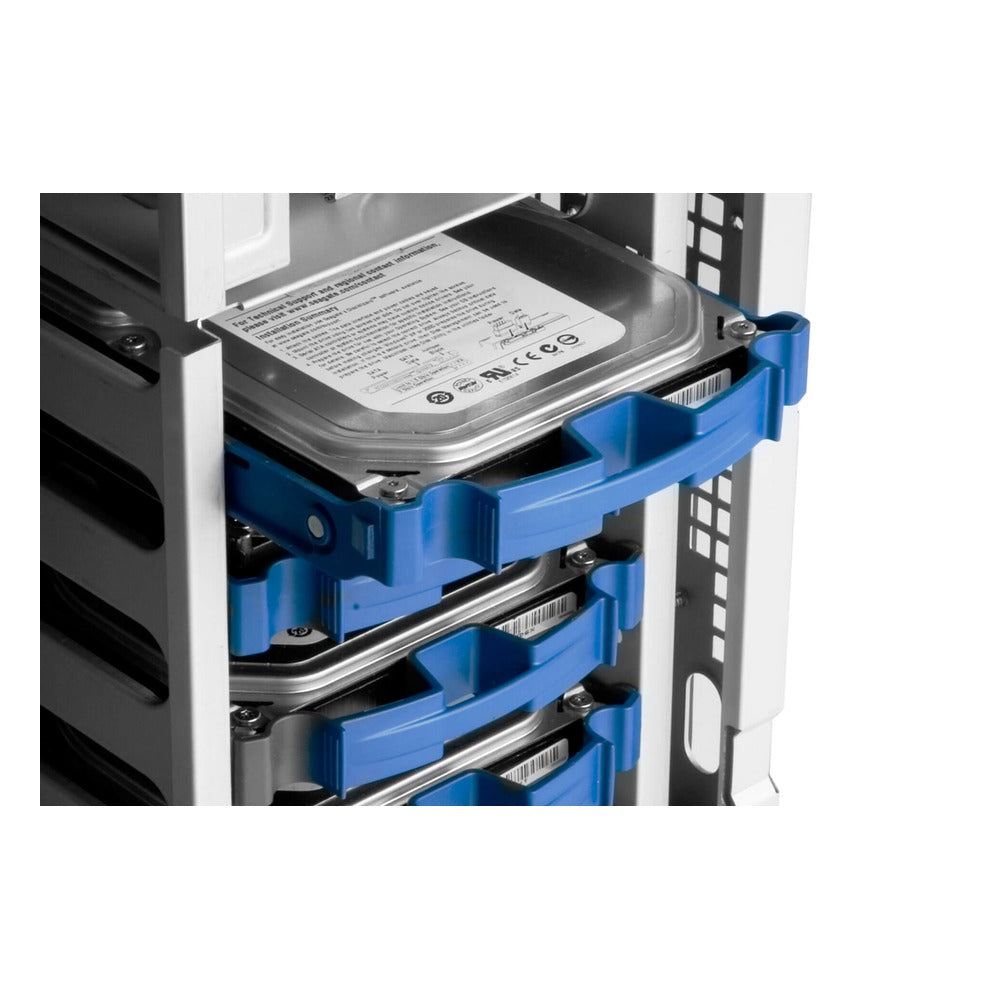

Drive Support	5 x 2.5"/3.5" SATA Drive Bays 1 x M.2 2242/2260/2280/22110/25110 slot (M Key, PCI-E 4.0 x4)
Fan Support	1 x 120mm Rear Fan Supports 1 x 120mm Front Fan Supports 2 x 120mm Side Fans
OS Support	Windows 10 IoT Enterprise LTSC (64-bit) Windows 11 IoT Enterprise LTSC (64-bit, 22H2) Linux Kernal 5.xx / Ubuntu 22.04 LTS (64-bit)
Power Supply	850W 80+ Gold Power Supply AC Input: 100-240V, 10-5A, 60/50 Hz
Case Dimensions	430 x 200 x 460mm 16.9" x 7.9" x 18.1" (in inches)
Warranty	1-Year Warranty on Parts and Labor
