Manufacturer	Jetway
Product ID	HBJC386Z9300-J19B
CPU	Intel Celeron J1900 Processor 2.00 - 2.42 GHz 4 Cores / 4 Threads 10W TDP, 2MB L2 Cache
Chipset	SoC
Memory	1 x DDR3L SODIMM slot 1333 MHz 8GB Maximum Capacity Non-ECC, Unbuffered Memory only Low Voltage 1.35V Required
Video	Intel HD Graphics 688 - 854 MHz DVI-I Max Resolution: 1920x1200@60Hz HDMI Max Resolution: 1920x1200@60Hz
Audio	Onboard Audio
Storage Technology	M.2: SATA (M2M)
Connectivity	2 x Intel i211-IT GbE LAN
Expansion Slots	1 x M.2 2230 slot (M2E, E Key, USB 2.0 and PCIe x1 Interface) 1 x M.2 3042 slot (M2B, B Key, USB 3.0 Interface) 1 x SIM Card Holder

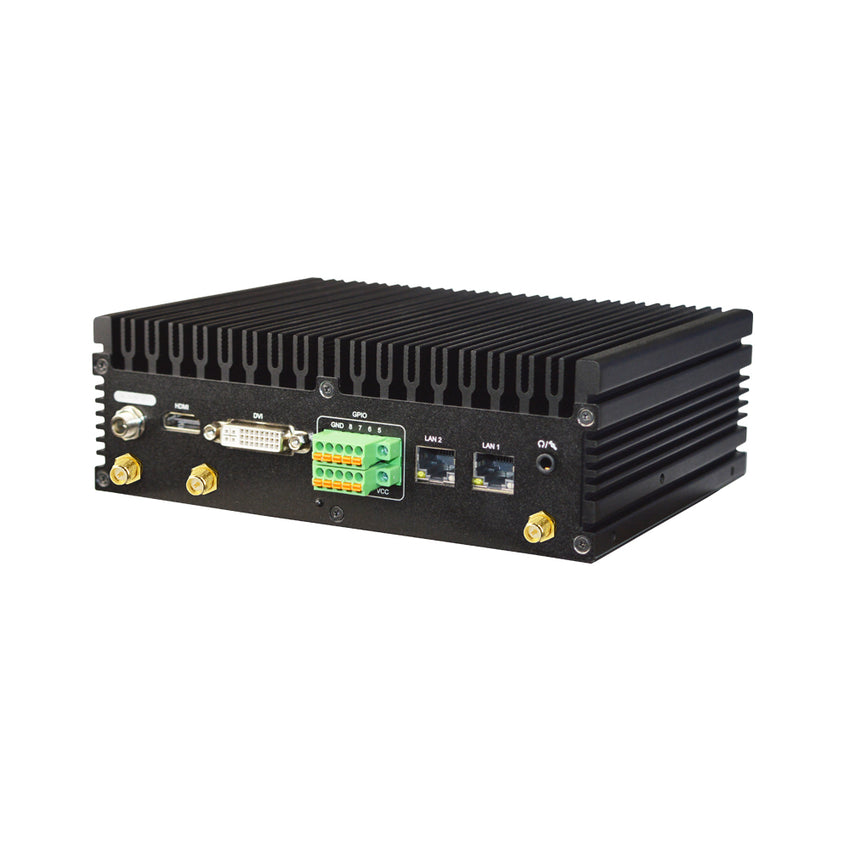

Rear Panel I/O	1 x 9-24V DC-IN (Lockable Type) 1 x HDMI 1 x DVI-I 1 x 8 bit GPIO 2 x RJ45 GbE LAN 1 x Audio Combo In/Out 3 x Antenna Holes

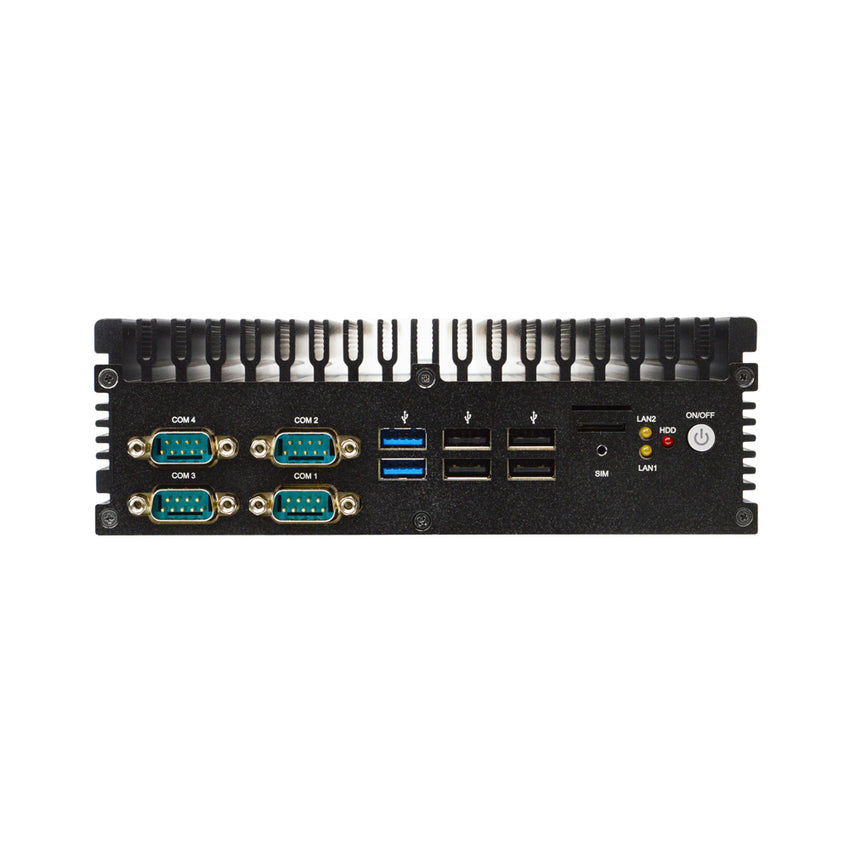

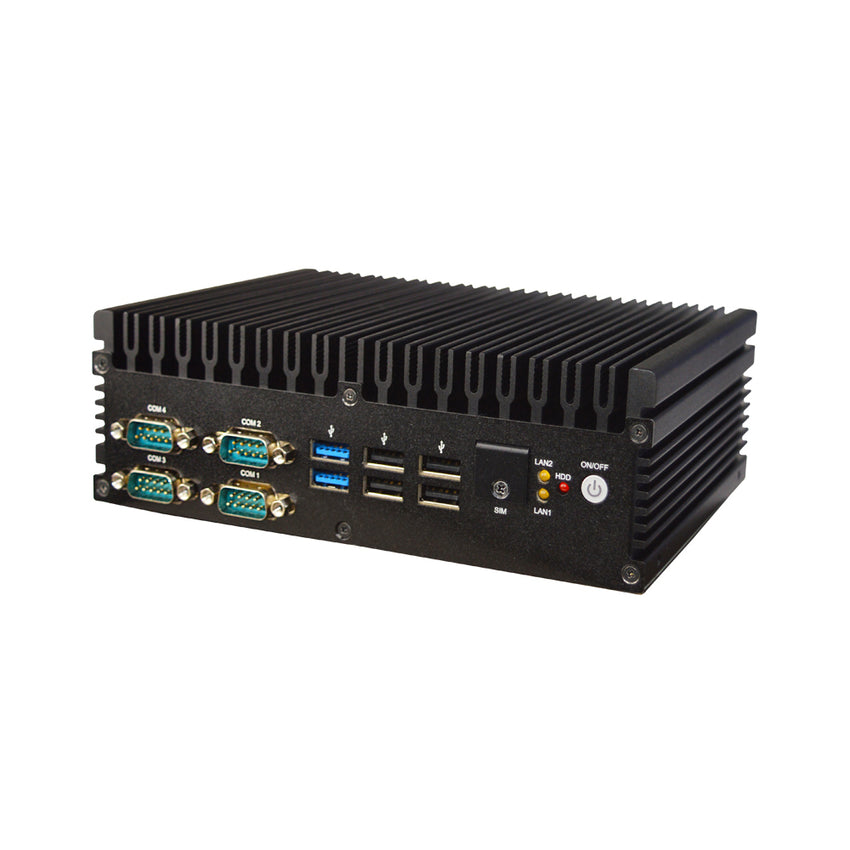

Front Panel I/O	1 x COM (RS232/422/485) 3 x COM (RS232) 2 x USB 3.0 4 x USB 2.0 1 x SIM Card slot 3 x Status LED (LAN, HDD) 1 x Power button with LED
Drive Support	1 x M.2 2280/2242 slot (SATA)
Power Supply	9-24V DC-IN (Lockable Type) 60W 12V AC-DC Adapter
Case Dimensions	185 x 142 x 60mm 7.3" x 6.0" x 2.4" (in inches, approximate)
Mounting	Wall Mount Bracket DIN Rail Kit
Environmental	Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Temperature: -40°C to 80°C (-40°F to 176°F) Operating Humidity: 10% to 90% RH @ 40°C (non-condensing)
Compliance	CE, FCC, LVD, RoHS, ErP Ready
Warranty	1-Year Warranty on Parts and Labor
