Manufacturer	Jetway
Product ID	HBJC386F951T-394B
CPU	Intel Apollo Lake-I E3940 Processor 1.60 - 1.80 GHz 4 Cores / 4 Threads 9.5W TDP, 2MB L2 Cache
Chipset	SoC
Memory	1 x DDR3L SODIMM slot 1866 MHz 8GB Maximum Capacity Non-ECC, Unbuffered Memory only Low Voltage 1.35V Required
Video	Intel HD Graphics 500 400 - 600 MHz HDMI Max Resolution: 3840x2160@30Hz VGA Max Resolution: 1920x1200@60Hz
Audio	Onboard Audio
Storage Technology	M.2: SATA only
Connectivity	2 x Intel i210-IT GbE LAN
Expansion Slots	1 x Mini PCI-E slot 1 x SIM Card Holder

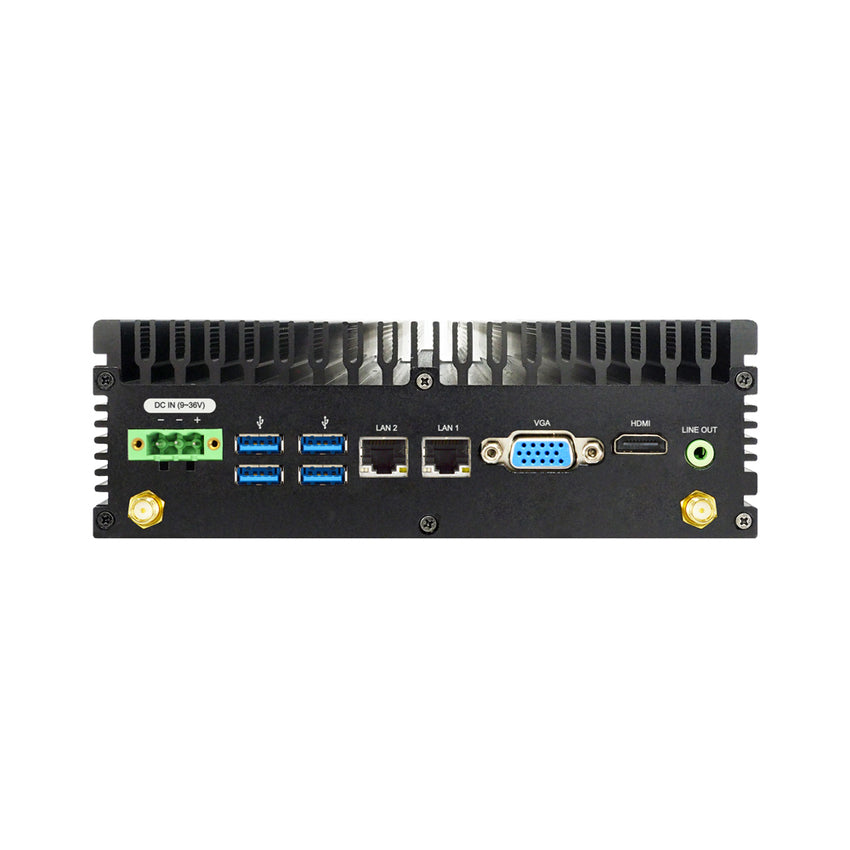

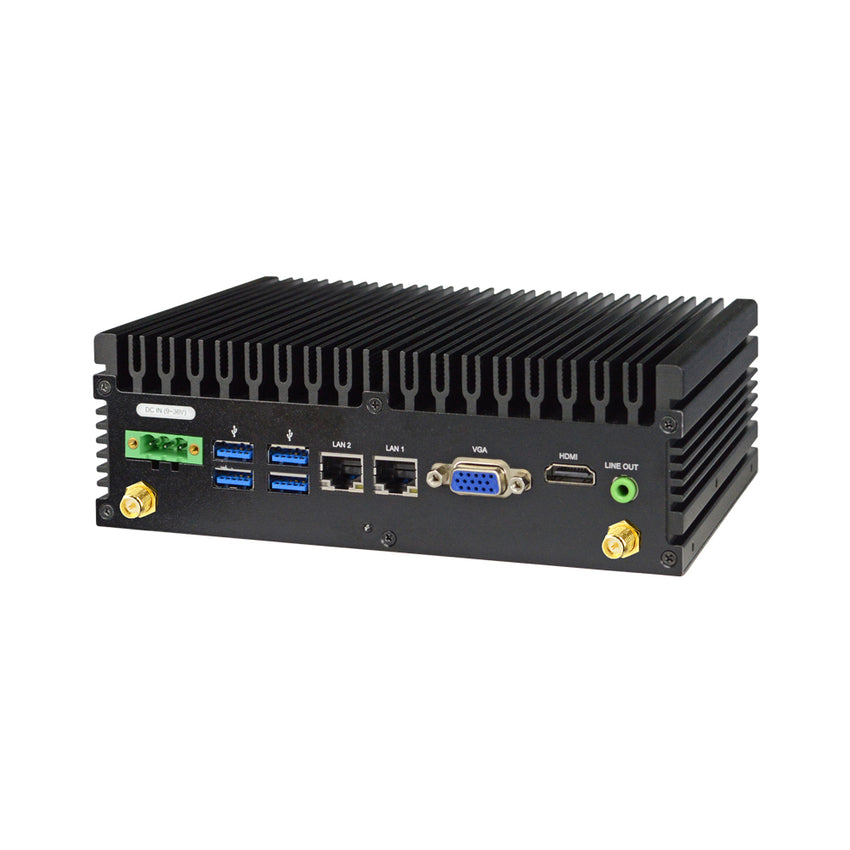

Rear Panel I/O	1 x 9-36V 3-Pin Pheonix Terminal DC-IN 4 x USB 3.0 2 x RJ45 GbE LAN 1 x VGA 1 x HDMI 1 x Line Out 2 x Antenna Holes

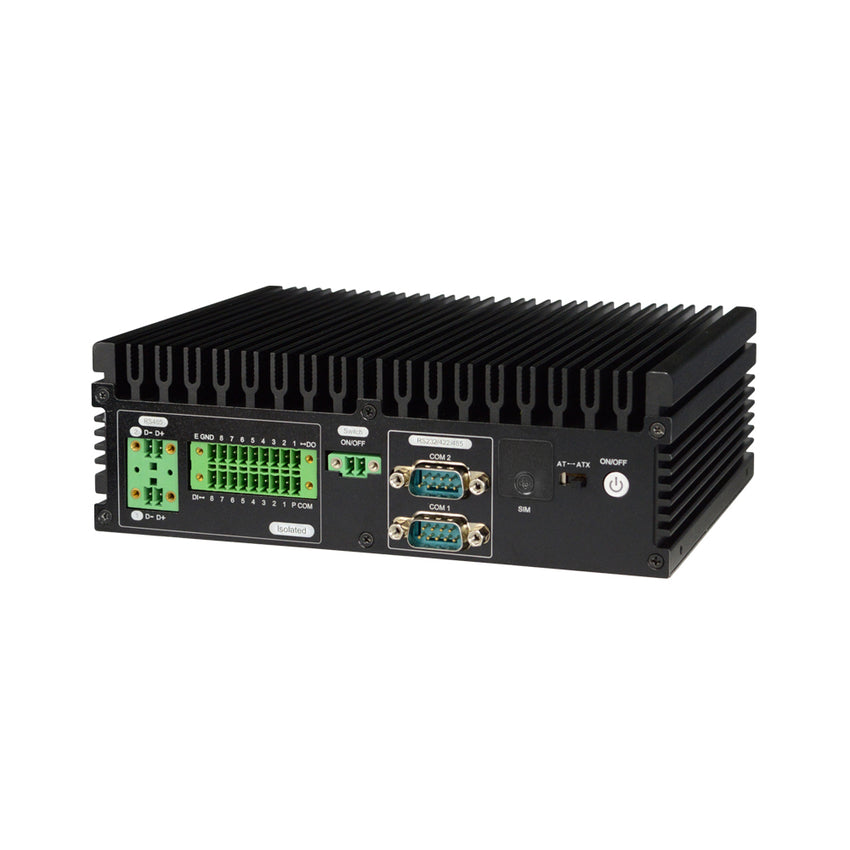

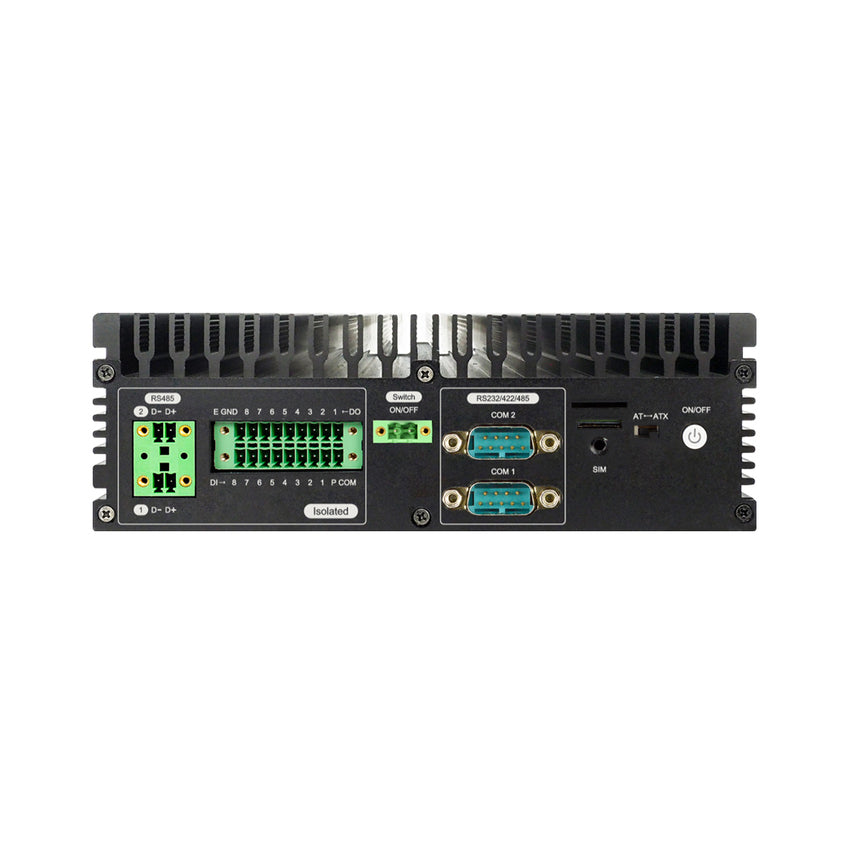

Front Panel I/O	2 x RS485 (Isolation Protection 2,500VDC) 1 x 16-bit GPIO (8-In, 8-out, Isolation Protection 2,500VDC, Output Voltage 5~20VDC) 1 x Power Switch (2-Pin Out) 2 x COM (RS232/422/485, COM1 w/ Power) 1 x SIM Card slot 1 x AT/ATX Switch 1 x Power Button with LED
Drive Support	1 x M.2 2280 slot (M Key, SATA only)
Power Supply	9-36V 3-Pin Phoenix Terminal DC-IN 60W 12V AC-DC Adapter
Case Dimensions	185 x 142 x 60mm 7.3" x 6.0" x 2.4" (in inches, approximate)
Mounting	Wall Mount Bracket DIN Rail Kit
Environmental	Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Temperature: -40°C to 80°C (-40°F to 176°F) Operating Humidity: 10% to 90% RH @ 40°C (non-condensing)
Compliance	CE, FCC, LVD, RoHS, ErP Ready
Warranty	1-Year Warranty on Parts and Labor
