Manufacturer | Jetway |
Product ID | HBJC382F3E-4300UB |
Model Name | HBJC382F3E |
CPU |
Intel Core i5-4300U Processor 2 Cores / 4 Threads 1.9 - 2.9 GHz 15W TDP, 3MB Intel Smart Cache |
Chipset |
SoC |
Memory |
2 x DDR3L SODIMM slots Maximum 16GB Capacity 1600 MHz Dual Channel |
Video |
Intel HD Graphics 4400 200 MHz - 1.10 GHz 2 GB Graphics Video Max Memory HDMI Max Resolution: 4096x2304@24 Hz Supports Dual Display |
Audio |
Realtek ALC 662 HD Audio Codec |
Storage Technology |
1 x SATA3 6Gb/s Connectors 1 x Mini PCI-E with mSATA Support |
Connectivity |
1 x Intel I211AT GbE LAN 1 x Intel I218LM GbE LAN |
Expansion Slots |
1 x Mini PCI-E slot (Full Size) with mSATA Support 1 x Mini PCI-E slot (Half Size) |
Rear Panel I/O |
1 x 9-24V DC-IN 2 x USB 2.0 2 x RJ45 GbE LAN 4 x USB 3.0 2 x HDMI 1 x Audio Out |

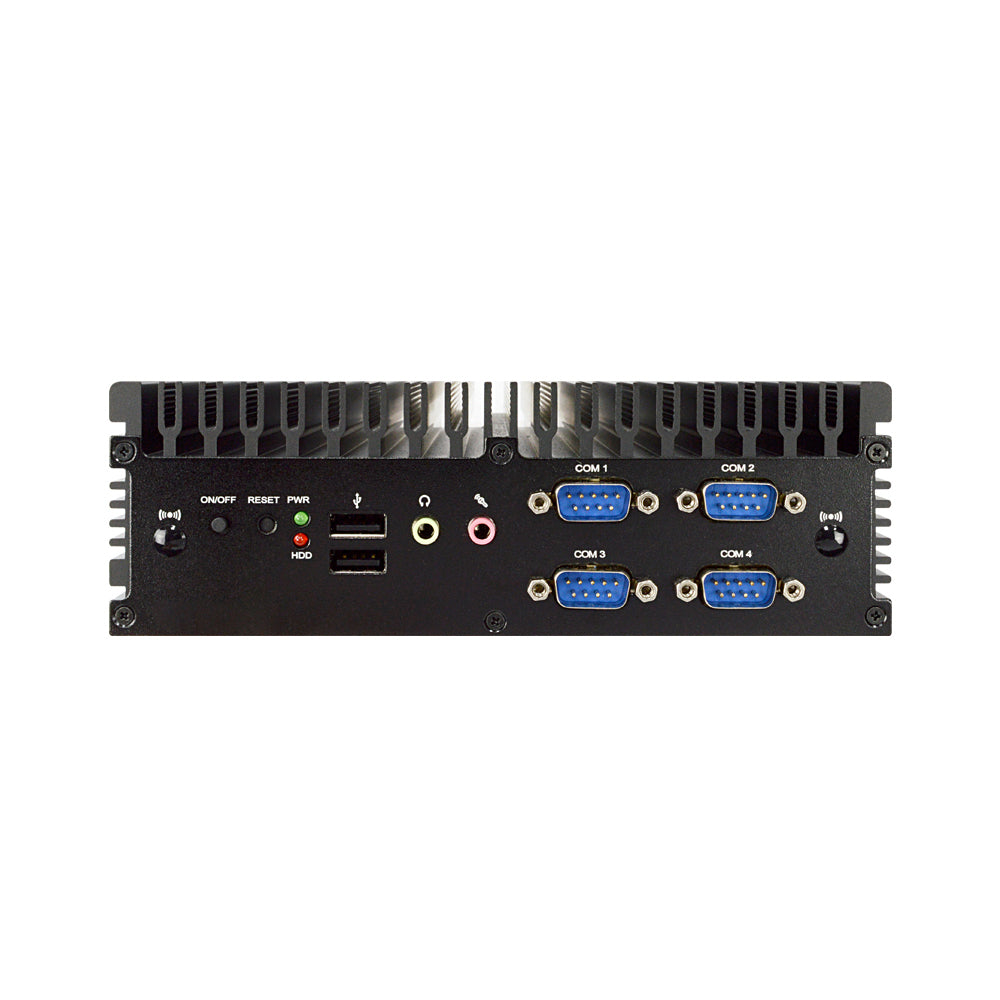

Front Panel I/O |
2 x Antenna Cutout 1 x Power Button 1 x Reset Button 2 x Status LED (Power, HDD) 2 x USB 2.0 2 x Audio I/O 4 x COM (RS232) |
Drive Support |
1 x 2.5" SATA Drive Bay 1 x Mini PCI-E with mSATA Support |
OS Support |
Windows 7 Windows 10 |
Power Supply |
60W 12V Power Adapter 90-240V AC Input 9-24V DC-IN |
Case Dimensions |
185 x 60 x 142mm 7.3" x 2.4" x 5.6" (in inches) |
Mounting |
Wallmount Kit |
Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-Operating Temperature: -10°C to 70°C (14°F to 158°F) |
Compliance |
EMC: CE, FCC Safety: RoHS, ErP |
Warranty | 2-Year Manufacturer's Limited Warranty |
