Manufacturer	Jetway

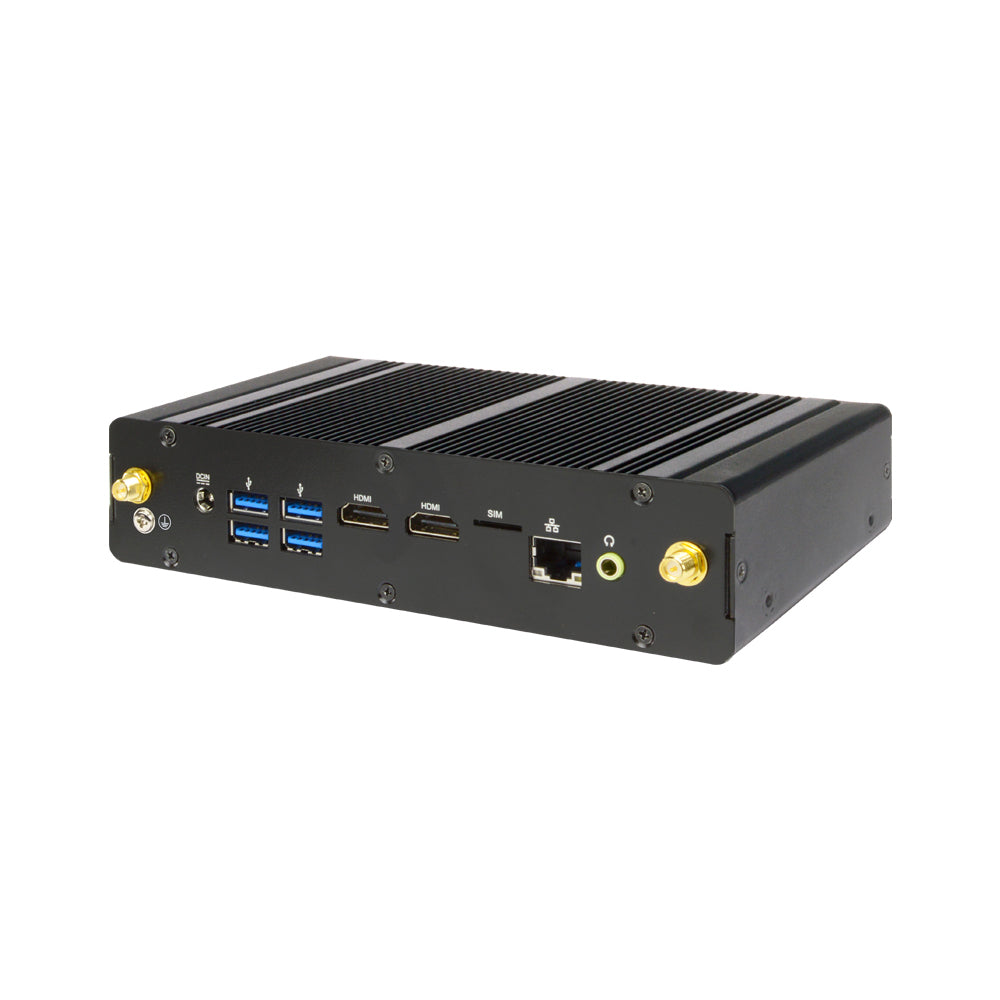

Model Name	JBC366F832
Part Number	HBJC366F832T2-345B
CPU	Intel Celeron J3455 Processor 4 Cores / 4 Threads 1.50 - 2.30 GHz 10W TDP, 2 MB Cache
Chipset	SoC
Memory	1 x DDR3L-1866 SODIMM slot Maximum 8GB Capacity 1.35V Low Voltage Required
Video	Intel HD Graphics 500 250 - 750 MHz HDMI Max Resolution: 3840x2160@30Hz Supports Dual Displays
Audio	Realtek ALC662 HD Audio
Storage Technology	SATA3 6Gb/s M.2: SATA
Connectivity	1 x Realtek RTL8111H GbE LAN
Expansion Slots	1 x Mini PCI-E slot (Full Sized) with Micro SIM Slot 1 x M.2 2230 slot (E Key, for WiFi)
Rear Panel I/O	1 x GND Connector 1 x 12V DC-IN 4 x USB 3.0 2 x HDMI 1 x Micro SIM Slot 1 x RJ45 GbE LAN 1 x Audio Out
Front Panel I/O	1 x Power Button 1 x Power LED
Drive Support	1 x 2.5" Drive Bay (Max 9.5mm height) 1 x M.2 2280/2242 slot (SATA, M Key)
Features	TPM 2.0
Power Supply	12V DC-IN 40W 12V AC Adapter
Case Dimensions	184 x 106 x 42mm 7.2" x 4.2" x 1.7" (in inches, approximate)
Mounting	Din Rail/Wallmount Bracket
Environmental	Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -20°C to 70°C (-4°F to 158°F)
Compliance	CE, FCC, ErP for Barebone CE, FCC, TUV, UL, CCC, CB, ErP for Power Adapter
Warranty	1-Year Warranty on Parts and Labor
