| Manufacturer | Jetway |
| Product ID | HBJC330U10I-35G7 |
| Model Name | JBC330U10 |
| CPU |
Intel Core i5-1135G7E Processor 4 Cores / 8 Threads 900 MHz - 4.2 GHz 12-28W TDP, 8MB Intel Smart Cache |
| Chipset |
SoC |
| Memory |
2 x DDR4 SODIMM slots Maximum 64GB Capacity 3200 MHz |
| Video |
Intel Iris Xe Graphics 1.3 GHz 80 Execution Units HDMI 2.0b Max Resolution: 4096x2160@60Hz DisplayPort 1.4 Max Resolution: 4096x2304@60Hz Supports Quad Displays |
| Audio |
Realtek ALC888S HD Audio |
| Storage Technology |
1 x M.2 2280/2242 slot: PCI-E 4.0 x4 or SATA (M-Key) |
| Connectivity |
1 x Intel I225-V 2.5GbE LAN 1 x Intel I219-LM GbE LAN (Supports iAMT 12.0) Wireless AC and Bluetooth |
| Expansion Slots |
1 x M.2 2230 slot (Occupied by WIFI) 1 x M.2 3042/3052 slot (B-Key, USB/PCIe) |

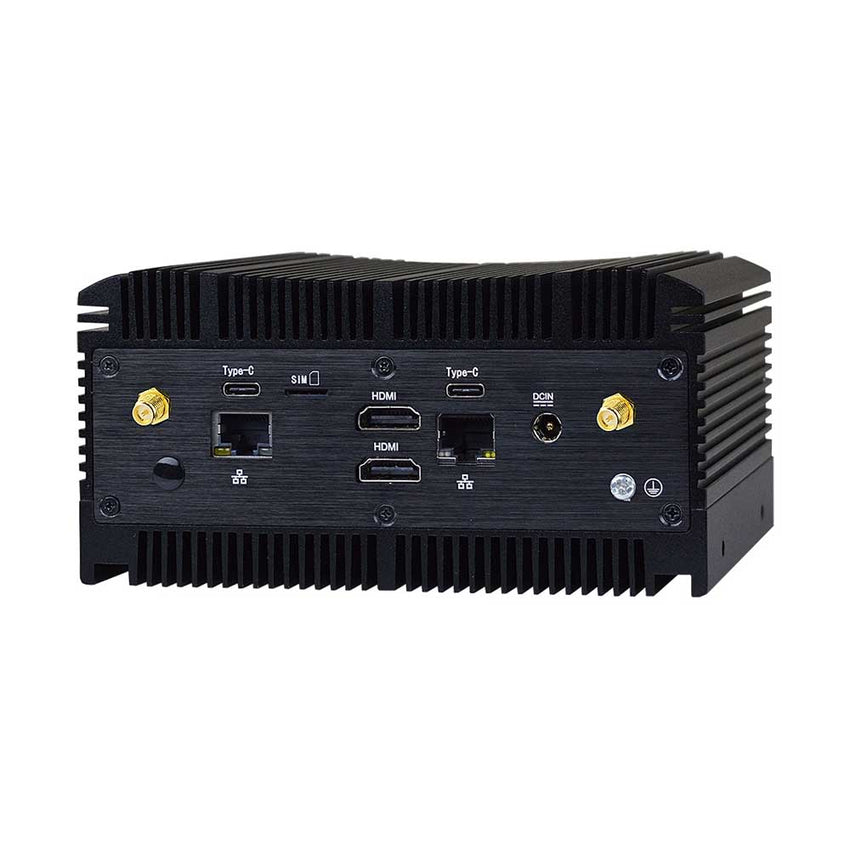

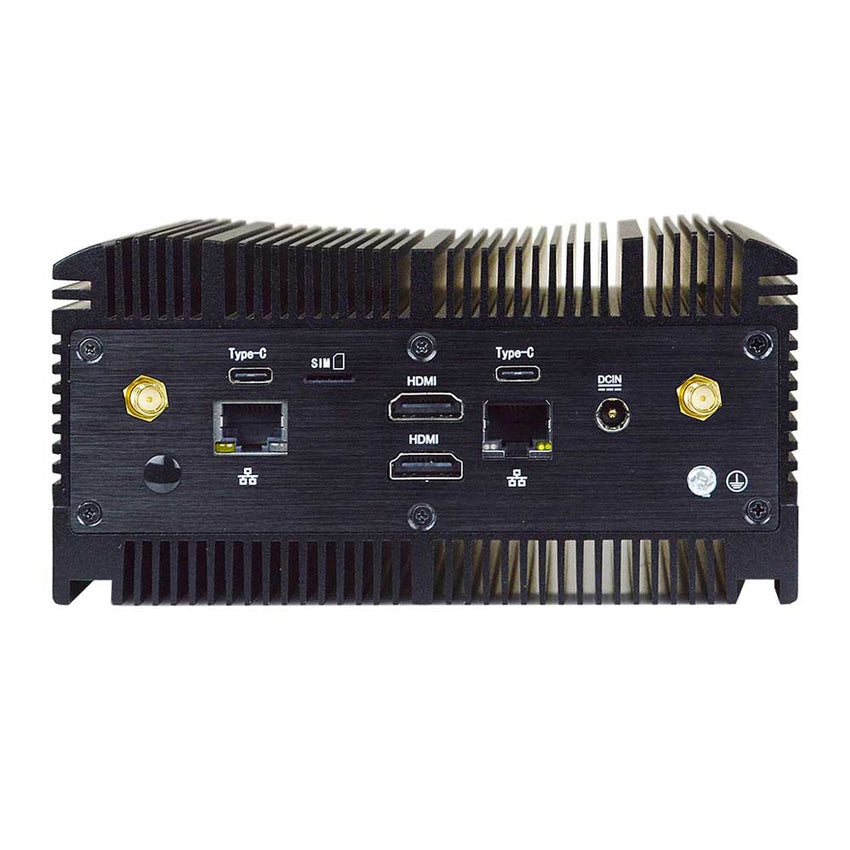

| Rear Panel I/O |
2 x Antenna Connectors 2 x USB 3.2 (Gen2) Type-C (Supports DP 1.4) 1 x RJ45 2.5GbE LAN 1 x SIM slot 2 x HDMI 2.0b 1 x RJ45 GbE LAN 1 x 12-24V DC-IN 1 x GND Screw |

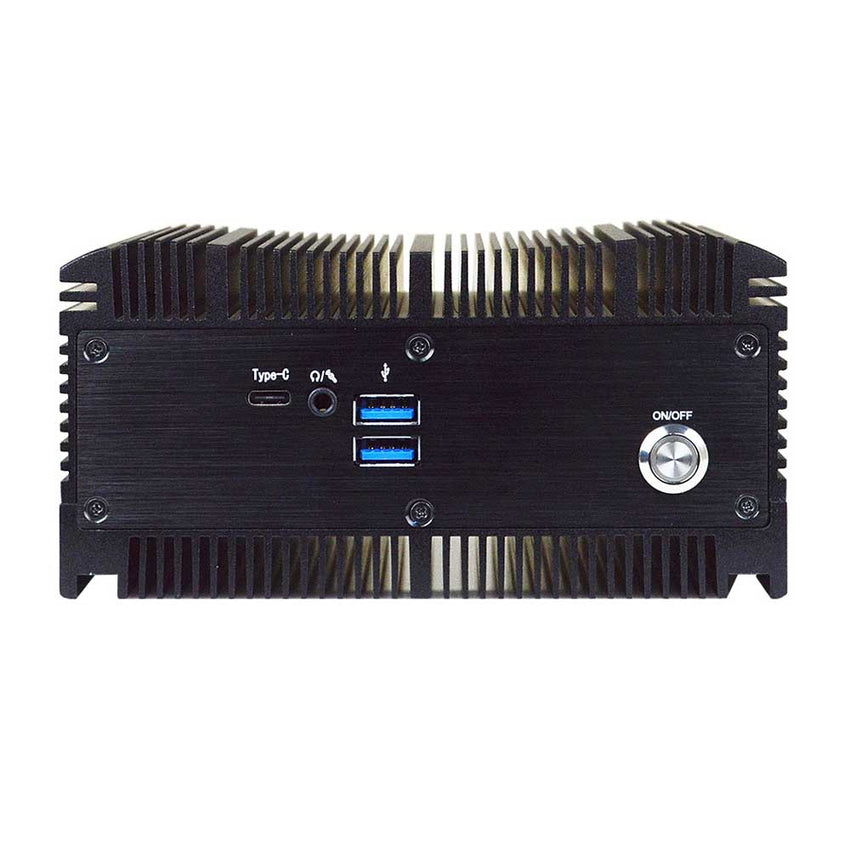

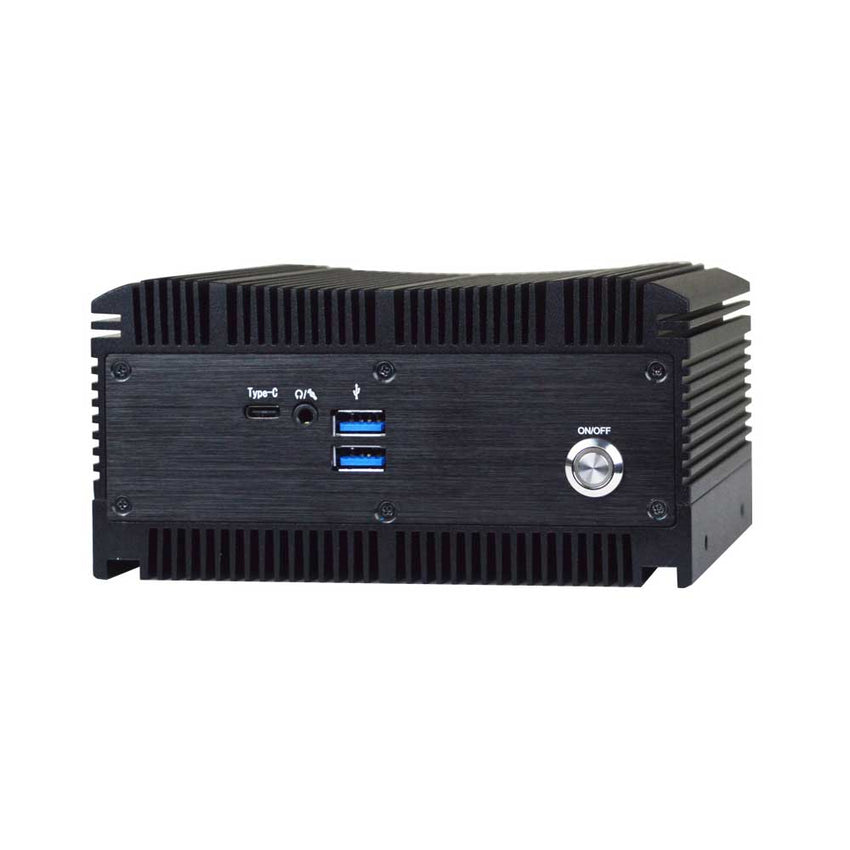

| Front Panel I/O |
1 x USB 3.2 (Gen2) Type-C (USB Only) 1 x 3.5mm Audio I/O 2 x USB 3.2 (Gen2) Type-A 1 x Power Button with LED |
| Drive Support |
1 x M.2 2280/2242 slot: PCI-E 4.0 x4 or SATA (M-Key) |
| OS Support |
Windows 10 Windows 11 CentOS 8.2_2004 RedHat 8.2 Fedora 33.1.2 OpenSUSE 15.2 Ubuntu 20.04.1 |
| Power Supply |
12-24V DC-IN 90W 12V AC DC Adapter |
| Case Dimensions |
150 x 106 x 75mm 5.9" x 4.2" x 3.0" (in inches) |
| Mounting |
VESA Mount Wall Mount |
| Environmental |
Operating Temperature: 10°C to 50°C (50°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 95% (non-condensing) |
| Compliance |
CE, FCC, ErP For Barebone CE, FCC, TUV, UL, CCC, CB, ErP For Power Adapter |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: HBJC330U10I-35G7
