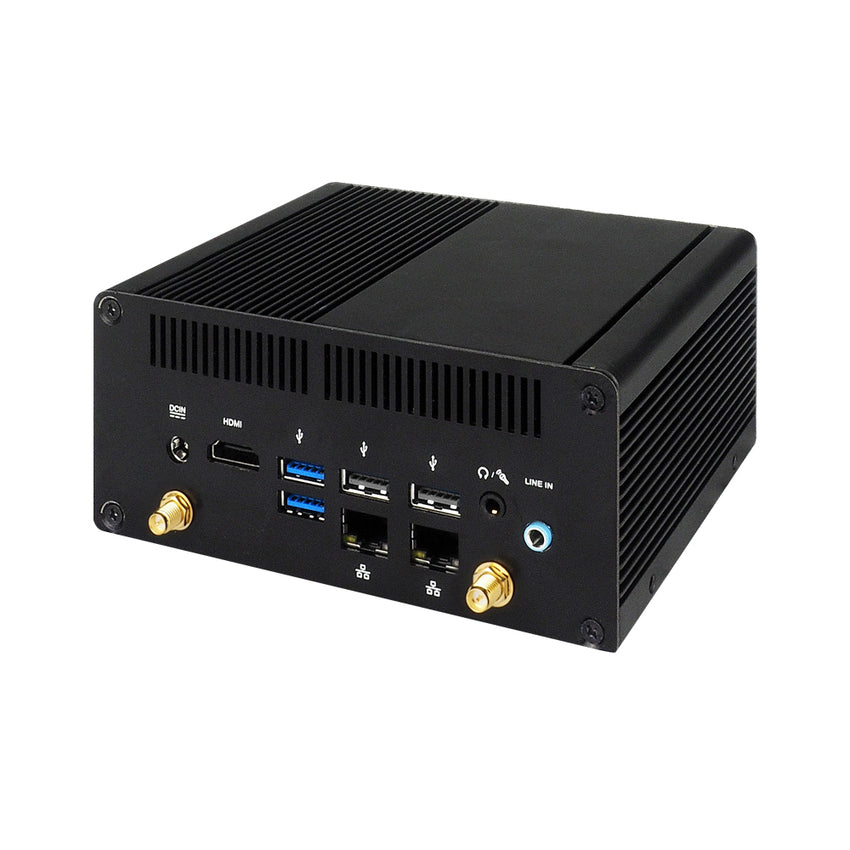

Jetway HBFCU792VW-3965-T Fanless Mini PC w/ Intel Kaby Lake-U Celeron 3965U, Dual Intel LAN, TPM v2.0 | |
Product ID | HBFCU792VW-3965-T |
CPU | Intel Celeron 3965U 2.20 GHz Dual Core Processor 2 core / 2 Threads 15W TDP, 14nm, 2MB SmartCache |
Chipset | SoC |
Memory | 2 x DDR4-2133 SODIMM Slot Maximum 32GB Capacity Non-ECC, Un-Buffered Memory |
Video | Intel HD Graphics 610 300 MHz - 900 MHz HDMI: 4096x2304 @ 24Hz DisplayPort: 4096x2304 @ 60Hz |
Storage Technology | 1 x SATA3 6.0Gb/s |
Connectivity | 1 x Intel i219-LM PHY GbE LAN 1 x Intel i211-AT GbE LAN Wireless 802.11n Bluetooth 4.0 |
Expansion Slots | 1 x mSATA/Mini PCI-E slot (Full Sized) 1 x Mini PCI-E (Occupied) 1 x SIM Card Socket |

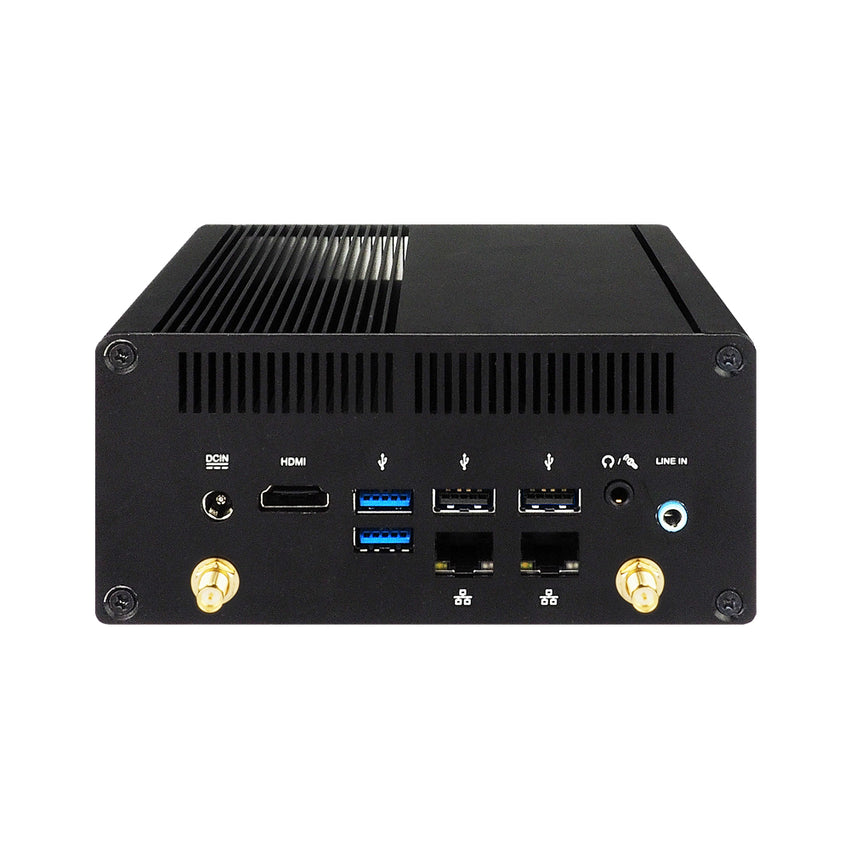

Rear Panel I/O | 1 x DC-IN 2 x Antenna Connector 1 x HDMI 2 x USB 3.0 2 x USB 2.0 2 x RJ45 GbE LAN 1 x Audio Out 1 x Audio In |

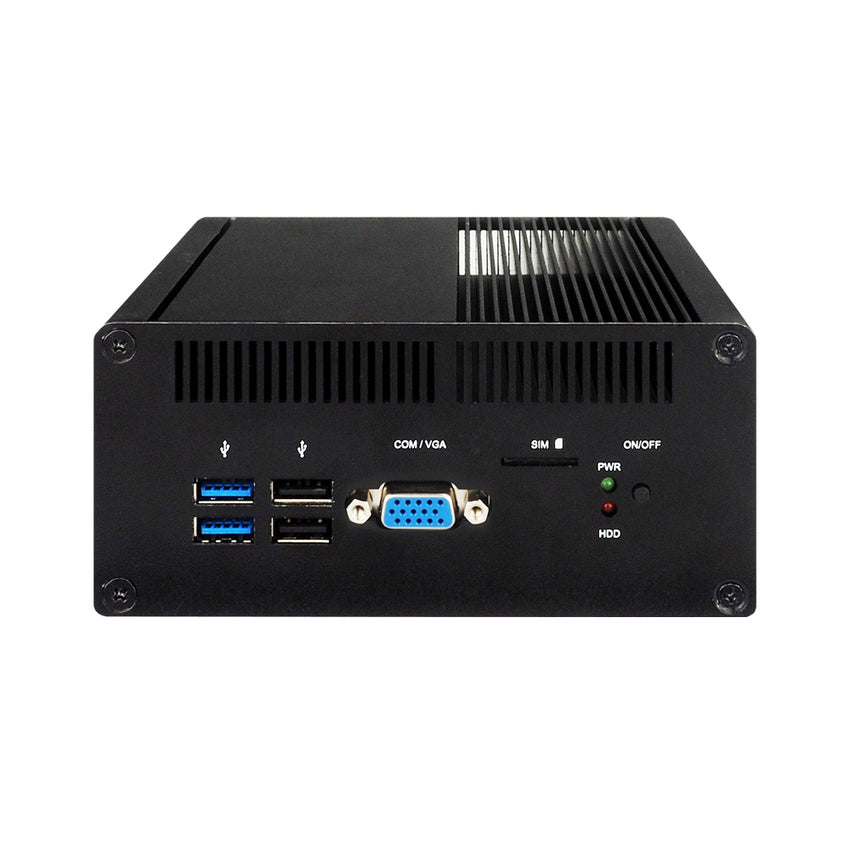

Front Panel I/O | 2 x USB 3.0 2 x USB 2.0 1 x VGA 2 x Status LED (Power, HDD) 1 x Power Button |
Drive Support | 1 x 2.5" HDD/SSD 1 x mSATA/Mini PCI-E slot |
Power Supply | 40W 12V AC-DC Adapter |
Mounting | Wallmount Kit Din Rail |
Case Dimensions | 116.9 x 144 x 65mm 4.6" x 5.7" x 2.6" (in inches) |
Warranty | 1-Year Manufacturer's Limited Warranty |
