| Manufacturer | Jetway |
| Product ID | HBFBZ10-6412-B |
| Model Name | HBFBZ10 |
| CPU |
Intel Celeron J6412 Processor 4 Cores / 4 Treads 2.00 - 2.60 GHz 10W TDP, 1.5 MB L2 Cache |
| Chipset | SoC |
| Memory |
1 x DDR4 SODIMM slot Maximum 16GB Capacity 3200 MHz |
| Video |
Intel UHD Graphics for 10th Gen Intel Processors 400 - 800 MHz HDMI Max Resolution: 4096x2160@60Hz |
| Storage Technology |
M.2 2242 slot: PCI-E 3.0 x2 or SATA (Co-Lay with M.2 B Key) Note: Does not support PCI-E x4 Note: Not available if M.2 3042/3052 slot is in use |
| Connectivity |
4 x Intel i255V 2.5 GbE LAN |
| Expansion Slots |
1 x M.2 3042/3052 slot (USB 3.1 Interface) Note: Not available if M.2 2242 slot is in use 1 x M.2 2230 slot (PCI-E 3.0 x1, USB2.0) 1 x SIM Slot |

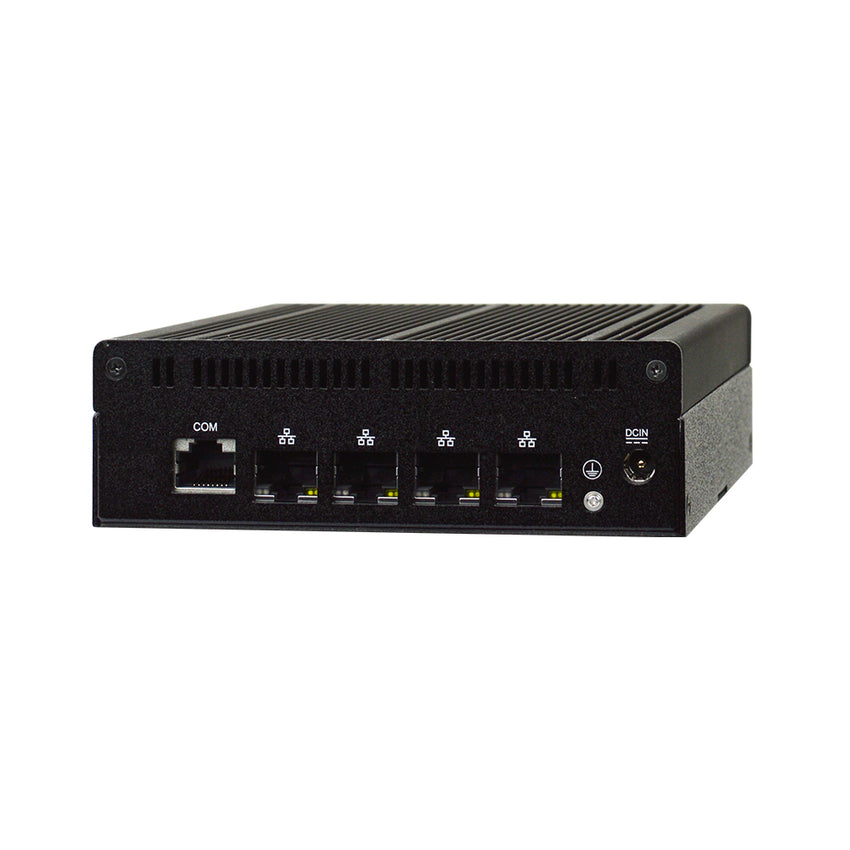

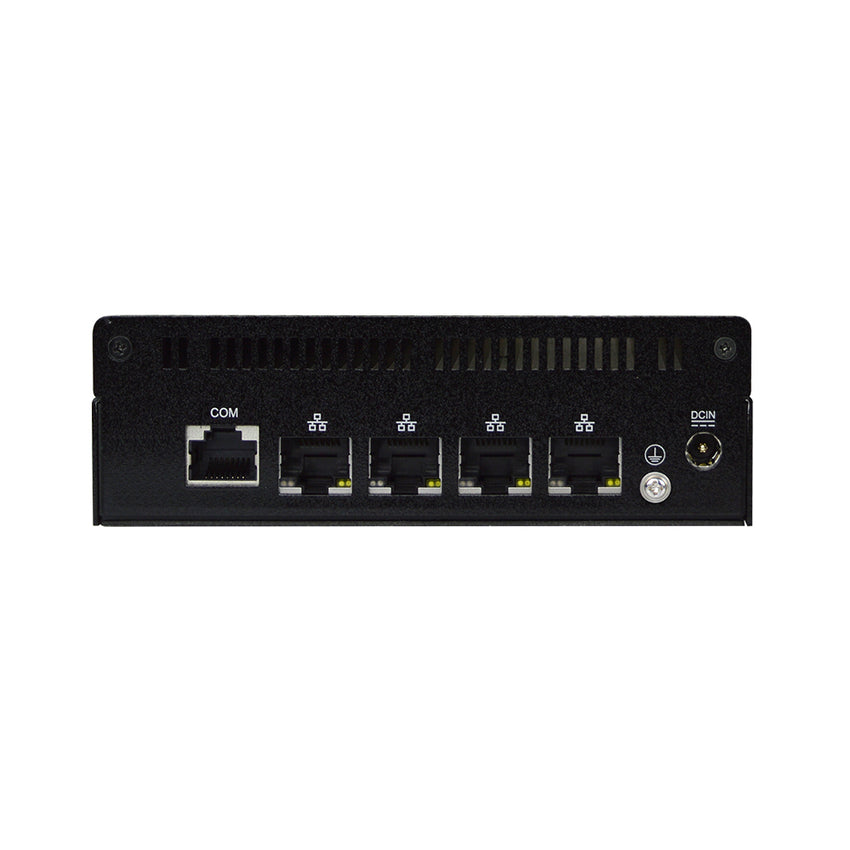

| Rear Panel I/O |
1 x Antenna Cutout 1 x RJ45 COM 4 x RJ45 2.5GbE LAN 1 x GND Screw 1 x 12V DC-IN |

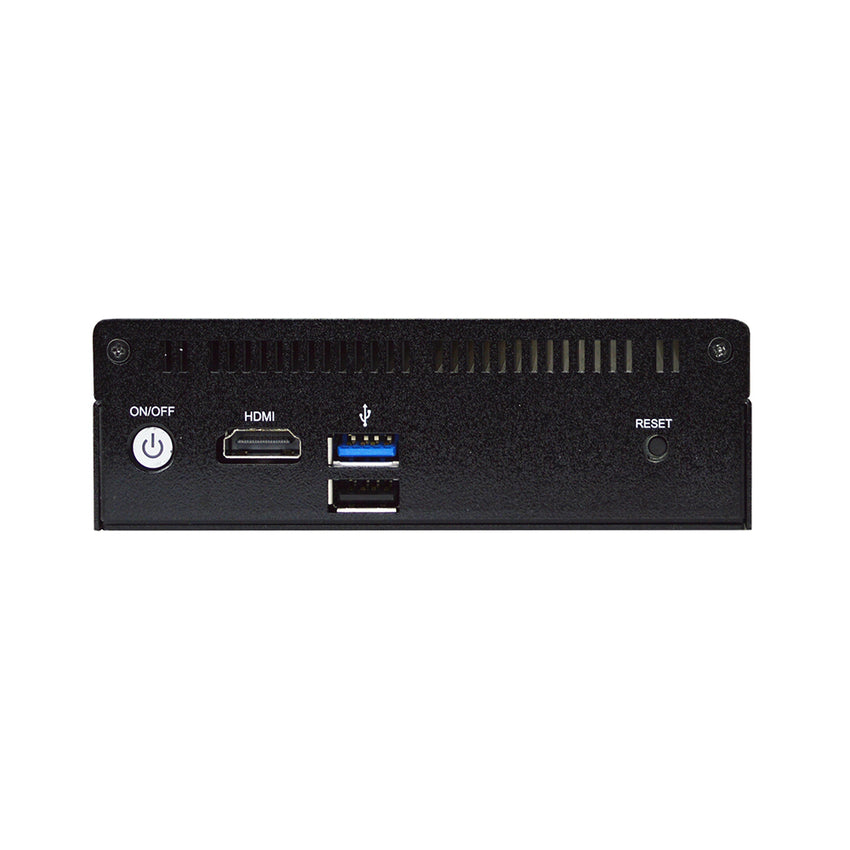

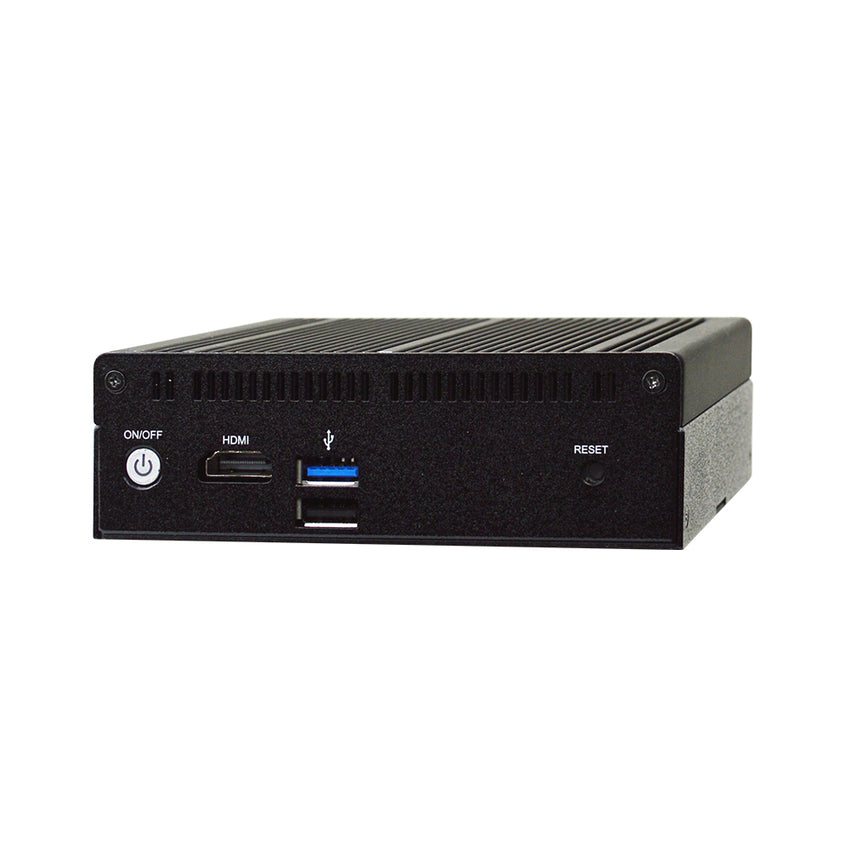

| Front Panel I/O |
1 x Power Button 1 x HDMI 1 x USB 3.1 1 x USB 2.0 1 x Reset Button 1 x Antenna Cutout |
| Drive Support |
1 x M.2 2242 slot (PCI-E 3.0 x2 or SATA) Note: Not available if M.2 3042/3052 slot is in use |
| OS Support |
Windows 10, Windows 11 Linux |
| Power Supply |
12V DC-IN 40W 12V AC-DC Adapter AC Input: 90-240V DC Output: 12V, 3.3A |
| Case Dimensions |
125 x 109 x 39.5mm 4.9" x 4.3" x 1.6" (in inches, approximate) |
| Mounting | VESA Mount |
| Environmental |
Operating Temperature: -20°C to 60°C (-4°F to 140°F) Note: Under the condition of using M.2 SSD Non-operating Temperature: -20°C to 80°C (-4°F to 176°F) Humidity: 40% to 90% (non-condensing) |
| Compliance | CE, FCC, LVD, RoHS, ErP Ready |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: HBFBZ10-6412-B
