Manufacturer	ASUS
Part Number	H610A-IM-A
CPU	Supports Intel 14th/13th/12th Gen Core Processors, Raptor Lake-S Socket LGA 1700 Maximum 125W TDP
Chipset	Intel H610
Memory	2 x DDR4 DIMM slots Maximum 64GB Capacity 3200/2933/2666/2400 MHz
Video	Intel HD Graphics (CPU Dependent) DisplayPort Max Resolution: 3840x2160@60Hz HDMI Max Resolution: 4096x2160@60Hz VGA Max Resolution: 1920x1200@60Hz Supports 3 Displays
Audio	Realtek ALC 897
Storage Technology	4 x SATA Connectors 1 x M.2 2280/2260/2242 slot (PCIe x1/SATA)
Connectivity	1 x Intel I219V GbE LAN 1 x Intel I210AT GbE LAN
Expansion Slots	1 x PCI-E 5.0 x16 slot 1 x PCI-E 3.0 x16 slot (x4 Mode) 1 x PCI-E 3.0 x1 slot 4 x PCI slots
Power	1 x 24-pin ATX Power Connector 2 x 4-pin ATX Power Connector

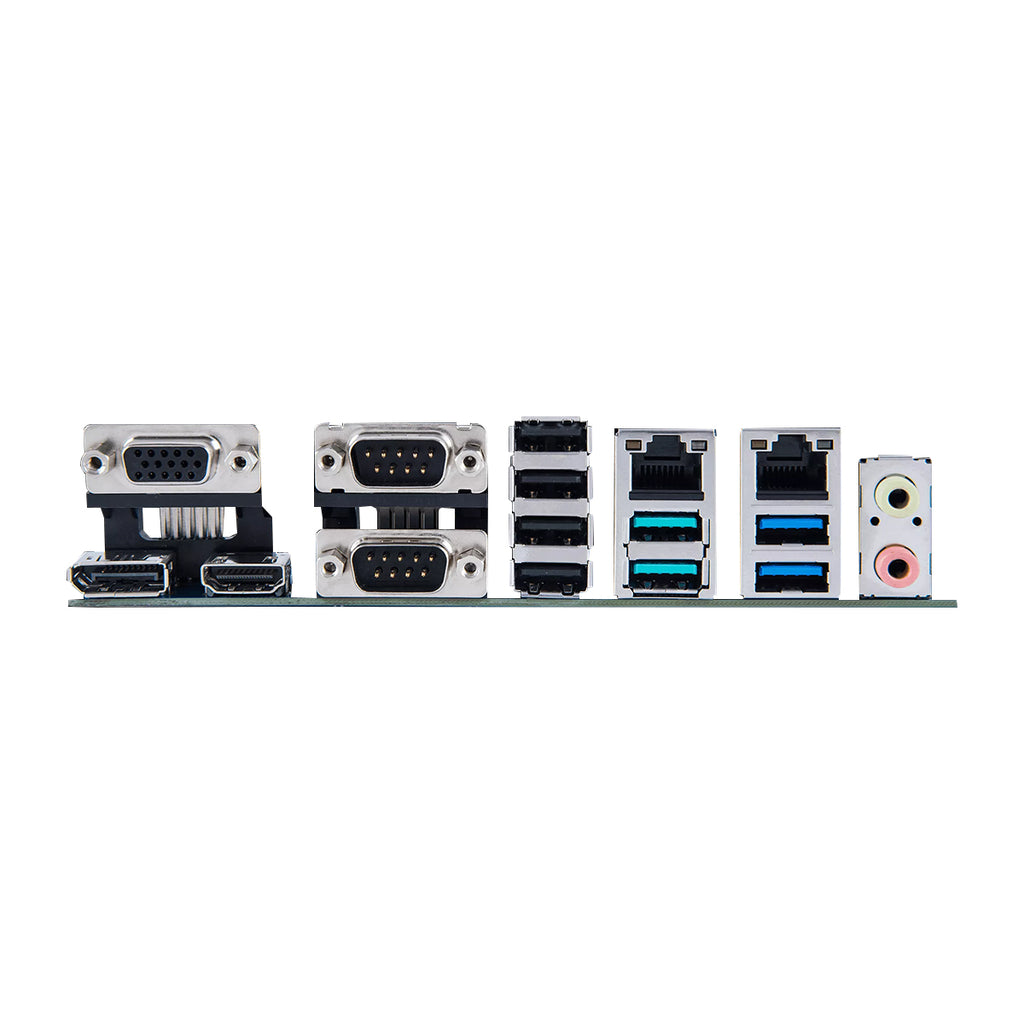

Rear I/O	1 x VGA 1 x DisplayPort 1 x HDMI 2 x COM (RS232/422/485) 4 x USB 2.0 2 x RJ45 GbE LAN 2 x USB 3.2 (Gen2) 2 x USB 3.2 (Gen1) 2 x Audio I/O
Onboard I/O Headers	4 x COM headers (RS232) 1 x USB 2.0 headers (Supports 2 ports) 1 x CPU Fan header 2 x Chassis Fan header 1 x Front Panel Audio header (AAFP) 1 x System Panel header 1 x Chassis Intrusion header 1 x Speaker header 1 x Parallel Connector 1 x I2C header 1 x Clear CMOS header 1 x COM Debug header 1 x Buzzer 1 x PS/2 header 1 x AT/ATX Mode jumper 1 x 8-bit GPIO header
OS Support	Windows 10 (64-Bit) Windows IoT Enterprise Ubuntu RedHat Enterprise Fedora Workstation OpenSUSE
Form Factor	ATX 305 x 244mm 12" x 9.6"
Environmental	Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Storage Humidity: 10% to 95% (non condensing)
Compliance	CE, FCC
Warranty	2-Year Manufacturer's Limited Warranty
