| Manufacturer |
Gigabyte
|
| Product ID |
GB-BRU7-255H
|
| CPU |
Intel Core Ultra 7 255H Processor
2.0 - 5.1 GHz P-Core Frequency
1.5 - 4.4 GHz E-Core Frequency
700 MHz - 2.5 GHz LP E-Core Frequency
6 P-Cores / 8 E-Cores / 2 LP-Cores / 16 Threads
20W Minimum Assured Power
115W Maximum Turbo Power
28W Base Power
24 MB Cache
|
| Chipset |
SoC
|
| Memory |
2 x DDR5 SODIMM/CSO-DIMM slots
Maximum 96GB Capacity
SODIMM Supports up to 5600 MHz
CSO-DIMM Supports up to 6400 MHz
Dual Channel
Note: Intel Arc Graphics Requires using Dual Channel Memory
|
| Video |
Intel Arc 140T GPU
2.25 GHz
74 GPU Peak TOPS (Int8)
8 Xe-Cores
HDMI 2.1 Max Resolution: 4096x2160@60Hz (TMDS, CEC)
USB Type-C DisplayPort 2.1 Max Resolution: 4096x2160@60Hz
|
| Audio |
Realtek ALC245
|
| Storage Technology |
1 x M.2 M Key 2280 slot (PCIe Gen4x4) (PCIe Gen5x4, ready design)
1 x M.2 M Key 2280 slot (PCIe Gen4x4+SATA)
|
| Connectivity |
1 x Intel I226V 2.5GbE LAN
Wi-Fi 7 RTL8922AE
|
| Expansion Slots |
1 x M.2 E Key 2230 slot (Occupied by WIFI Module)
|

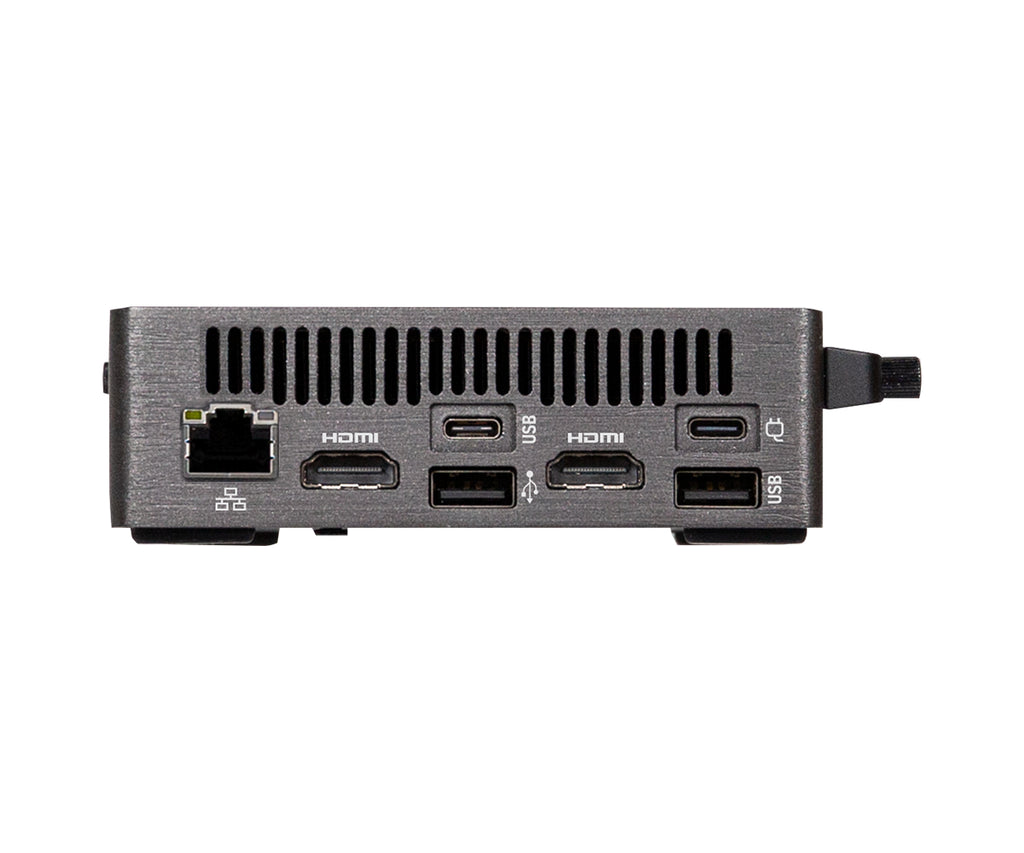

| Rear Panel I/O |
1 x RJ45 2.5GbE LAN
2 x HDMI
1 x USB 4
1 x USB 3.2 (Gen2) Type-A
1 x USB 3.2 (Gen2) Type-C (PD IN)
1 x USB 2.0
|

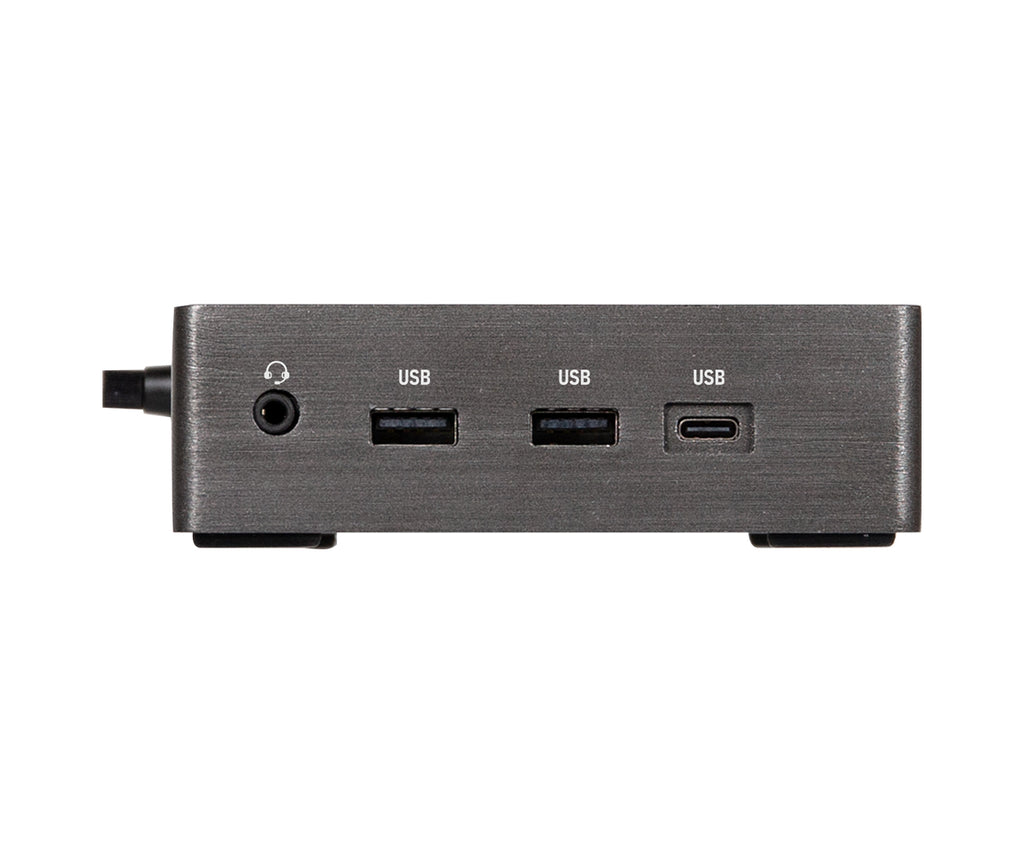

| Front Panel I/O |
1 x 3.5mm Audio I/O
2 x USB 3.2 (Gen2) Type-A
1 x USB 3.2 (Gen2) Type-C (Supports DisplayPort 2.1)
|
| Left Panel I/O |
1 x Kensington Lock Slot
|
| Drive Support |
1 x M.2 M Key 2280 slot (PCIe Gen4x4) (PCIe Gen5x4, ready design)
1 x M.2 M Key 2280 slot (PCIe Gen4x4+SATA)
|
| OS Support |
Windows 11 64-Bit
|
| Power Supply |
100W 20V Power Adapter
Type-C PD IN
|
| Case Dimensions |
112.6 x 34.4 x 119.4mm
4.4" x 4.7" x 1.4" (in inches)
|
| Mounting |
VESA Support 75x75mm and 100x100mm
|
| Environmental |
Operating Temperature: 0°C to 35°C (32°F to 95°F)
Non-Operating Temperature: -20°C to 60°C (-4°F to 140°F)
|
| Warranty |
1-Year Warranty on Parts and Labor
|
