Manufacturer |
Gigabyte |
Product ID |
GB-BRi5-10210 |
CPU |
Intel Core i5-10210U Processor 1.60 - 4.20 GHz 4 Cores / 8 Threads 15W TDP, 6MB SmartCache |
Chipset |
SoC |
Memory |
2 x DDR4 SODIMM slots Supports up to 64GB 2666MHz
|
Video |
Intel UHD Graphics 620 300 MHz - 1.15 GHz 32G Graphics Video Max Memory HDMI Max Resolution: 3840x2160@60Hz
|
Audio |
Realtek ALC255 HD Audio |
Storage Technology |
1 x SATA3 6Gbs/s Connector
|
Connectivity |
1 x Realtek RTL8111HS GbE LAN Intel Dual band Wireless AC 3168 |
Expansion Slots |
1 x M.2 2230 slot (occupied by WIFI) |

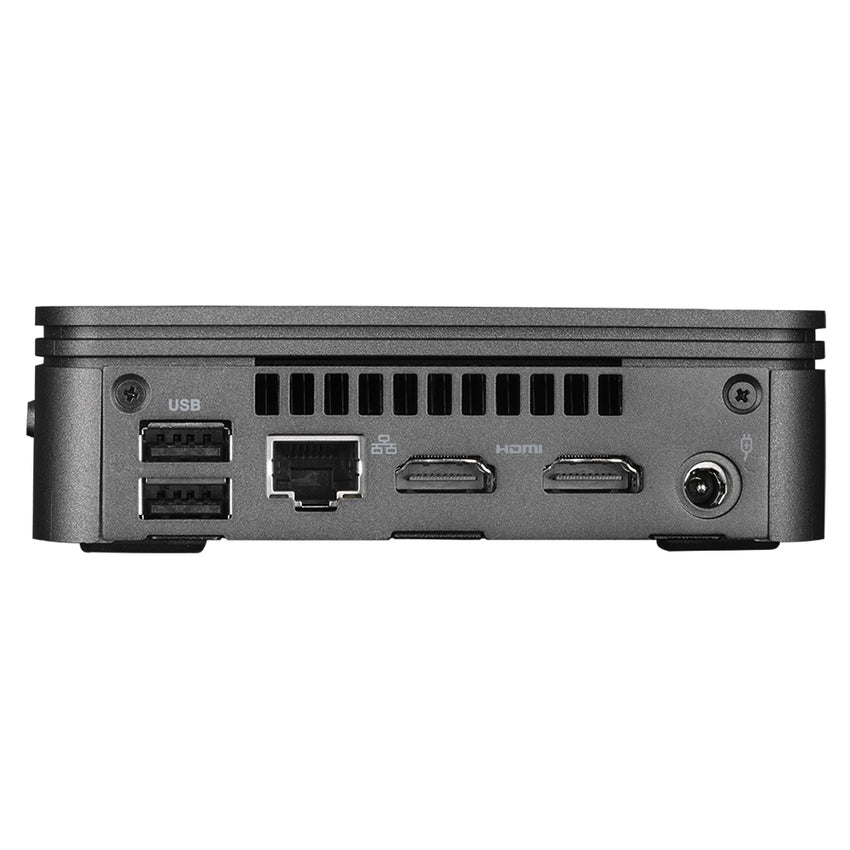

Rear Panel I/O |
2 x USB 3.2 Gen2 1 x RJ45 GbE LAN 2 x HDMI 1 x DC-IN |

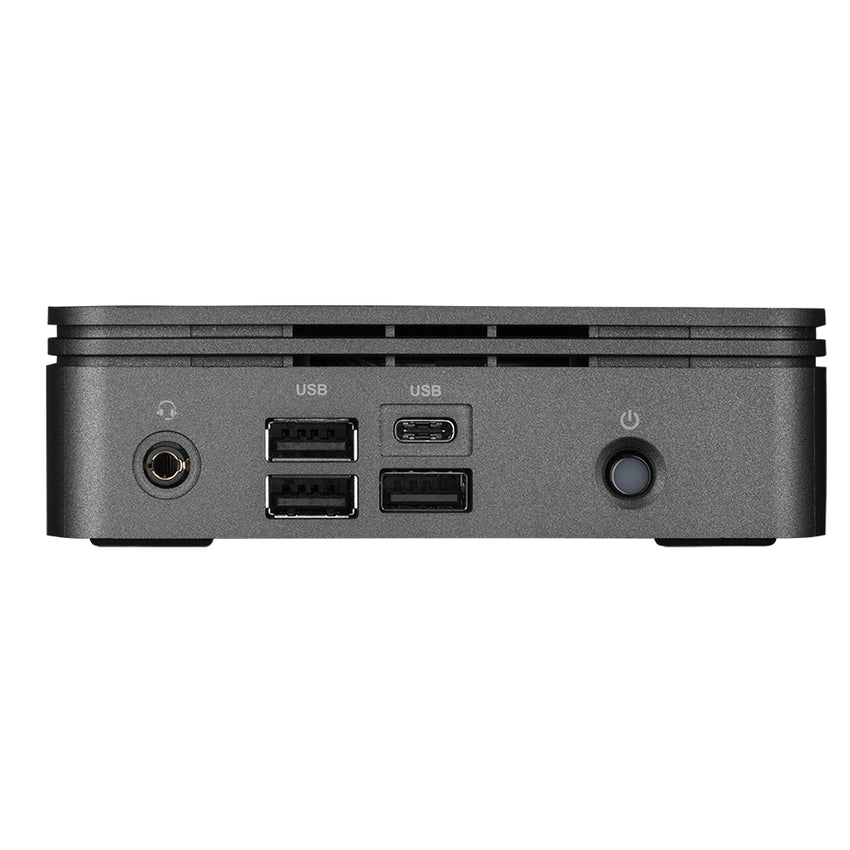

Front Panel I/O |
1 x Audio I/O 3 x USB 3.2 Gen2 1 x USB 3.2 Gen2 Type-C 1 x Power Button
|
Side Panel I/O |
1 x RS232 COM Port 1 x Kensingon Lock slot
|
Drive Support |
1 x M.2 2280 slot (PCI-E x4 or SATA) Intel Optane Ready |
Power Supply |
135W Power Supply 100-240V AC, 19V, 7.1A
|
Case Dimensions |
34.7 x 119.5 x 119.5mm 1.37" x 4.7" x 4.7" (in inches) |
Mounting |
Vesa Mount: 75x75mm and 100x100mm |
Environmental |
Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-operating Temperature: -20°C to 60°C (-4°F to 140°F) |
Warranty |
1-Year Manufacturer's Limited Warranty |
