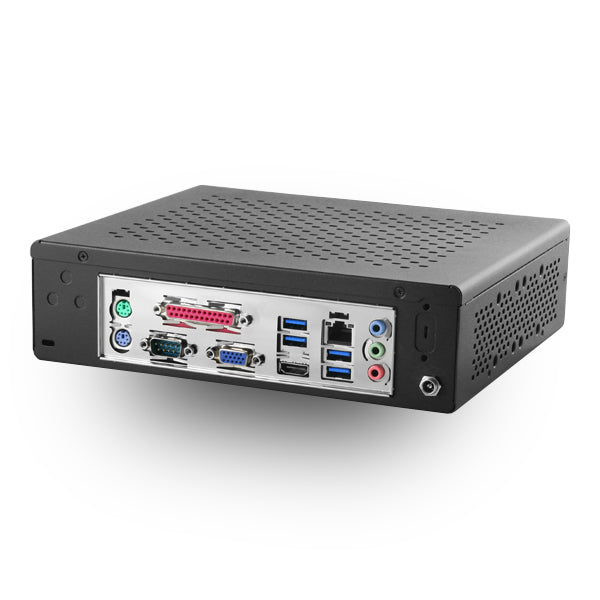

MITXPC Intel Braswell Celeron N3160 Fanless Quad Core 1.6GHz Fanless Mini Barebone PC |
Model Number |
EKMPD14DMX500 |
Motherboard |
Mitac PD14RI-D |
CPU |
Intel Celeron N3160 1.6 - 2.24 GHz Quad Core 4 Cores / 4 Threads 6W TDP, 2MB Cache, 64-bit |
Chipset |
SoC |
Memory |
2 x 204-pin DDR3L SODIMM Maximum 8GB capacity Dual Channel Support 1333MHz Minimum Low Voltage 1.35V Required |
Video |
Intel HD Graphics 320 - 640 MHz Supports Dual Display |
Audio |
Realtek ALC662 HD Audio 5.1 Channel S/PDIF Out |
Storage |
2 x SATA3 6Gb/s |
Connectivity |
1 x Realtek RTL8111G GbE LAN 10/100/1000 |
Expansion Slots |
1 x PCI-E x1 (2.0) [Inaccessible] |

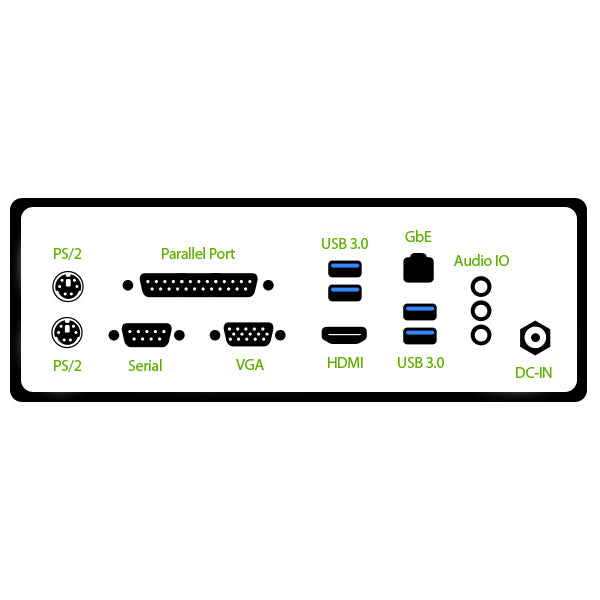

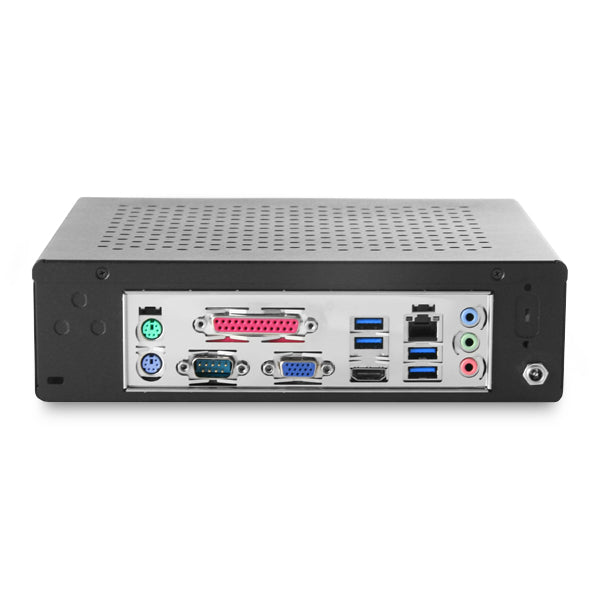

Rear Panel I/O |
2 x PS/2 1 x Parallel Port 1 x COM Port 1 x VGA 4 x USB 3.0 1 x HDMI 1 x RJ45 3 x Audio IO |
Front Panel I/O |
1 x Power Button with LED 2 x USB 2.0 |
Drive Support |
2 x 2.5" SATA Drive |
Power Supply |

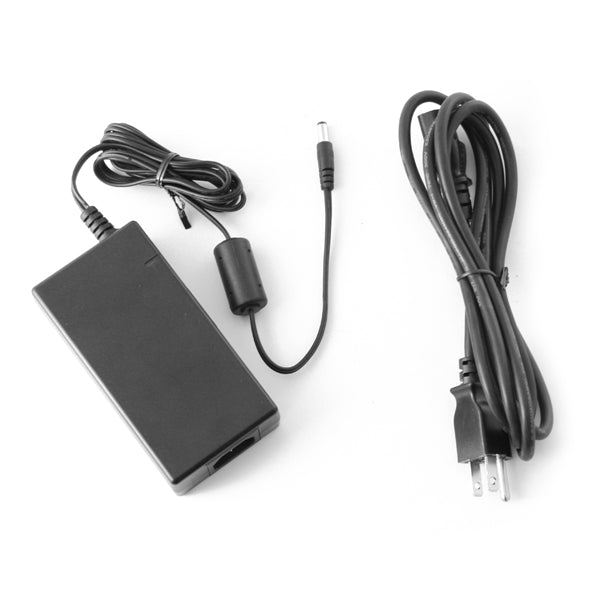

80W 12V DC-DC Power Board 60W 12V Efficiency Level VI AC-DC Adapter |
Case Dimensions |
228.4mm x 194.4mm x 61.8mm 9" x 7.7" x 2.5" |
Case Cooling |
2 40mm x 40mm x 10mm |

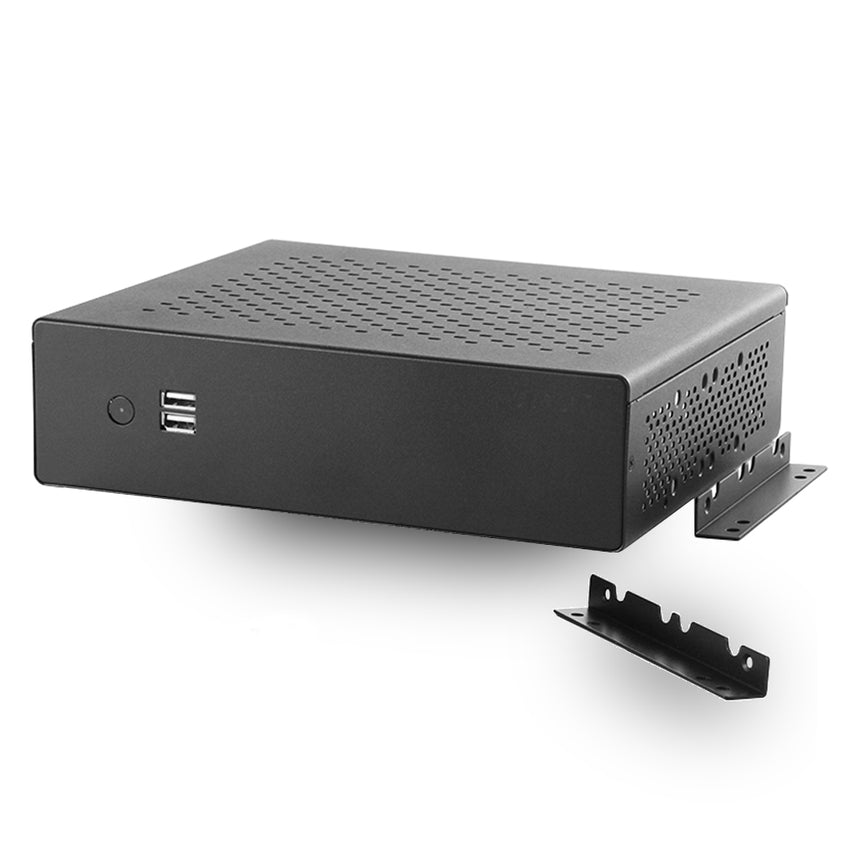

Mounting |
Wallmount Bracket Optional VESA Mounting Bracket |
Warranty |
1-Year Warranty on Parts and Labor |
