| Manufacturer | ASRock Rack |
| Product ID | EC266D2I-2T/AQC |
| CPU | Supports Intel Xeon E-2400 Series Supports Intel Pentium Gold G7400/G7400T Processors Socket LGA1700 95W TDP |
| Chipset | Intel C266 |
| Memory | 2 x DDR5 DIMM slots Supports ECC UDIMM Maximum 64GB Capacity 4800 MHz |
| Video | ASPEED AST2600 |
| Storage Technology | 2 x OCuLink or 8 x SATA Supports RAID 0/1/5/10 |
| Connectivity | 2 x Marvell AQC113 10G LAN 1 x Realtek RTL8211F GbE Dedicated IPMI |
| Expansion Slots | 1 x PCI-E 5.0 x16 slot |
| Power | 1 x 4-Pin Micro Fit ATX Connector (with 24-Pin adapter cable) 1 x 8-Pin ATX 12V Connector |

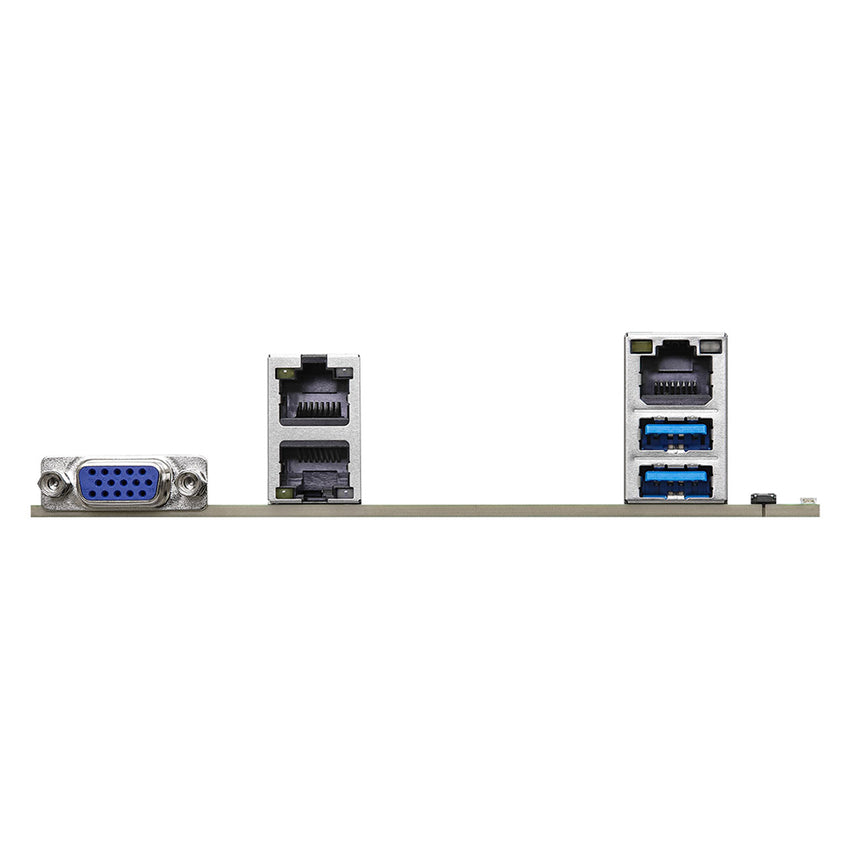

| Rear Panel I/O | 1 x VGA 2 x RJ45 10G LAN 1 x RJ45 Dedicated IPMI 2 x USB 3.2 (Gen1) 1 x UID Button 1 x UID LED |
| Onboard I/O Headers | 1 x 9-Pin Auxiliary Panel header (Chassis Intrusion, System Fault LED, LAN LED) 1 x COM header 3 x 4-Pin Fan header 1 x Thermal Sensor header 1 x 13-Pin SPI TPM header 1 x SGPIO header 1 x SMBus header 1 x PMBus header 1 x IPMB header 1 x Clear CMOS Contact Pads 1 x 9-Pin NCSI header 1 x USB 3.2 (Gen1) header (Supports 2 ports) |
| Form Factor | Mini ITX 6.7" x 6.7" (in inches) 170 x 170mm |
| OS Support | Microsoft Windows Server 2022 RHEL 8.5 / 8.7 / 9.2 CentOS 8.5 SUSE Enterprise Linux Server 15 SP3 / 15 SP5 Ubuntu 20.10 / 21.04 / 22.04.2 / 23.04 |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Humidity: 20% to 90% (Non Condensing) |
| Warranty | 1-Year Manufacturer's Limited Warranty |
PRODUCT ID: EC266D2I-2T/AQC
