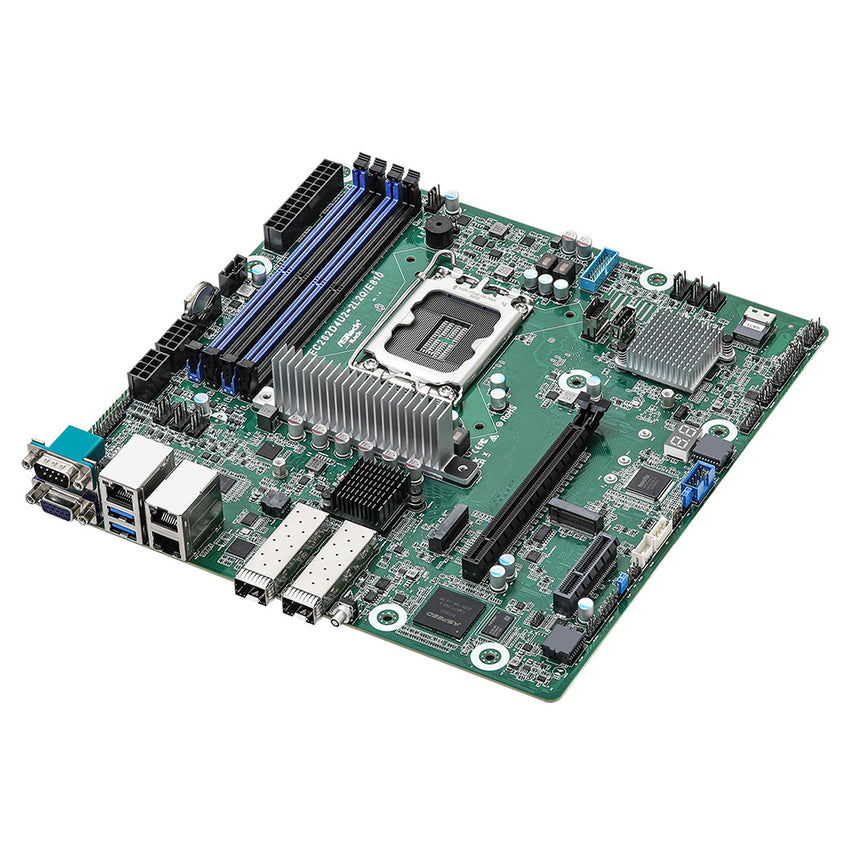

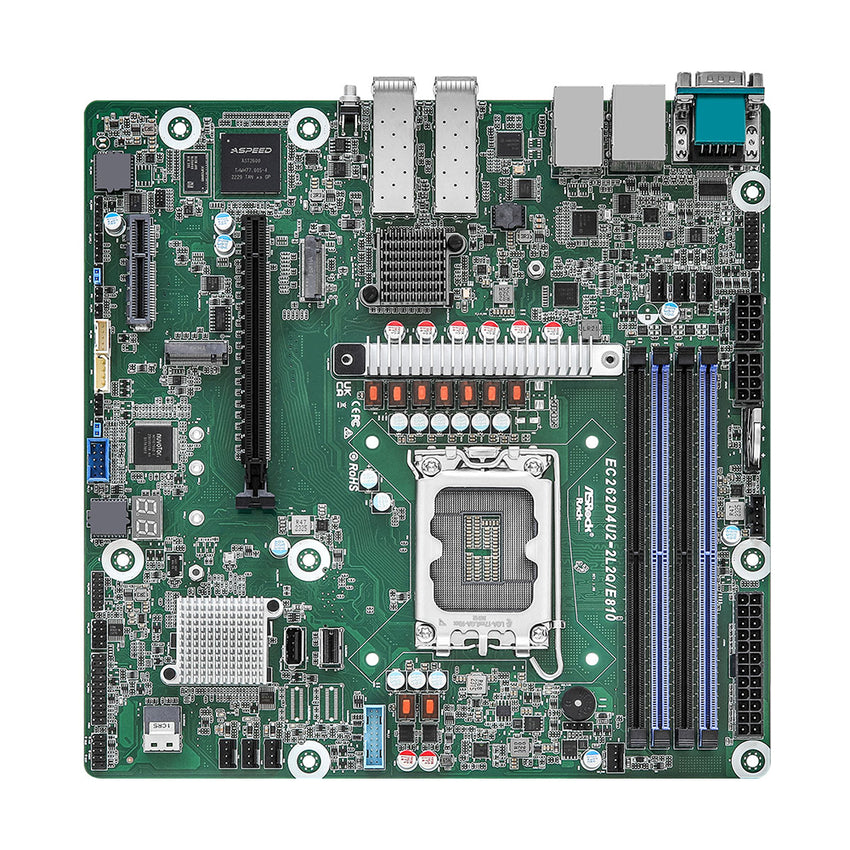

| Manufacturer | ASRock Rack |
| Product ID | EC262D4U2-2L2Q/E810 |
| CPU |
Supports Intel Xeon E-2400 Series Supports Intel Pentium Gold G7400/G7400T Processors Socket LGA1700 95W TDP |
| Chipset | Intel C262 |
| Memory |
4 x DDR5 DIMM slots Supports ECC UDIMM Maximum 128GB Capacity 4400/4000/3600 MHz |
| Video | ASPEED AST2600 |
| Storage Technology |
1 x SlimSAS (PCI-E 4.0 x4) 1 x SlimSAS (PCI-E 3.0 x4 or 4 x SATA) Supports RAID 0/1/5/10) 1 x M.2 2280/2260/2242/2230 slot (PCI-E 4.0 x4 or SATA) |
| Connectivity |
2 x Intel E810-XXVAM2 25GbE LAN 2 x Intel I210 GbE LAN 1 x Realtek RTL8211F GbE LAN |
| Expansion Slots |
1 x PCI-E 5.0 x16 slot 1 x PCI-E 4.0 x4 slot |
| Power |
1 x 24-Pin ATX Power Connector 2 x 8-Pin 12V ATX Power Connector |

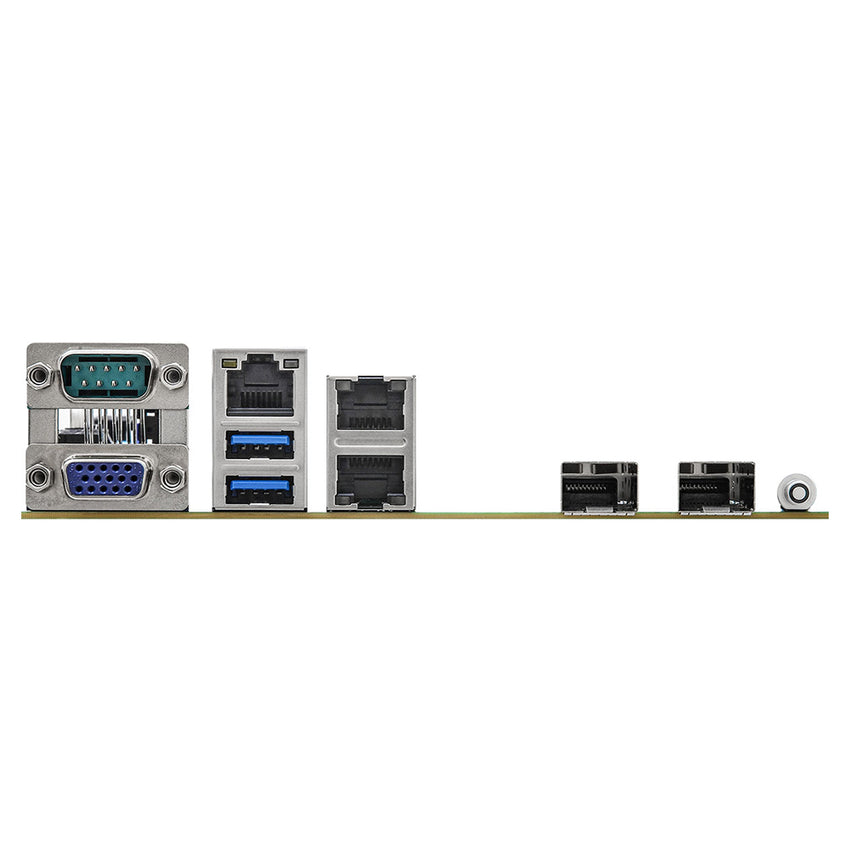

| Rear Panel I/O |
1 x COM 1 x VGA 1 x RJ45 Dedicated IPMI 2 x USB 3.2 (Gen1) 2 x RJ45 GbE LAN 2 x SFP28 25GbE LAN 1 x UID Button with LED |
| Onboard I/O Headers |
1 x 18-pin Auxiliary Panel header (Chassis Intrusion, System Fault LED, LAN, Locate, SMBus) 1 x 4-pin Speaker header 1 x Buzzer 7 x 4-pin Fan header 1 x Thermal Sensor header 1 x 13-pin SPI TPM header 1 x SGPIO header 1 x SMBus header 1 x PMBus header 1 x IPMB header 1 x Clear CMOS Contact Pads 1 x USB 3.2 (Gen1) header (Supports up to 2 ports ) 1 x USB 2.0 header (Supports up to 2 ports) 1 x Vertical USB 2.0 Type-A 1 x NMI header |
| Form Factor |
Micro ATX 9.6" x 9.6" (in inches) 244 x 244mm |
| OS Support |
Microsoft Windows Server 2022 Azure Stack HCI RHEL 8.5 SLES 15 SP3 Ubuntu 21.04 LTS VMware ESXi 8.0 u1 Linux KVM (Linux OSes) Hyper-V |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Humidity: 20% to 90% (Non Condensing) |
| Warranty | 1-Year Manufacturer's Limited Warranty |
PRODUCT ID: EC262D4U2-2L2Q/E810
