| Manufacturer | Mitac |
| Product ID | E600 |
| CPU | Supports Intel Coffee Lake 8th/9th Gen Core Processors Socket LGA 1151 Max 35W TDP |
| Chipset | Intel H310 |
| Memory | 2 x DDR4 SODIMM slots 2666 MHz Maximum 32GB Capacity Non-ECC, Unbuffered |
| Video | Intel HD Graphics (CPU Dependent) HDMI Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 4096x2304@60Hz VGA Max Resolution: 1920x1200@60Hz Supports Dual Displays |
| Audio | Realtek ALC662 |
| Storage Technology | 3 x SATA3 6.0 GB/s Ports M.2 2260/2280 slot: PCI-E 3.0 x2 or SATA |
| Connectivity | 1 x Intel I219-LM GbE LAN 1 x Intel I210-AT GbE LAN |
| Expansion Slots | 1 x M.2 2230 slot (E Key, PCIe, USB 2.0) |

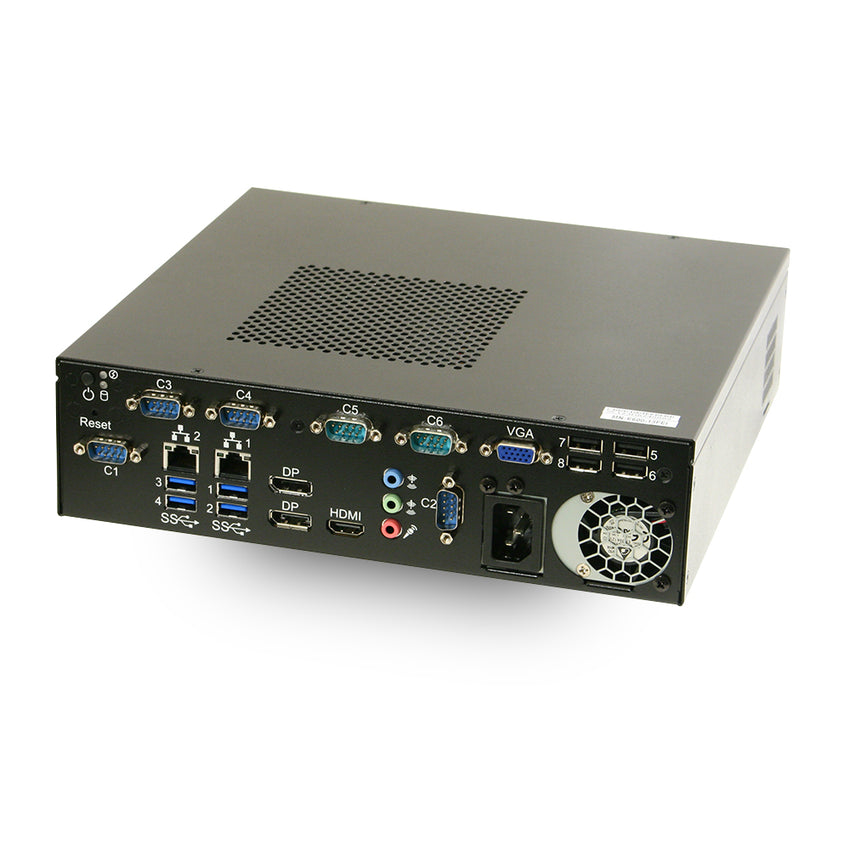

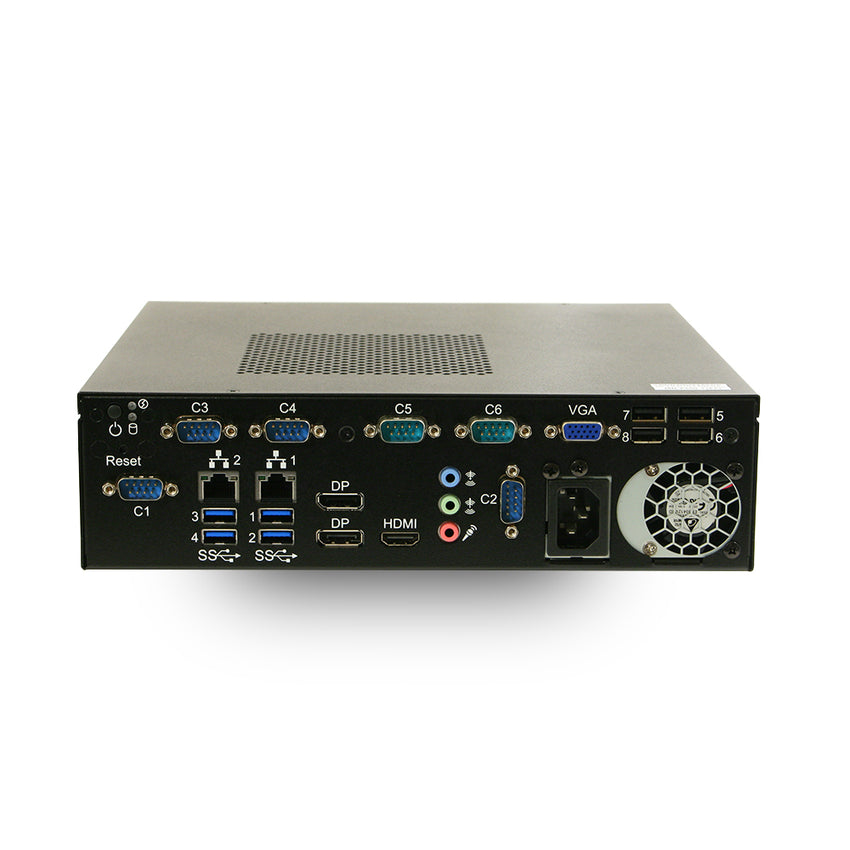

| Rear Panel I/O | 1 x Power Button 2 x Status LED 1 x Reset Button 2 x Serial COM (RS232/422/485) 4 x Serial COM (RS232) 2 x RJ45 GbE LAN 4 x USB 3.0 2 x DisplayPort 1 x HDMI 3 x Audio I/O 1 x VGA 1 x AC-IN 4 x USB 2.0 |
| Drive Support | 1 x 2.5" Drive Bay 1 x M.2 2260/2280 slot (M Key, PCI-E 3.0 x2 or SATA) |
| Cooling | 1 x CPU Cooler |
| Power Supply | Built In 250W Power Supply 100-240V AC-IN |
| Case Dimensions | 265 x 250 x 71.2mm 10.4" x 9.8" x 2.8" (in inches) |
| Mounting | N/A |
| Environmental | Operating Temperature: 0°C to 45°C (32°F to 113°F) Operating Humidity: 10% to 95% R/H (non-condensing) |
| Compliance | CE / FCC Class A |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: E600
