Manufacturer | ASUS |
Product ID | E500 G5-WOCPU072Z |
CPU | Supports Intel Xeon E-2200 Processors Supports Intel 9th Gen Core Processors Supports Intel 9th Gen Pentium/Celeron Processors Socket LGA1151 |
Chipset | Intel C246 |
Memory | 4 x DDR4 DIMM slots Maximum 128GB Capacity 2666/2400 MHz Xeon E Series Processors supports ECC/Non-ECC UDIMM Core/Pentium/Celeron Series Processors Support Non-ECC UDIMM |
Video | Intel HD Graphics (CPU Dependent) Supports Triple Displays DVI-D Max Resolution: 1920x1200@60Hz HDMI Max Resolution: 4096x2160@24Hz DisplayPort Max Resolution: 4096x2304@60Hz VGA Max Resolution: 1920x1200@60Hz |
Audio | Realtek ALC887 HD Audio Codec 8-Channel |
Storage Technology | 8 x SATA 6Gb/s ports 1 x M.2 2280/2260/2242 slot (PCI-E 3.0 x2 or SATA mode) Note: M.2 shared with a SATA port if using SATA mode 1 x M.2 22110/2280/2260/2242 slot (PCI-E 3.0 x4) 4 x SATA 6.0 Gb/s ports shared with PCIEX16_4 Intel RST (Windows & Linux) Supports Software RAID 0, 1, 10 & 5 Supports Intel Optane Memory |
Connectivity | 1 x Intel i211-AT GbE LAN 1 x Intel i219-LM GbE LAN Supports Teaming Function |
Expansion Slots | 2 x PCI-E 3.0 x1 (x1 link) 1 x PCI-E 3.0 x16 (x16 link) or 2 x PCI-E 3.0 x16 slot (x8/x8 link) 1 x PCI-E 3.0 x16 (x16 link) 1 x PCI-E 3.0 x16 (x4 link) shared with SATA |

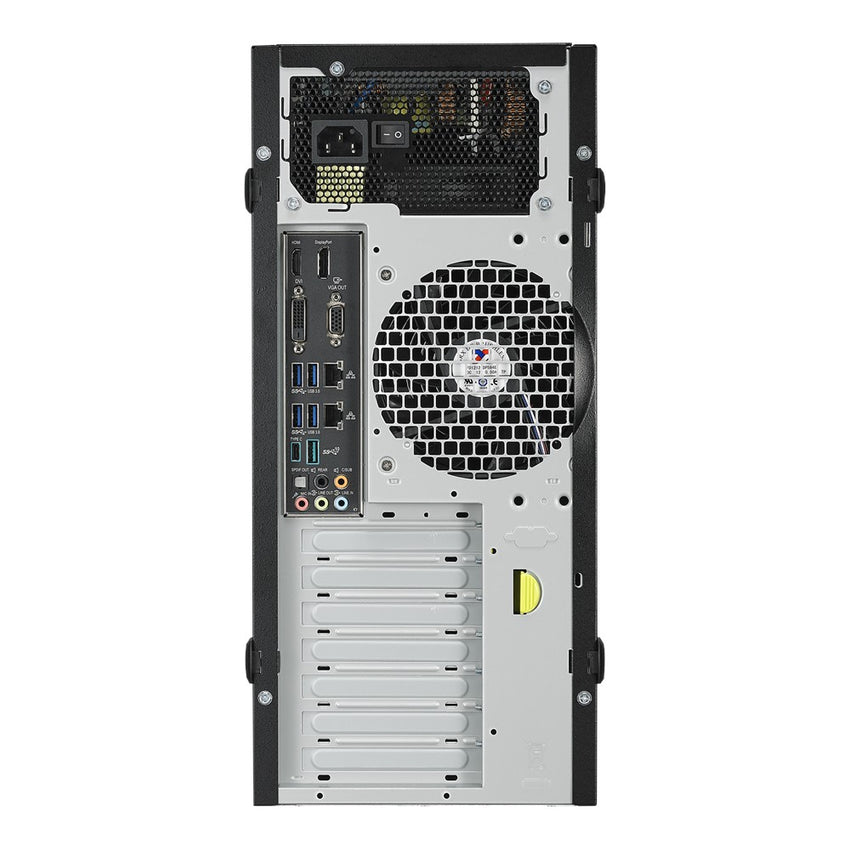

Rear Panel I/O | 1 x DisplayPort 1 x HDMI 1 x VGA 1 x DVI-D 2 x RJ45 GbE LAN 4 x USB 3.2 (Gen1) Ports 1 x USB 3.2 (Gen1) Port Type-A 1 x USB 3.2 (Gen1) Port Type-C 5 x Audio I/O 1 x Optical S/PDIF |

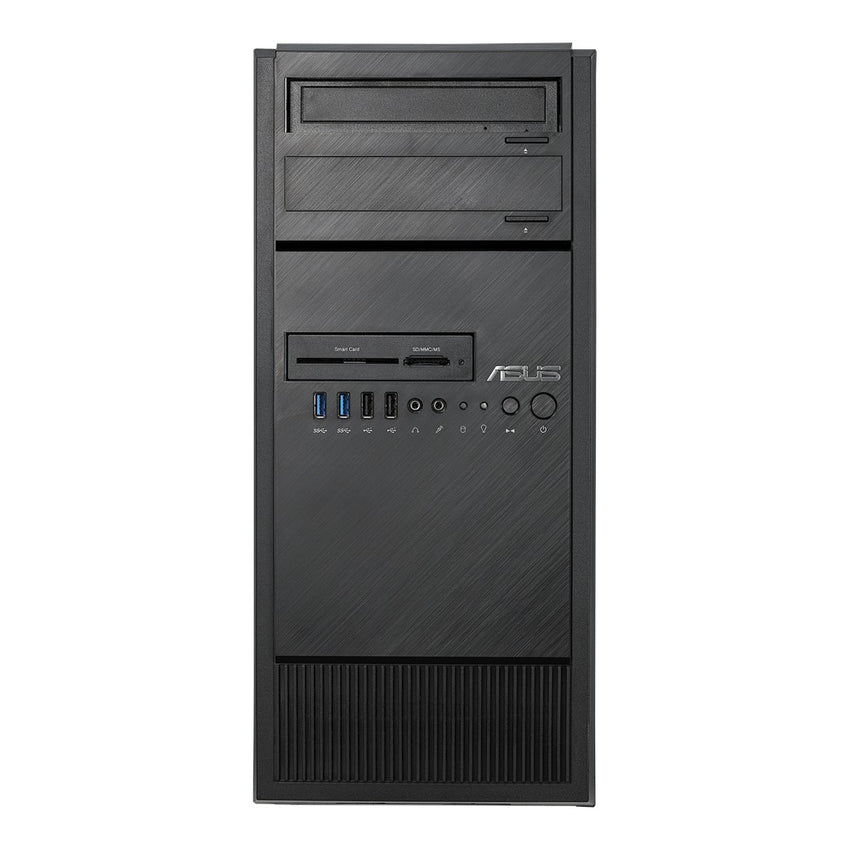

Front Panel I/O | 2 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports 2 x Audio I/O 2 x Status LED (HDD, Power) 1 x Reset Switch 1 x Power Switch |
Drive Support | 3 x 3.5" Drive Bays 1 x 2.5" Drive Bay 1 x M.2 2280/2260/2242 slot (shared with SATA if in SATA mode) 1 x M.2 22110/2280/2260/2242 slot (PCI-E 3.0 x4) |
Cooling | 1 x 80mm Rear Chassis Fan |
Power Supply | 700W 80 PLUS Gold Power Supply 100-240Vac, 10-5A, 50/60Hz, Class I |
Case Dimensions | 423 x 190 x 435mm 16.65" x 7.48" x 17.13" (in inches) |
Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Humidty: 20% to 95% (non-condensing) |
Warranty | 1-Year Warranty on Parts and Labor |
