Manufacturer | Mitac |
Product ID | E430 |
CPU |
Supports Intel 15th Gen Core Ultra Processors, Arrow Lake-S Socket 1851 Max TDP 35W |
Chipset | Intel H810 |
Memory |
2 x DDR5 SODIMM slots Maximum 96GB Capacity 6400 MHz |
Video |
Intel Graphics (CPU Dependent) HDMI Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 4096x2304@60Hz LVDS Max Resolution: 1920x1200@60Hz |
Audio | Realtek ALC888S |
Storage Technology |
2 x SATA Connector 1 x M.2 2280 slot (M Key, PCIe 4.0 x4/SATA) 1 x M.2 2242/30/42/3052 slot (B Key, USB 2.0/PCIe x1/SATA) |
Connectivity |
1 x Intel I219-LM GbE LAN 1 x Intel I226V 2.5GbE LAN |
Expansion Slots |
1 x M.2 2242/30/42/3052 slot (B Key, USB 2.0/PCIe x1/SATA) 1 x Nano SIM Slot (Connected to M.2 B Key) 1 x M.2 2230 slot (E Key, CNVi/PCIe x1/USB 2.0) |

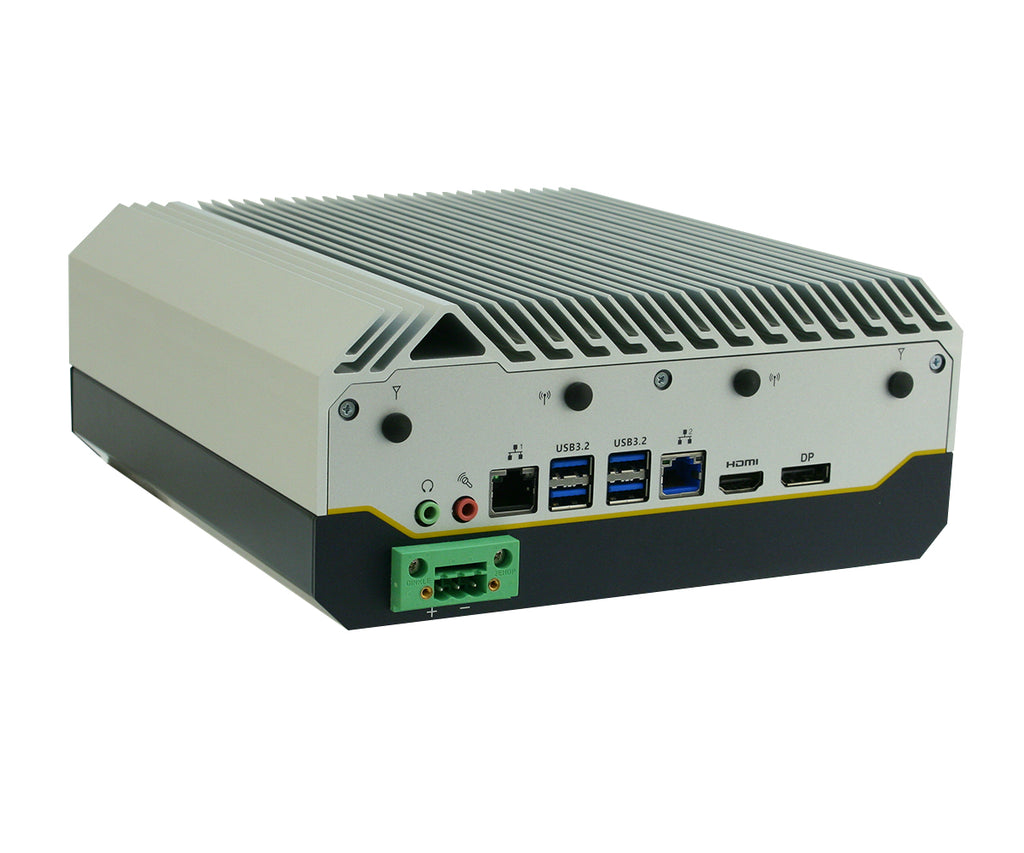

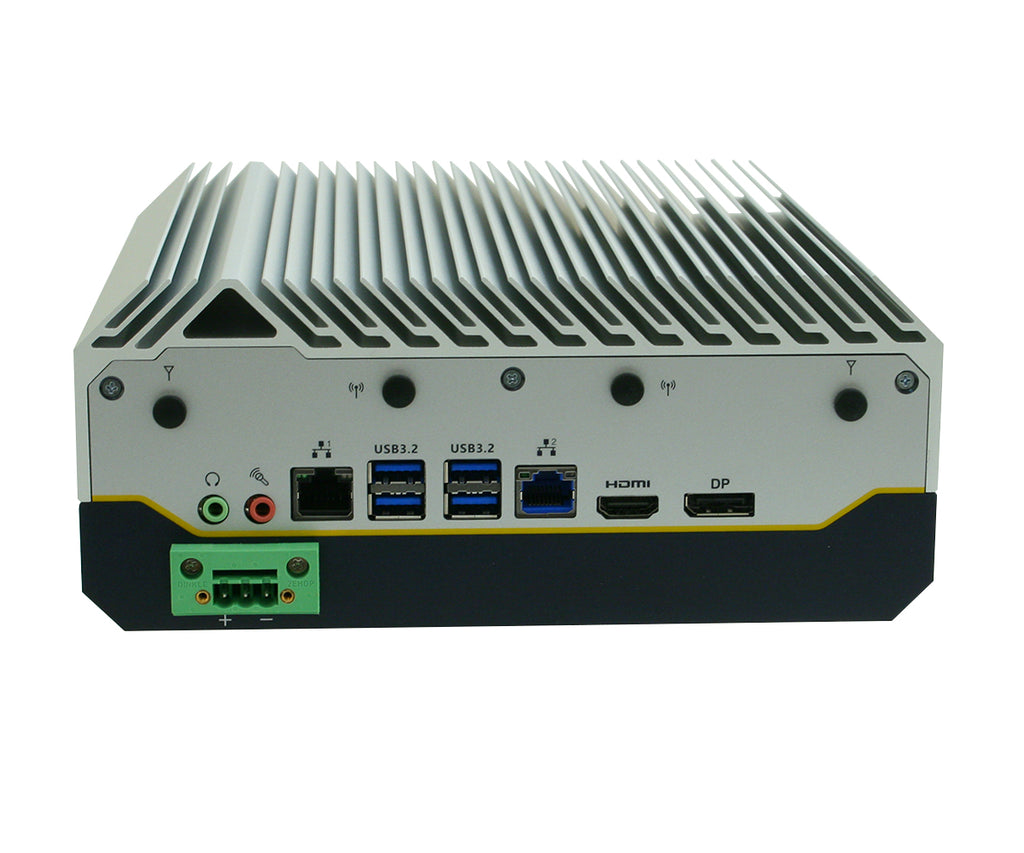

Rear Panel I/O |
1 x 12-26V DC-IN 3-Pin Terminal Block 2 x Audio I/O 1 x RJ45 GbE LAN 2 x USB 3.2 (Gen2) 2 x USB 3.2 (Gen1) 1 x RJ45 2.5G LAN 1 x HDMI 1 x DisplayPort 4 x Antenna/SMA Cutout Holes with rubber cap |

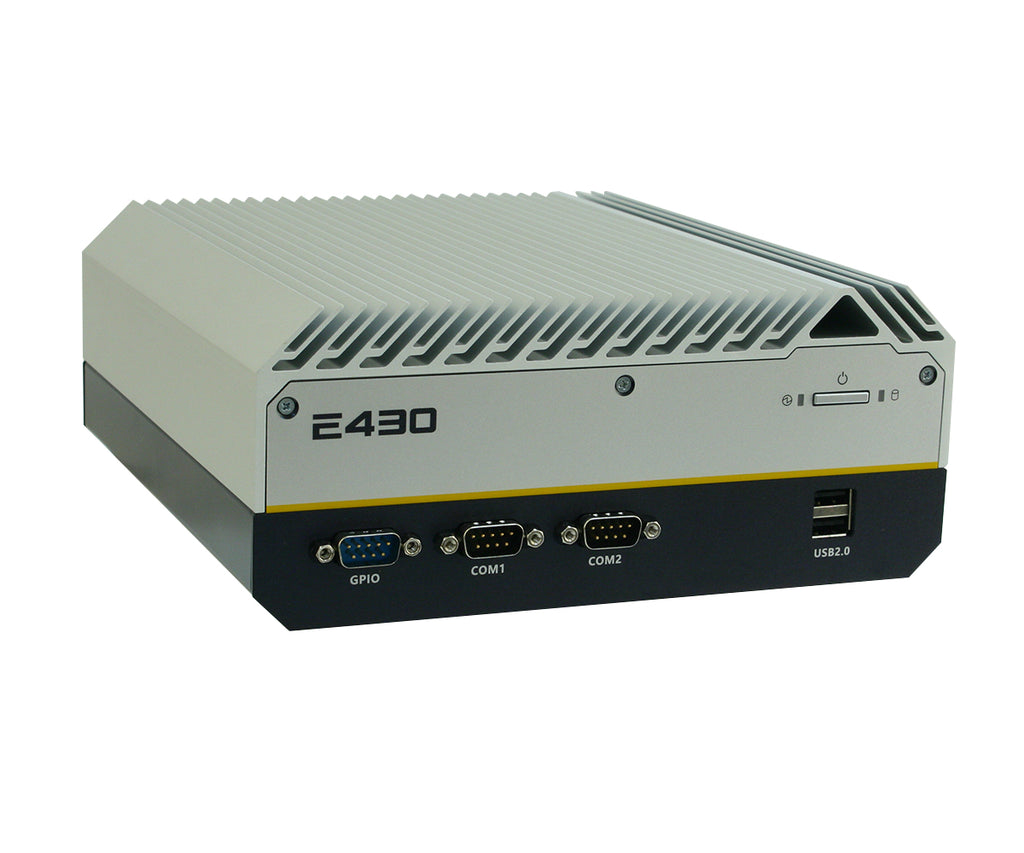

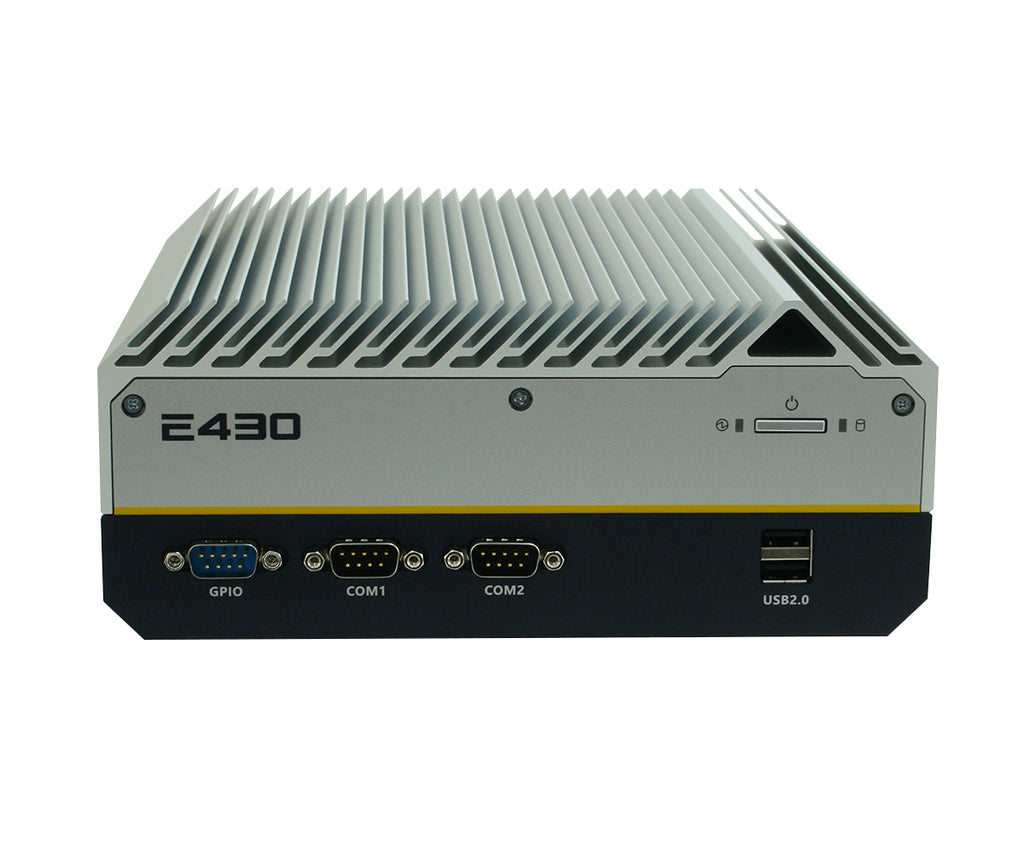

Front Panel I/O |
1 x 8-bit GPIO (DB9 Connector) 1 x COM (RS232) 1 x COM (RS232/422/485) 1 x Power Button 2 x Status LED (Power, HDD) |
Drive Support |
1 x 2.5" SATA Drive Bay 1 x M.2 2280 slot (M Key, PCIe 4.0 x4/SATA) 1 x M.2 2242/30/42/3052 slot (B Key, USB 2.0/PCIe x1/SATA) Note: B Key does not support NVMe |
OS Support |
Windows 10 64-bit Windows 11 64-bit Ubuntu 24.04 Linux (Support by request) |
Power Supply |
12-26V DC-IN 3-Pin Terminal Block Connector 120W 24V AC Adapter with Terminal Block Connector |
Mounting |
Includes Wallmount Brackets |
Case Dimensions |
209 x 209 x 87mm 8.23" x 8.23" x 3.43" (in inches) |
Environmental |
Operating Temperature: -20°C to 50°C (-4°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 95% R/H (non-condensing) Operating Random Vibration: PSD (0.25 - GRMS) minimum /axis, 3 axes - Test up to 0.50 GRMS/axis Non-operating Random Vibration: 3 axes, 15 min per axis, 2.09Grms |
Compliance | CE / FCC Class B |
Warranty | 1-Year Warranty on Parts and Labor |
