Manufacturer	Mitac
Product ID	E420
CPU	Supports Intel 12th Gen Core Processors, LGA1200 Supports Maximum 35W TDP
Chipset	Intel H610
Memory	2 x DDR5 SODIMM Slots Maximum 64GB Capacity 4800 MHz Non-ECC, Unbuffered Only
Video	Intel HD Graphics (CPU Dependent) HDMI Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 4096x2304@60Hz Supports 2 Displays
Audio	Realtek ALC888S HD Audio
Storage Technology	1 x SATA3 6Gb/s Ports 1 x M.2 2280 slot (PCIe 3.0 x4 or SATA, M Key)
Connectivity	1 x Intel I219-LM GbE LAN 1 x Intel I225V 2.5GbE LAN
Expansion Slots	1 x PCI-E 3.0 x16 slot (inaccessible) 1 x M.2 3042 slot (B Key, USB 2.0, PCIe 3.0 x1, SATA)  1 x M.2 2230 slot (PCIe x1, USB 2.0, SMBus, CNVi)

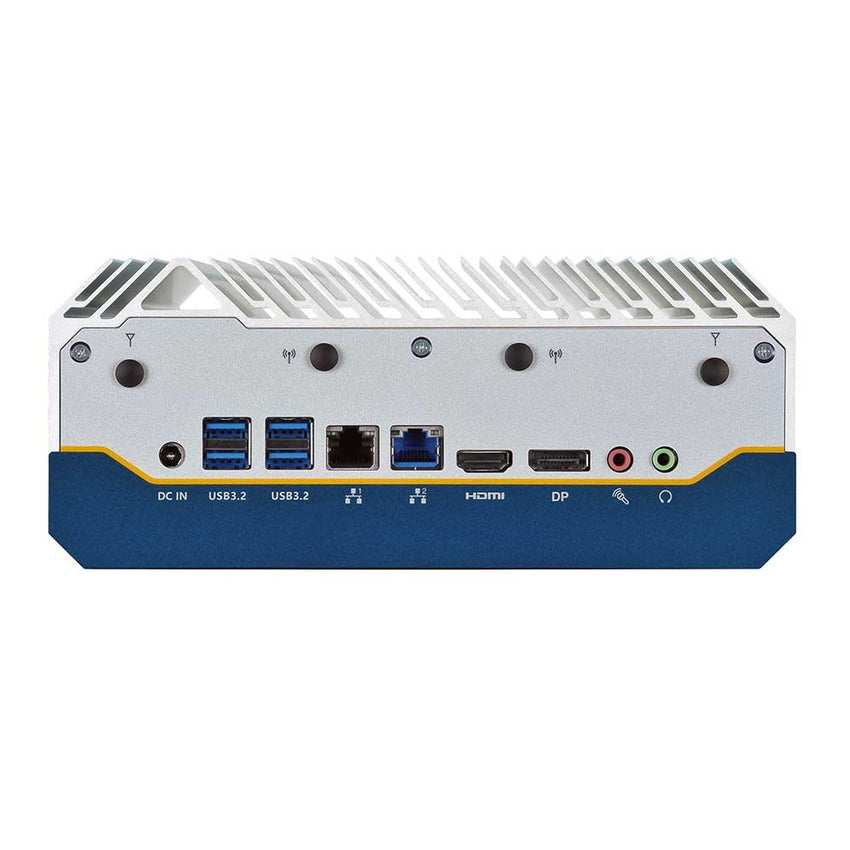

Rear Panel I/O	4 x Antenna Connector 1 x DC-IN 4 x USB 3.2 (Gen1) 1 x RJ45 GbE LAN 1 x RJ45 2.5GbE LAN 1 x HDMI 1 x DisplayPort 2 x Audio I/O

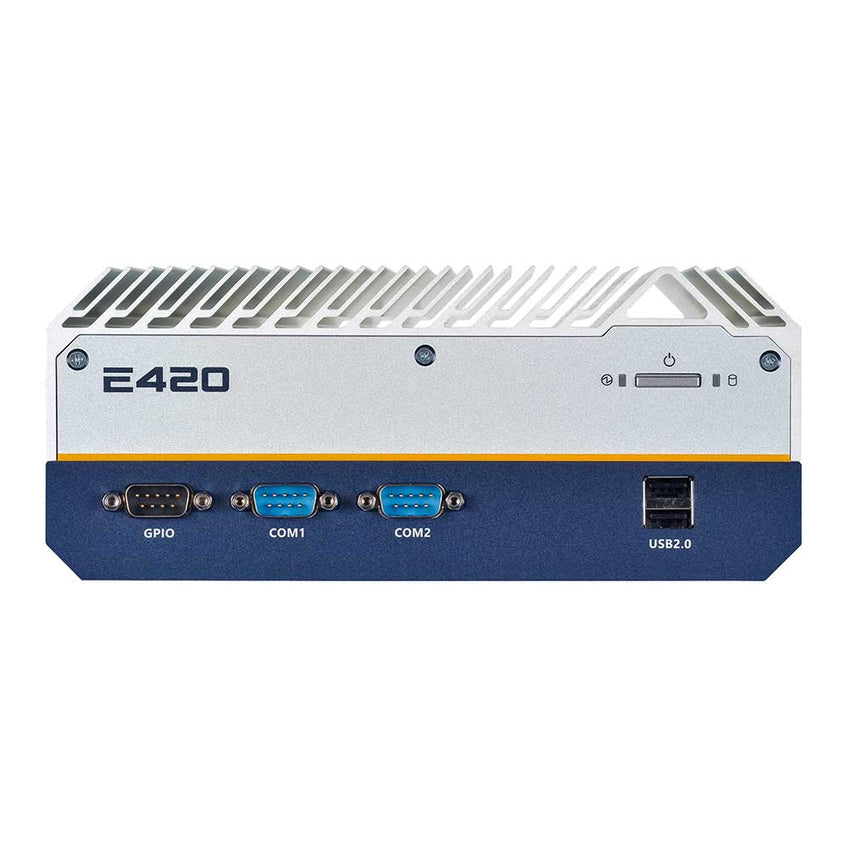

Front Panel I/O	1 x DB9 8-Bit GPIO 2 x Status LED (HDD, Power) 1 x Power Button 2 x USB 2.0
Drive Support	1 x 2.5" Drive Bay 1 x M.2 2280 slot (PCIe/SATA)
Power Supply	12V DC-IN 90W 12V AC-DC Adapter
Case Dimensions	209 x 209 x 87mm 8.23" x 8.23" x 3.43" (in inches)
Environmental	Operating Temperature: -20°C to 50°C (-4°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 95% R/H (non-condensing)
Compliance	CE / FCC Class B
Warranty	1-Year Warranty on Parts and Labor
