| Manufacturer | Mitac |
| Product ID | E410-13CMI |
| CPU |
Supports Intel 10th Gen Core Processors, LGA1200 10 Core Max TDP 35W 8 Core Max TDP 65W 6 Core Max TDP 95W |
| Chipset | Intel H420E |
| Memory |
2 x DDR4 SODIMM Slots Maximum 64GB Capacity 2933/2666/2400 MHz Non-ECC, Unbuffered Only |
| Video |
Intel HD Graphics (CPU Dependent) HDMI Max Resolution: 4096x2160@30Hz DisplayPort Max Resolution: 4096x2304@60Hz LVDS Max Resolution: 1920x1200@60Hz Supports 2 Displays |
| Audio | Realtek ALC662/ALC888 HD Audio |
| Storage Technology |
2 x SATA3 6Gb/s Ports 1 x M.2 2242/2280 slot (PCIe x4 or SATA, M Key) |
| Connectivity |
1 x Intel I219-LM GbE LAN 1 x Intel I210-AT GbE LAN |
| Expansion Slots |
1 x PCI-E 3.0 x16 slot (inaccessible) 1 x Mini PCI-E slot (Full sized, PCIe/USB/SATA) 1 x M.2 2230 slot (CNVi) |

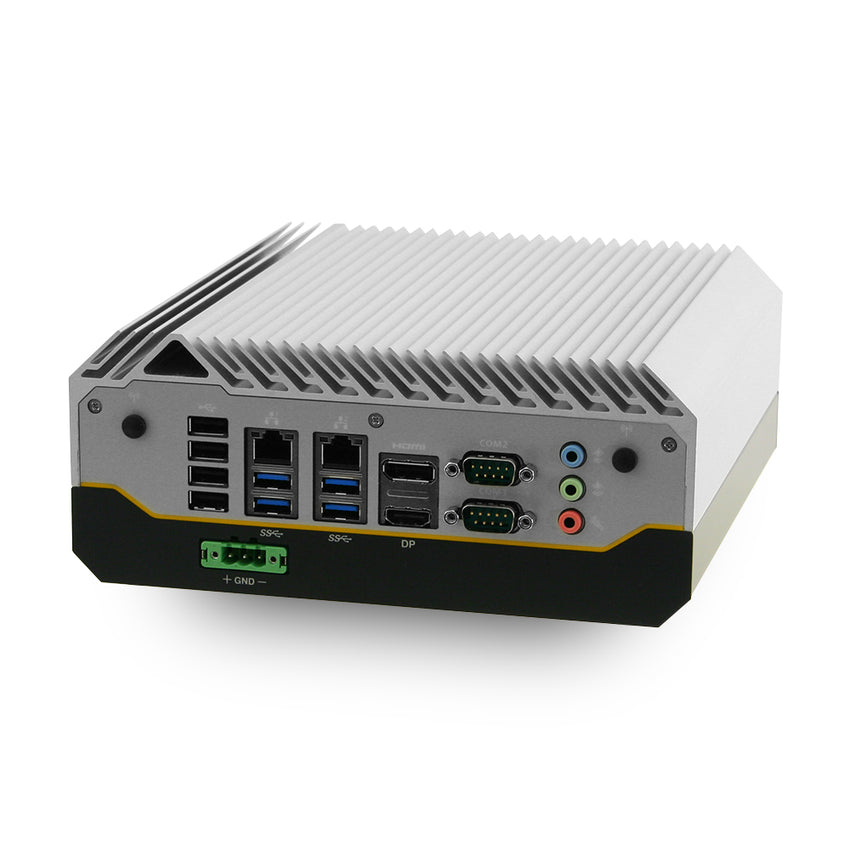

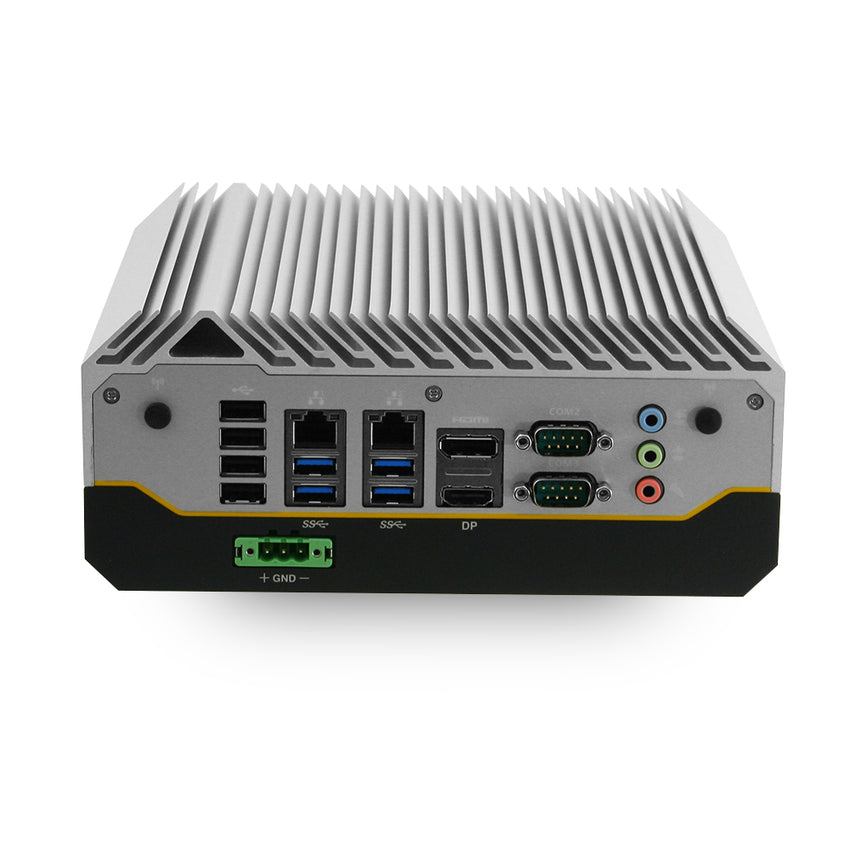

| Rear Panel I/O |
2 x Antenna Connector 4 x USB 2.0 1 x 3-Pin 12V Terminal Block Connector 2 x RJ45 GbE LAN 4 x USB 3.0 1 x DisplayPort 1 x HDMI 1 x Serial COM Port (RS232/422/485) 1 x Serial COM Port (RS232) 3 x Audio I/O |

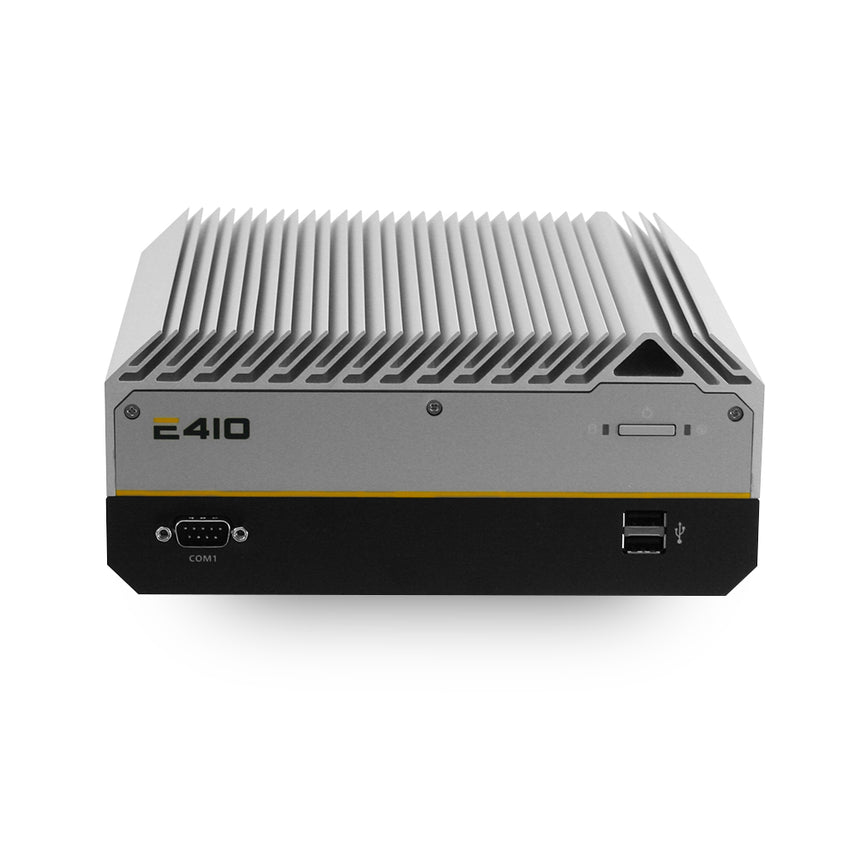

| Front Panel I/O |
1 x DB9 8-Bit GPIO 2 x Status LED (HDD, Power) 1 x Power Button 2 x USB 2.0 |
| Drive Support |
1 x 2.5" Drive Bay 1 x M.2 2280/2260/2242 slot (PCIe/SATA) 1 x mSATA slot |
| Power Supply |
12V 3-Pin Terminal Block Connector 90W 12V AC-DC Adapter |
| Case Dimensions |
209 x 209 x 87mm 8.23" x 8.23" x 3.43" (in inches) |
| Environmental |
Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 95% R/H (non-condensing) |
| Compliance | CE / FCC Class A |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: E410-13CMI
