| Manufacturer | Mitac |
| Product ID | E310-10EHI-J6413 |
| CPU |
Intel Celeron J6413 Processor 1.80 - 3.00 GHz 4 Cores / 4 Threads 10W TDP, 1.5MB L2 Cache |
| Chipset | SoC |
| Memory |
2 x DDR4 SODIMM Slots Maximum 32GB Capacity 3200 MHz Non-ECC Unbuffered Memory Only |
| Video |
Intel UHD Graphics for 10th Gen Intel Processors 400 - 800 MHz HDMI Max Resolution: 4096x2160@60Hz DisplayPort Max Resolution: 4096x2160@60Hz LVDS Max Resolution: 1920x1200@60Hz eDP Max Resolution: 4096x2160@60Hz Supports up to Three Displays |
| Audio | Realtek ALC256 |
| Storage Technology |
2 x SATA3 6Gb/s Ports Note: Multiplexed with M.2 and mSATA ports 1 x M.2 2260/2280/2242/3042/3052 slot (B Key, USB 2.0, SATA3, PCIe x1) Note: M.2 slot does not support NVMe SSD |
| Connectivity |
2 x Intel i211AT GbE LAN |
| Expansion Slots |
1 x M.2 2280/2242/3042 slot (B Key, USB/PCIe x1/SATA) 1 x M.2 2230 slot (E key, PCIe, USB 2.0) 1 x Mini PCI-E slot (USB, PCIe, SATA) 1 x Nano SIM Slot |

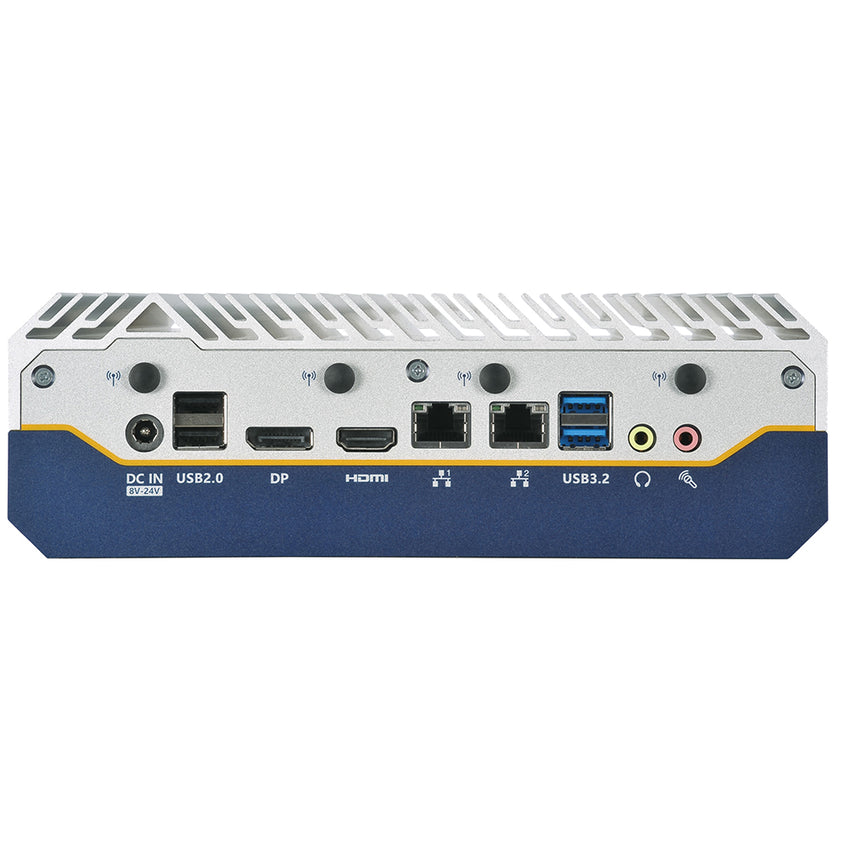

| Rear Panel I/O |
4 x SMA Holes with Rubber Cap 1 x 8V-24V DC-IN 2 x USB 2.0 1 x DisplayPort 1 x HDMI 2 x RJ45 GbE LAN 2 x USB 3.1 (Gen2) 2 x Audio I/O |

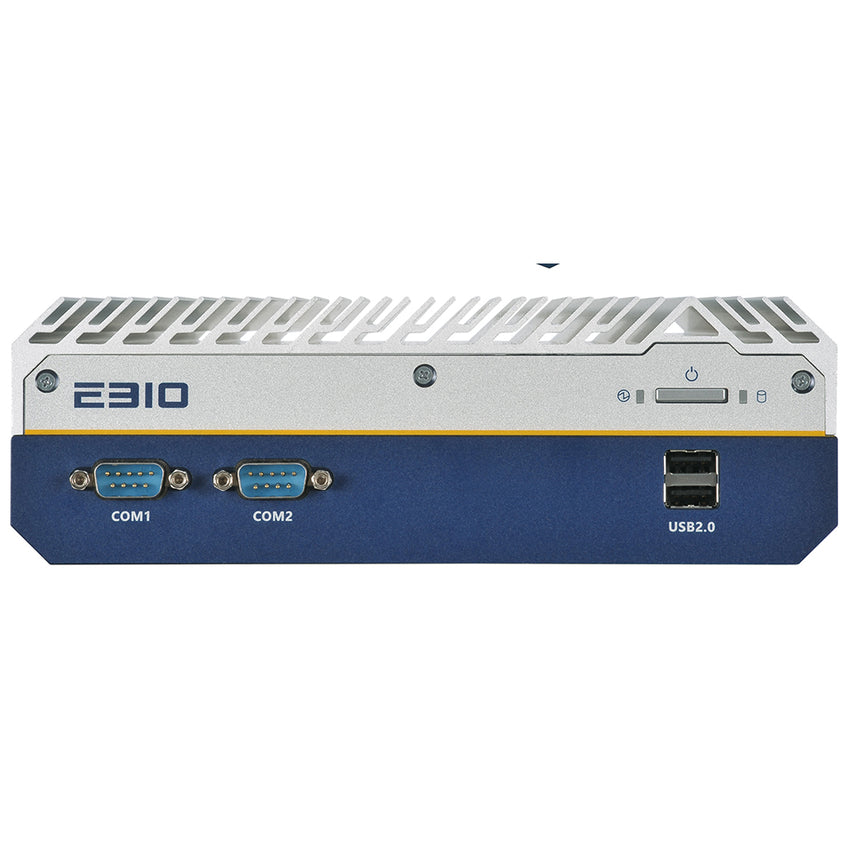

| Front Panel I/O |
2 x COM (RS232) 2 x Status LED (HDD, Power) 1 x Power Button 2 x USB 2.0 |
| Drive Support |
1 x 2.5" Drive Bay 1 x M.2 2280/2260/2242 slot (SATA, B Key) 1 x mSATA slot |
| Power Supply |
8V to 24V DC-IN (2.5mm/ ID, 5.5mm/ OD) 65W 19V AC-DC Adapter |
| Case Dimensions |
209 x 209 x 68mm 8.23" x 8.23" x 2.68" (in inches) |
| Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 95% R/H (non-condensing) |
| Compliance | CE / FCC Class A |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: E310-10EHI-J6413
