| Manufacturer | Mitac |
| Product ID | E300 |
| CPU |
Intel Celeron J1900 Processor 2.00 - 2.42 GHz 4 Cores / 4 Threads 10W TDP, 2MB Cache |
| Chipset | SoC |
| Memory |
2 x DDR3L SODIMM slots 1866MHz Maximum 8GB Capacity Low Voltage 1.35V Required |
| Video |
Intel HD Graphics 688 - 854 MHz Supports Dual Displays |
| Audio | Realtek ALC888S |
| Storage Technology |
1 x SATA3 6Gb/s Port Mini PCI-E: USB/PCI-E/SATA |
| Connectivity |
1 x Realtek RTL8111G GbE LAN |
| Expansion Slots |
1 x Mini PCI-E (USB/PCIe/SATA, Full Sized) 1 x Mini PCI-E (PCIe x1/USB2.0, Half Sized) |

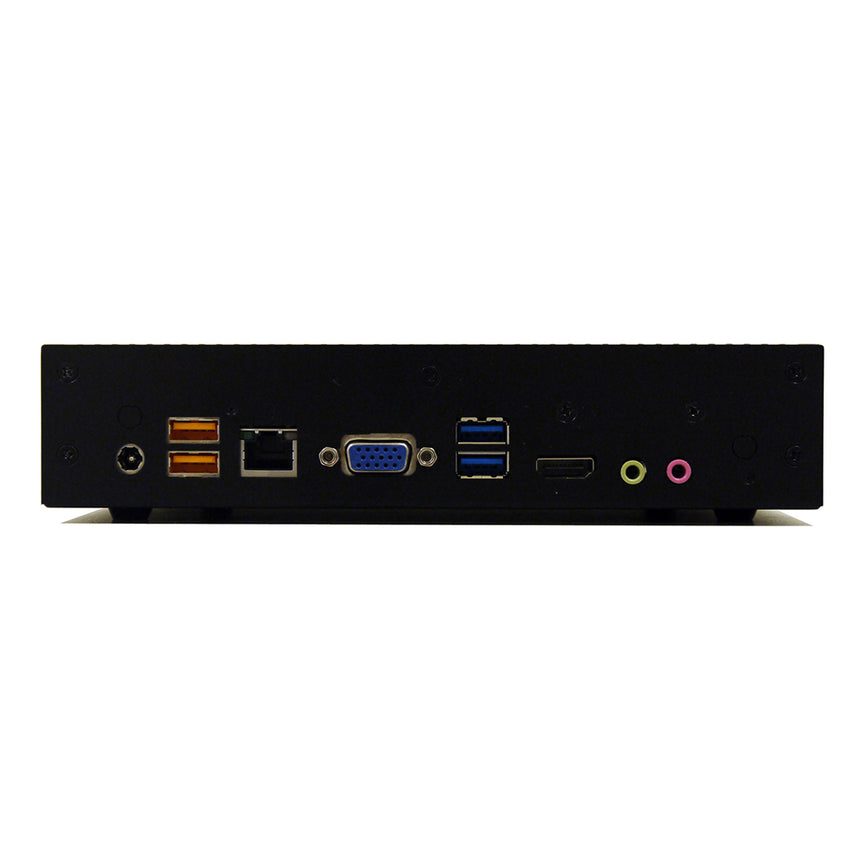

| Rear Panel I/O |
1 x 8-19V DC-IN 2 x USB 2.0 1 x RJ45 GbE LAN 1 x VGA 2 x USB 3.2 (Gen1) 1 x HDMI 1 x Audio In 1 x Audio Out 2 x Antenna Cutout Holes |

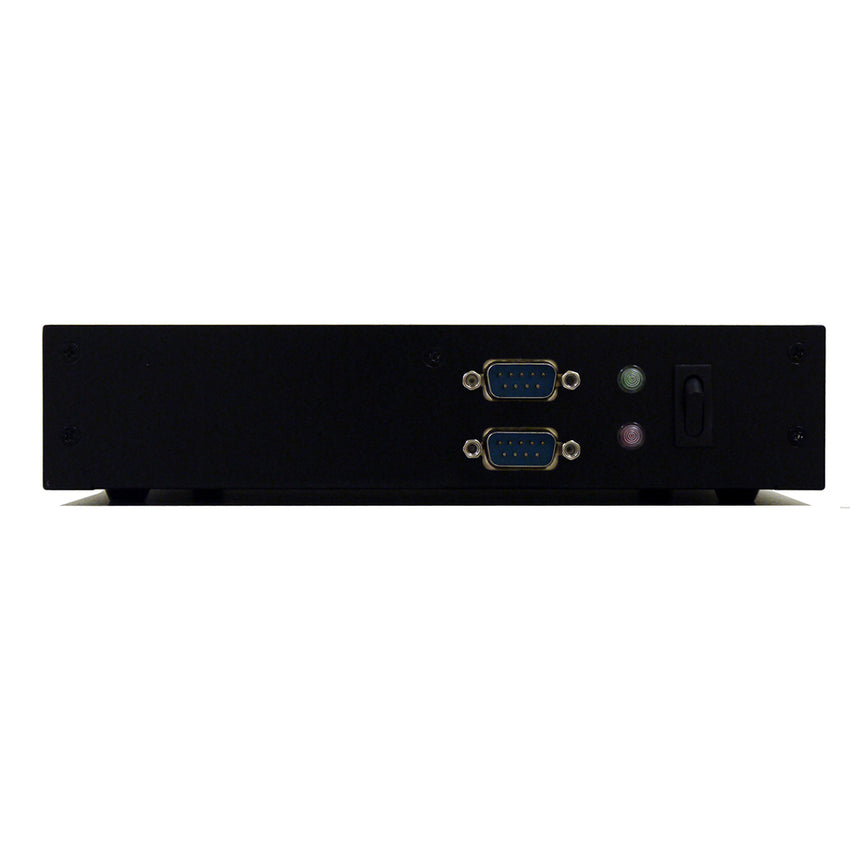

| Front Panel I/O |
2 x RS232 COM Ports (Optional) 2 x Status LED (Power, HDD) 1 x Rocker Power Switch |
| Drive Support |
1 x 2.5" SATA Drive Bay 1 x Mini PCI-E with mSATA Support |
| OS Support |
Windows 7 Windows 10 |
| Power Supply |
8-19V DC-IN 65W 19V AC-DC Adapter |
| Case Dimensions |
200 x 200 x 42mm 7.9" x 7.9" x 1.7" (in inches) |
| Mounting |
Optional VESA Mounting Kit: Supports 75x75mm and 100x100mm |
| Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F) Operating Humidity: 10% to 90% (non-condensing) Vibration Resistance: 5 to 500Hz / 2Grms / 3 Axis (Non-Operating) Shock Resistance: 120G, 2ms Duration (Non-Operating) |
| Compliance | CE / FCC Class A |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: E300
