| Manufacturer | Gigabyte |
| Product ID | E283-Z90-AAD1 |
| Model Number | E283-Z90 |
| CPU |
Supports 2 x AMD EPYC 9005/9004 Series Processors Socket SP5 cTDP up to 400W TDP |
| Chipset | SoC |
| Memory |
24 x DDR5 DIMM slots Maximum 9TB Capacity EPYC 9005 Series: up to 6400 MT/s EPYC 9004 Series: up to 4800 MT/s 12-Channel Memory per Processor |
| Video | Aspeed AST2600 |
| Storage Technology |
Rear Backplane Supports PCI-E 4.0/SATA/SAS Note: SAS support requires add-in card |
| Connectivity |
2 x Intel I350-AM2 GbE LAN Supports NCSI function 1 x GbE Management LAN |
| Expansion |
4 x PCI-E 5.0 x16 slots (Full Height, Half Length) 2 x PCI-E 5.0 x16 slots (x8 Lanes) (Full Height, Half Length) 2 x OCP 3.0 slot (PCI-E 5.0 x16) Supports NCSI function |

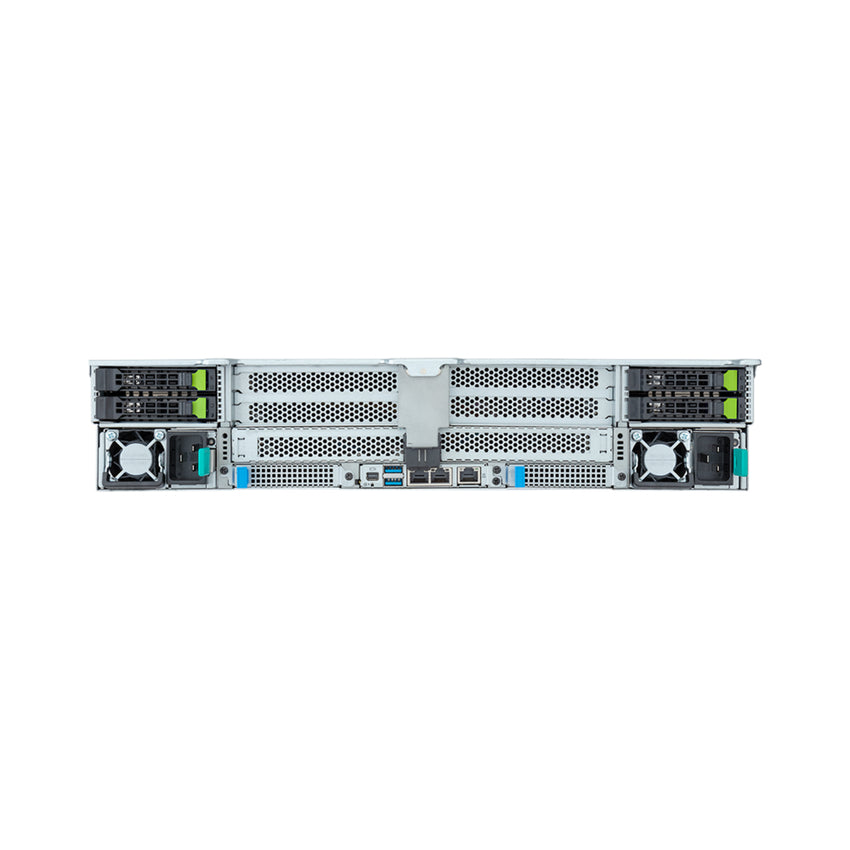

| Rear I/O |
1 x Mini DP 1 x ID LED 2 x USB 3.2 (Gen1) 2 x RJ45 GbE LAN 1 x RJ45 Dedicated Management LAN |
| Front Panel I/O |
2 x USB 3.2 (Gen1) 1 x Power Button with LED 1 x ID Button with LED 1 x NMI Button 1 x Reset Button 2 x LAN LEDs 1 x Storage LEDs 1 x System Status LED |
| Drive Support |
4 x 2.5" NVMe/SATA/SAS Rear Drive Bays |
| Power Supply |
1+1 80 PLUS Platinum Redundant Power Supply 1000W AC Input: 100-127V / 12A, 50-60Hz 1600W AC Input: 200-240V / 10A, 50-60Hz 1600W DC Input: 240Vdc / 8A |
| Cooling |
4 x 80x38mm 18300 RPM Case Fans |
| Case Dimensions |
2U Rackmount 625 x 438 x 87.5mm 24.6" x 17.2" x 3.4" (in inches) Rail kit not included |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 80% (non-condensing) Non-Operating Humidity: 20% to 95% (non-condensing) |
| Warranty | 3 Year Manufacturer's Limited Warranty |
PRODUCT ID: E283-Z90-AAD1
