| Manufacturer | Cincoze |
| Product ID | DX-1300-R10 |
| Model Name | DX-1300 |
| CPU |
Supports Intel 15th Gen Core Ultra 200S Series Processors, Arrow Lake-S Socket LGA 1851 Maximum 65W TDP (Requires External Fan) |
| Chipset | Intel W880 Chipset |
| Memory |
2 x DDR5 SODIMM/CSODIMM slots Supports Un-buffered and ECC Type Maximum 96GB Capacity Ultra 9/7: 6400 MHz Ultra 5: 5600 MHz |
| Video |
Intel Xe LPG Graphics (CPU Dependent) VGA Max Resolution: 1920x1200@60Hz DisplayPort Max Resolution: 3840x2160@60Hz HDMI Max Resolution: 3840x2160@30Hz Supports Quad Independent Displays |
| Audio |
Realtek ALC888 HD Audio |
| Storage Technology |
2 x SATA Connector Support Intel RAID 0/1/5/10 |
| Connectivity |
2 x Intel I226 2.5GbE LAN |
| Expansion Slots |
1 x M.2 3042/3052 slots (PCIe Gen 3x2/ USB 3.2 Gen1x1/SATA) 1 x M.2 2242 slot (PCIe Gen 4x2/SATA/USB 2.0) 1 x M.2 2230 slot (PCIe Gen 3x2/USB 2.0) 1 x SIM Socket 2 x High Speed CMI Interface for optional CMI Module Expansion 1 x Low Speed CMI Interface for optional CMI Module Expansion 1 x CFM-IGN Interface for optional CMI-IGN Module Expansion 1 x CFM-TPM Interface for optional CFM-TPM Module Expansion |

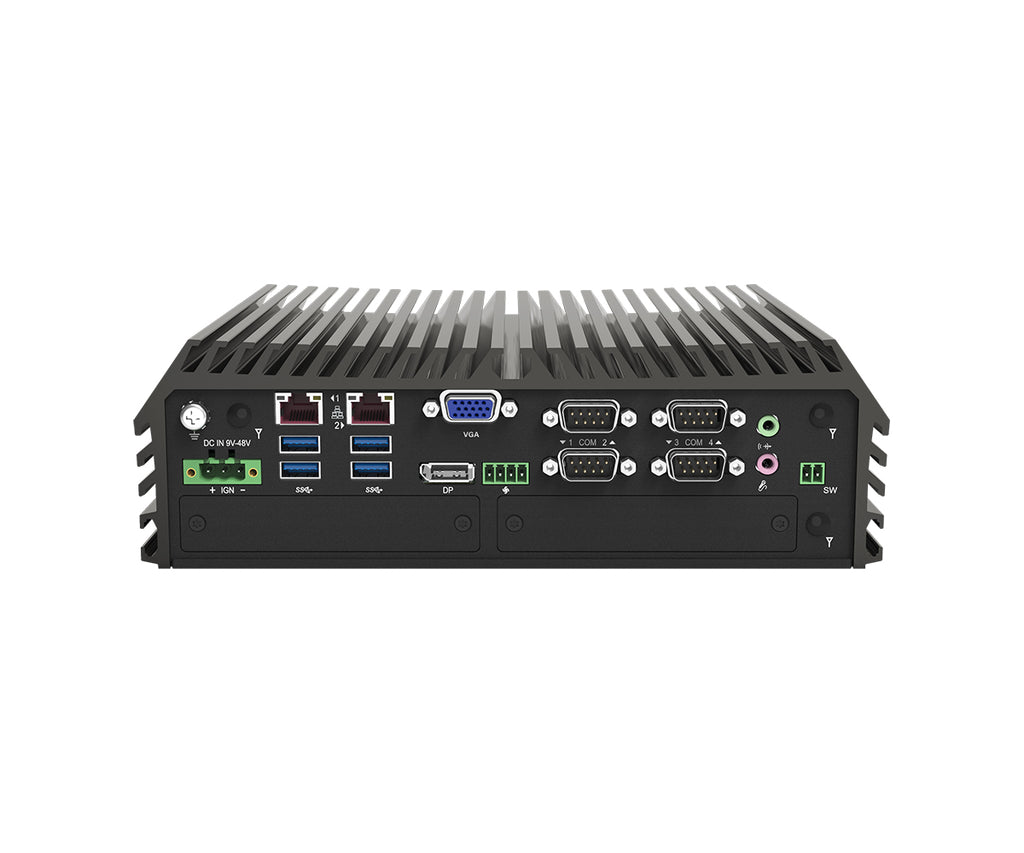

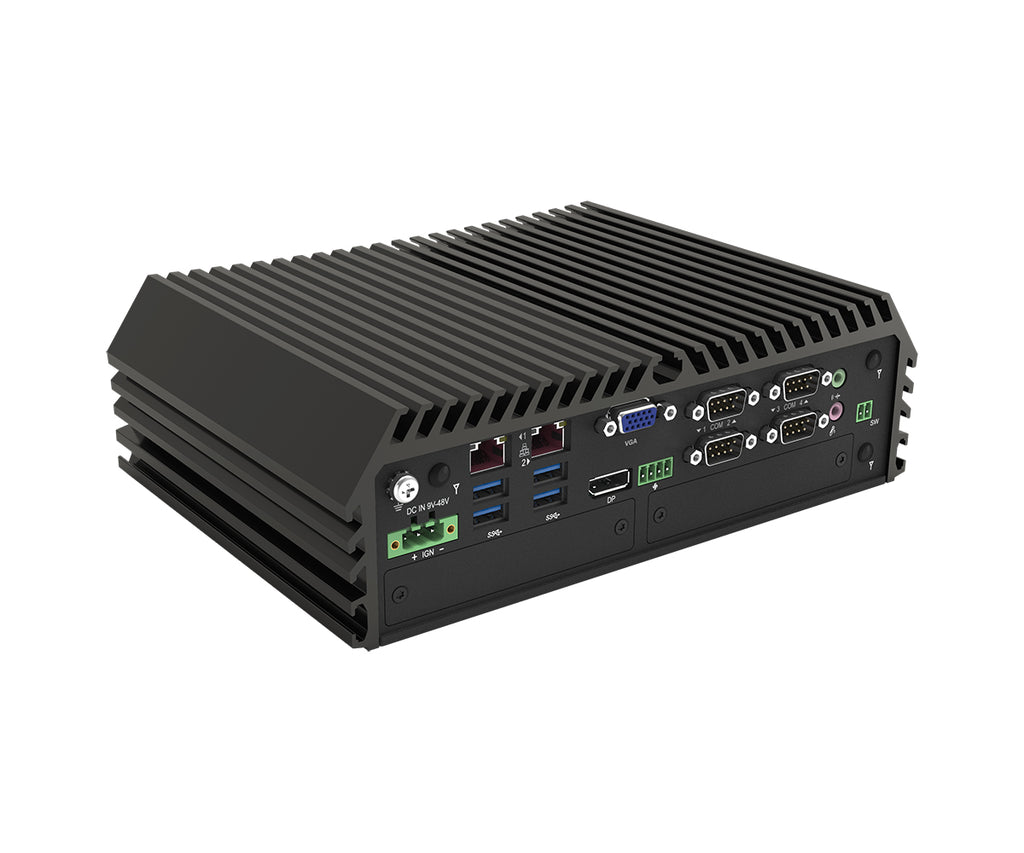

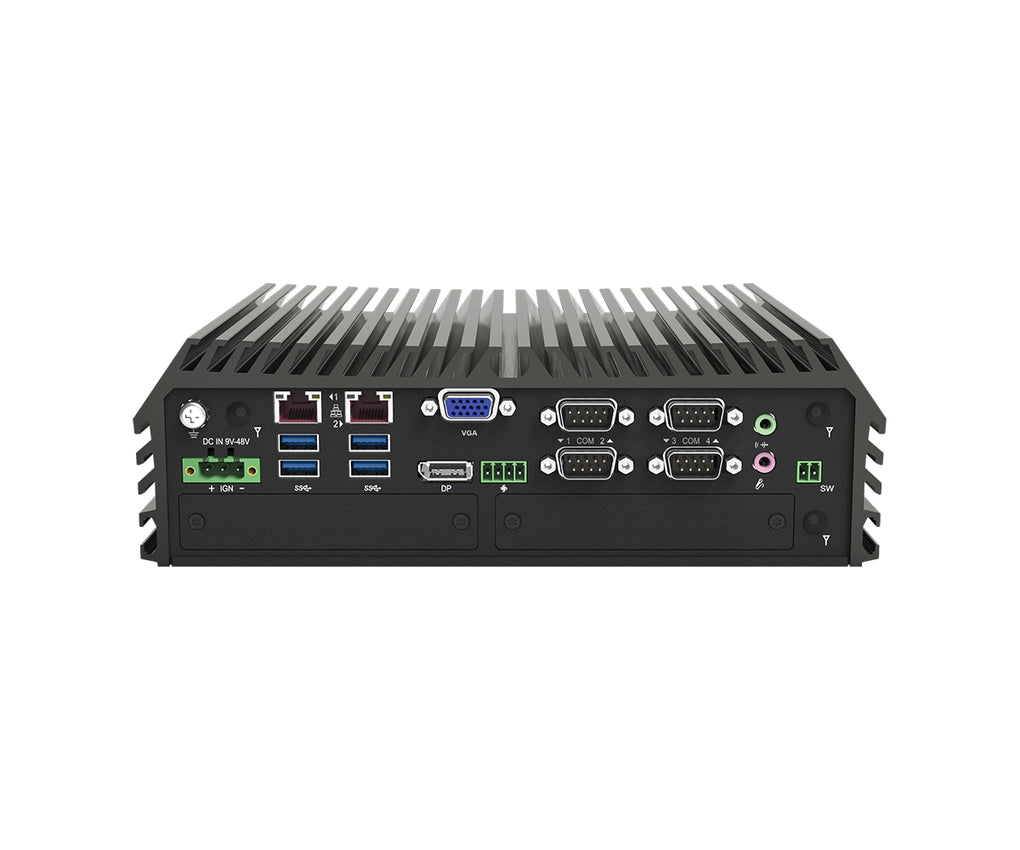

| Rear Panel I/O |
1 x GND Screw 3 x Antenna Cutout 1 x DC-IN 9-48V 3-Pin Terminal Block Connector 2 x RJ45 2.5GbE LAN 4 x USB 3.2 Gen2x1 1 x VGA 1 x DisplayPort 1 x 4-pin Terminal Block External Fan Connector 4 x COM (RS232/422/485 with Auto Flow Control, Support 5V/12V) 2 x Audio I/O 1 x 2-Pin Terminal Block Remote Switch |

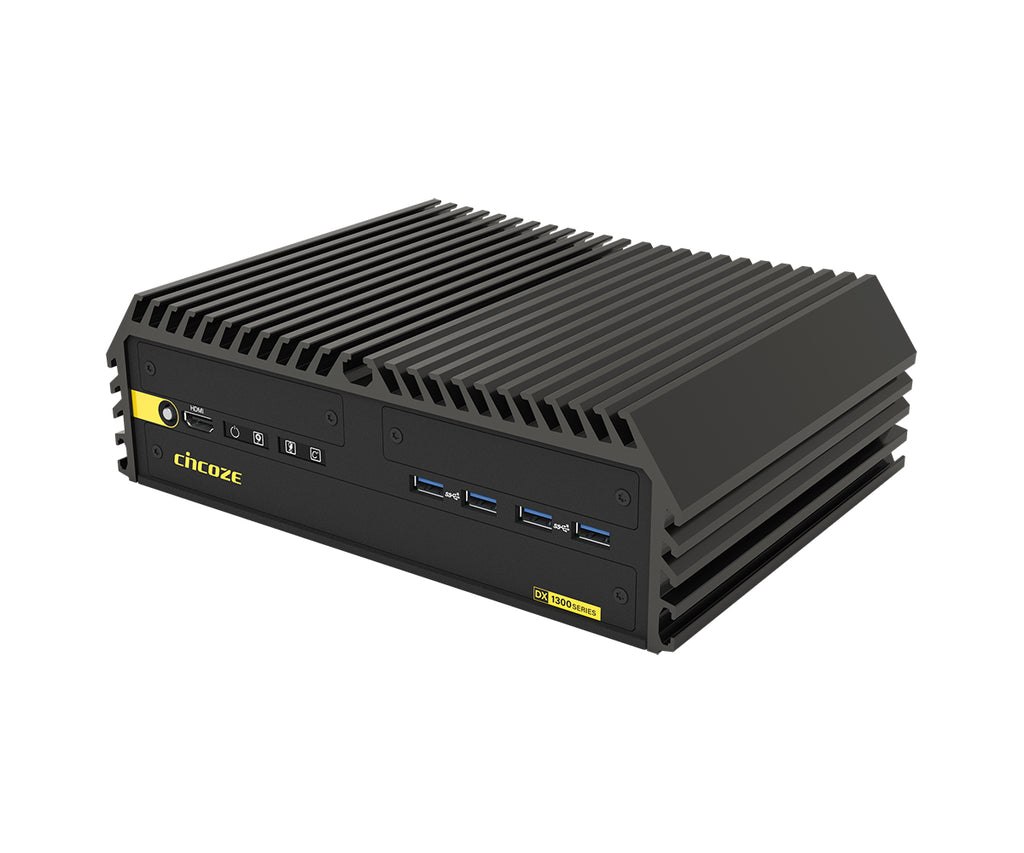

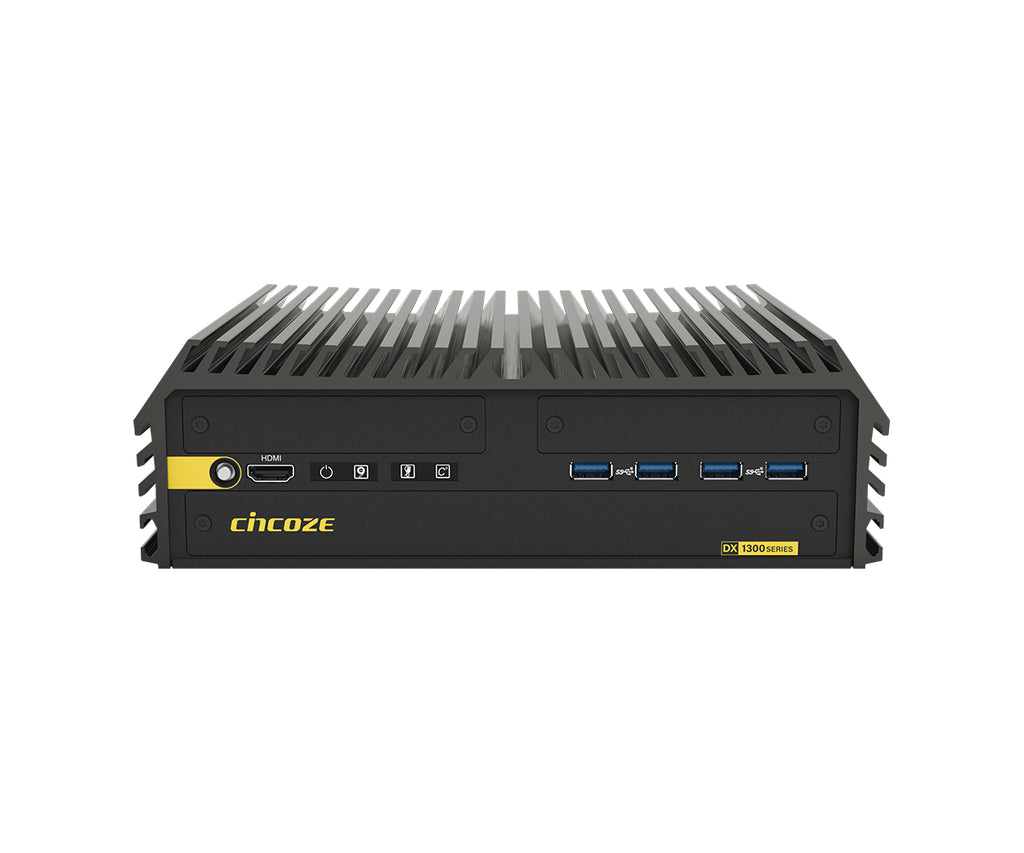

| Front Panel I/O |
1 x Power Switch 1 x HDMI 4 x Status LED 4 x USB 3.2 1x1 |
| Drive Support |
2 x 2.5" SATA Drive Bay |
| OS Support |
Windows 11 Windows 10 Ubuntu 24.04 |
| Power Supply |
9-48V 3-Pin Terminal Block DC-IN |
| Case Dimensions |
242.2 x 173 x 75mm 9.5" x 6.8" x 2.96" (in inches) |
| Mounting |
Wall Mount DIN RAIL VESA Side Mount |
| Environmental |
35W TDP Processor Operating Temperature: -40°C to 60°C (-40°F to 140°F) 65W TDP Processor Operating Temperature: -40°C to 50°C (32°F to 122°F) with External Fan Kit Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Relative Humidity: 95%@60°C (non-condensing) Vibration: MIL-STD-810H Shock: MIL-STD-810H |
| Compliance |
CE, UKCA, FCC, ICES-003 Class A EN 45545-2 UL, cUL, CB, IEC, EN 62368-1 |
| Warranty | 2-Year Manufacturer's Limited Warranty |
PRODUCT ID: DX-1300-R10
