| Manufacturer | Cincoze |
| Product ID | DV-1100-R10 |
| Model Name | DV-1100 |
| CPU | Supports Intel 13th/12th Gen Core Processors, Raptor Lake/Alder Lake Socket LGA 1700 |
| Chipset | Intel H610E |
| Memory | 1 x DDR5 SODIMM 4800 MHz Maximum 32GB Capacity Unbuffered and Non-ECC |
| Video | Intel UHD Graphics (CPU Dependent) DisplayPort Max Resolution: 3840x2160@60Hz VGA Max Resolution: 1920x1200@60Hz Supports 3 Independent Displays |
| Audio | Realtek ALC888 HD Audio |
| Storage Technology | 1 x SATA3 6Gb/s Connector 1 x M.2 2280 slot: PCI-E 4.0 x4 or SATA 1 x M.2 2242 slot: PCI-E 3.0 x2/USB2.0/SATA |
| Connectivity | 1 x Intel I225 2.5GbE LAN 1 x Intel I219 GbE LAN |
| Expansion Slots | 1 x M.2 3042/3052 B Key slot (PCI-E 3.0 x2, USB 3.2 Gen2, SATA) 1 x M.2 2230 slot E Key slot (PCI-E 3.0 x2/USB 2.0/CNVi) 1 x Dual Nano SIM Socket 1 x CMI Interface for CMI-Display Module 2 x CMI Interface for CMI-COM/DIO Module 1 x CFM IGN Interface |

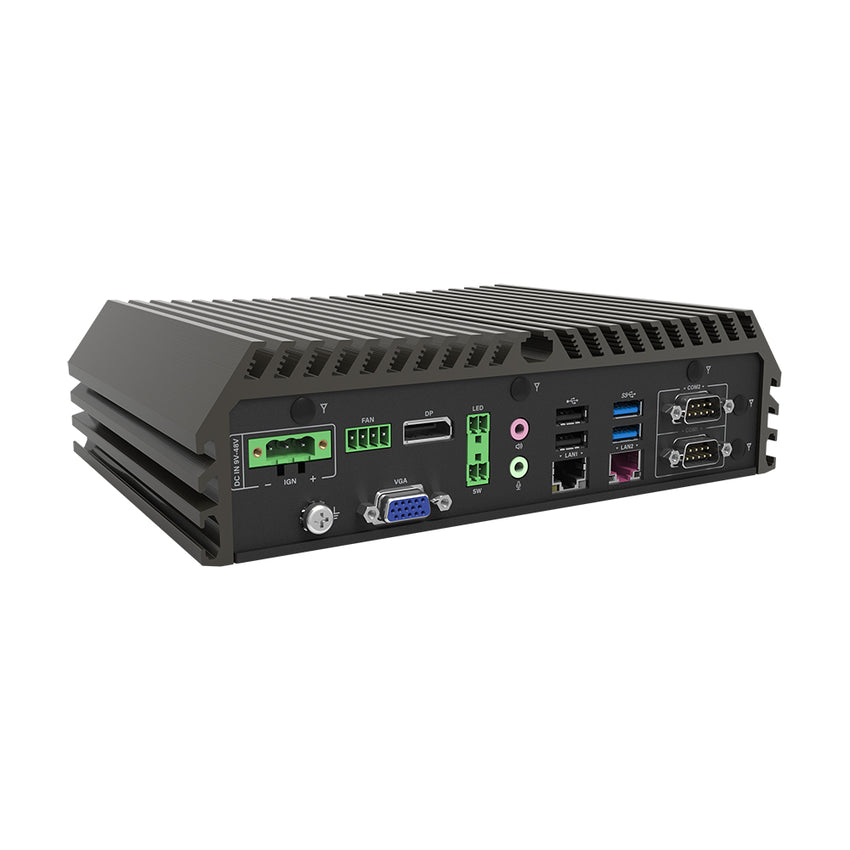

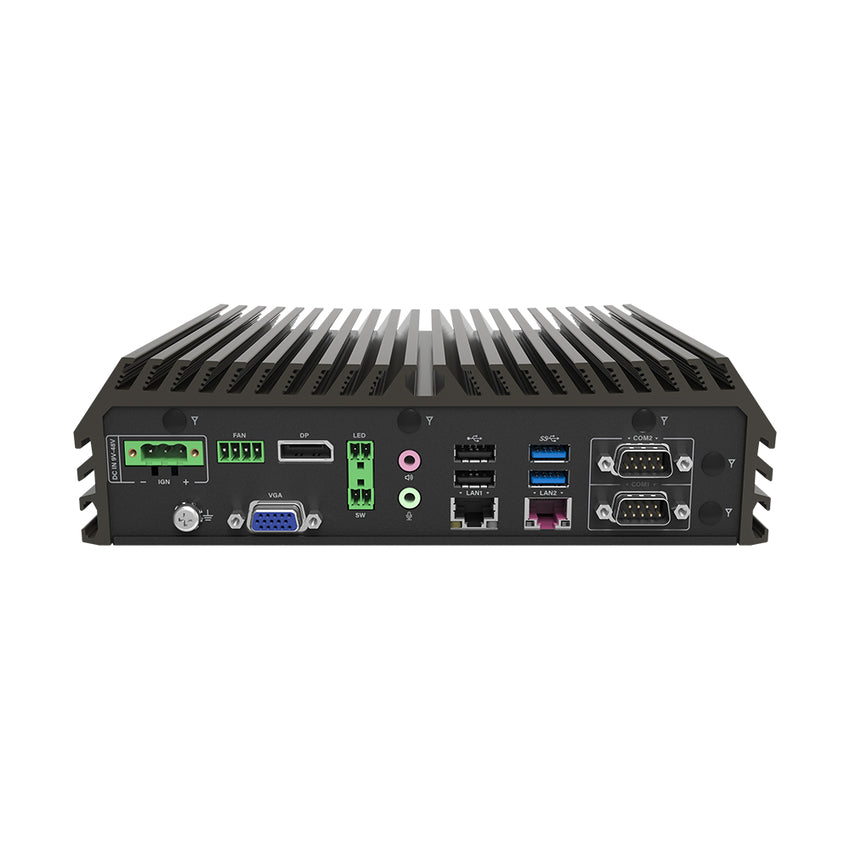

| Rear Panel I/O | 5 x Antenna Cutout 1 x 9-48VDC 3-Pin Terminal Block 1 x GND Screw 1 x 4-Pin Terminal Block External Fan Connector 1 x VGA 1 x DisplayPort 2 x Audio I/O 2 x 2-Pin Terminal Block External Power Switch and LED Connector 2 x USB 2.0 1 x RJ45 GbE LAN 2 x USB 3.2 (Gen1) 1 x RJ45 2.5GbE LAN 2 x RS232/422/485 with Auto Flow Control (Support 5V/12V) |

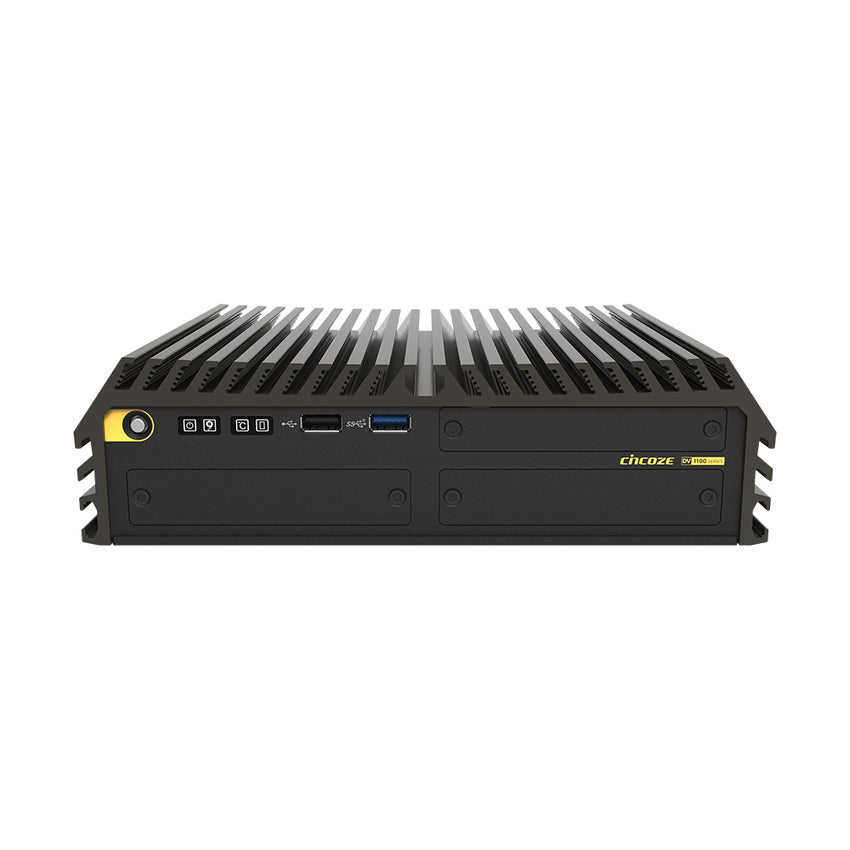

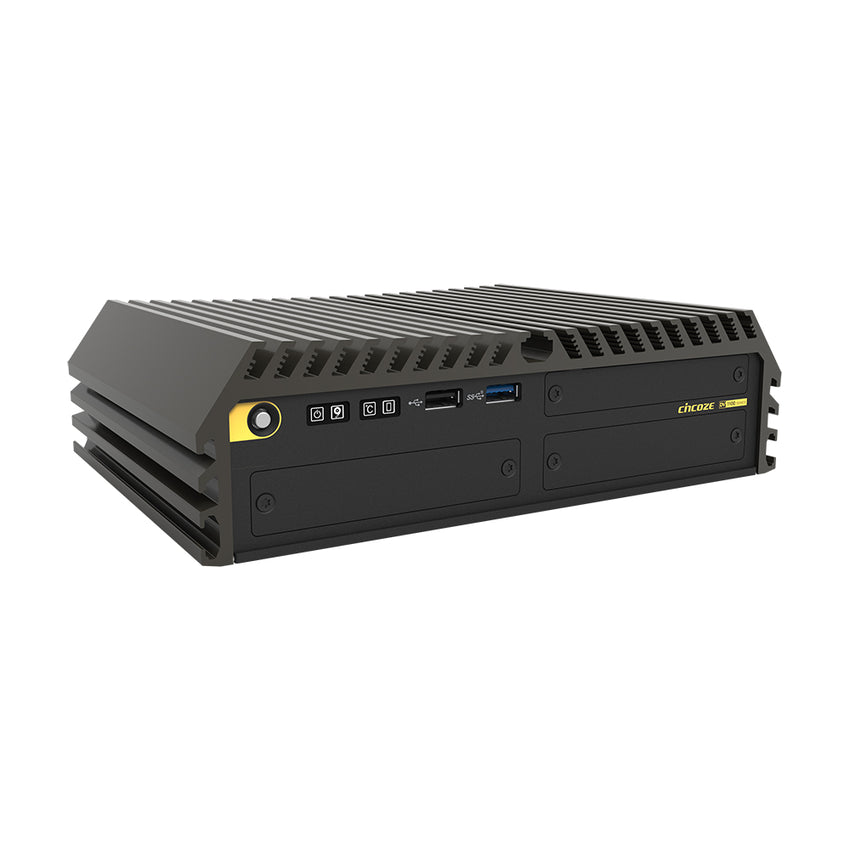

| Front Panel I/O | 1 x Power Button 4 x Status LED (Power, HDD) 1 x USB 2.0 1 x USB 3.2 (Gen2x2) |
| Drive Support | 1 x 2.5" SATA Drive Bay 1 x M.2 2280 slot (PCI-E 4.0 x4/SATA) |
| OS Support | Windows 10 Windows 11 |
| Power Supply | 9-48VDC 3-Pin Terminal Block Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover Reverse Power Input Protection |
| Case Dimensions | 224.1 x 162 x 62 mm 8.82" x 6.38" x 2.44" (in inches) |
| Mounting | Wall / DIN-RAIL / VESA Mount |
| Environmental | Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Relative Humidity: 95% RH @ 70°C (non-condensing) Vibration: MIL-STD-810H Shock: MIL-STD-810H |
| Compliance | CE, UKCA, FCC, ICES-003 Class A EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only) EN 50155 (EN 50121-3-2 Only) E-mark (Pending) CISPR 32 Conducted & Radiated: Class A EN/BS EN 50121-3-2 Conducted & Radiated: Class A EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A EN/BS EN 61000-3-3 Voltage fluctuations & flicker FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: DV-1100-R10
