| Manufacturer | Cincoze |
| Product ID | DV-1000 |
| CPU | Supports Intel 9th/8th Gen Coffee Lake Core Processors Socket LGA1151 |
| Chipset | Intel H310 |
| Memory | 1 x DDR4 SODIMM slot 2666 MHz Supports up to 32GB Maximum Capacity Un-buffered and Non-ECC only |
| Video | Intel UHD Graphics (CPU Dependent) Display Port Max Resolution: 4096x2304@60Hz VGA Max Resolution: 1920x1200@60Hz Supports Dual Display |
| Audio | Realtek ALC888 HD Audio |
| Storage Technology | 1 x SATA3 6.0 GB/s Ports 2 x Mini PCI-E with mSATA support 1 x M.2 2280 slot (SATA and NVMe) |
| Connectivity | 1 x Intel I219-LM GbE LAN 1 x Intel I210 GbE LAN Supports Wake On LAN |
| Expansion Slots | 1 x M.2 2230 slot (E Key, CNVi) 2 x Mini PCI-E slot (Supports mSATA) 1 x SIM Socket 1 x CMI Interface for Display Module (Control Multiple I/O) 2 x CMI Interface for I/O Module (Combined Multiple I/O) 1 x CFM Interface for IGN Module |
| Rear Panel I/O | 4 x Antenna Cutout 1 x 9-48VDC 3-Pin Terminal Block 1 x GND Screw 1 x 4-Pin Terminal Block External Fan Connector 1 x VGA 1 x DisplayPort 1 x 2-Pin Terminal Block Remote Power Switch 1 x 2-Pin Terminal Block Remote Power LED 2 x Audio I/O 2 x USB 2.0 2 x RJ45 GbE LAN 2 x USB 3.2 (Gen1) 2 x Serial COM (RS232/422/485 with Auto Flow Control, Supports 5V/12V) |
| Front Panel I/O | 1 x Power Button 4 x Status LED (Power) 1 x USB 2.0 1 x USB 3.2 (Gen1) |
| Drive Support | 1 x 2.5" SATA Drive Bays 2 x Mini PCI-E slots with mSATA support 1 x M.2 2280 slot (SATA or NVMe) |
| Power Supply | 3-Pin Terminal Block DC-IN (9-48VDC) Optional 120W 24V AC/DC Power Adapter Reverse Power Input Protection Over Voltage Protection: 51 - 58V Over Current Protection: 15A Surge Protection: 2 kV |
| Case Dimensions | 224.1 x 162 x 64.2mm 8.82" x 6.38" x 2.53" (in inches, approximate) |
| Mounting | Wall / VESA / Din Rail |

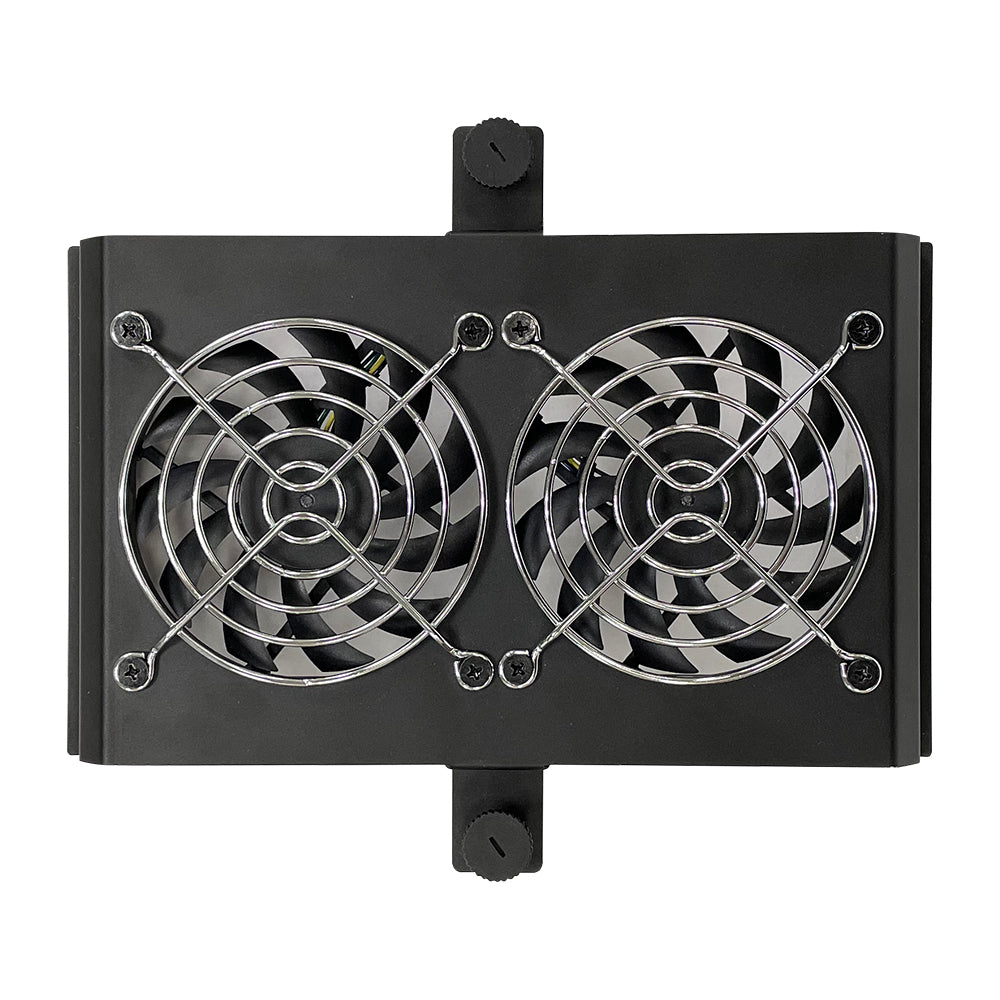

| Environmental | Operating Temperature 35W TDP Processor: -40°C to 70°C (-40°F to 158°F) Operating Temperature 54W to 65W TDP Processor: -40°C to 60°C (-40°F to 113°F) with Fan Kit Note: With Ambient Airflow and extended temperature peripherals Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Relative Humidity: 95% RH @7 70°C (non-condensing) Shock: Operating: MIL-STD-810G Vibration: Operating: MIL-STD-810G |
| Compliance | CE FCC ICES-003 Class A EN50121-3-2 (Railway) |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: DV-1000
