Product ID | DH02U7 |
CPU | Intel Kabylake-U Core i7-7500U Processor 2.7 - 3.5 GHz 2 Cores / 4 Threads 15W TDP, 14nm, 4MB Cache |
Memory | 2 x 260-pin DDR4-2133 SODIMM slots Supports up to 32GB Capacity Dual Channel |
Video | Nvidia GeForce GTX 1050 (MXM Card) 4GB GDDR5 Memory (128-bit) 1354 - 1493 MHz 640 CUDA Cores |
Audio | Realtek ALC662 HD Audio |
Storage Technology | SATA: SATA3 6.0 Gb/s M.2: SATA or PCI-E Interface |
Operating System | Windows 10 64-bit Linux |
Connectivity | 1 x Intel i211 GbE LAN 10/100/1000 Supports Wake-ON-LAN Optional 802.11n WLAN Module |
Expansion Slots | 1 x M.2 2280 (Type M) Socket 1 x M.2 2230 (Type E) Socket 1 x MxM 3.0 Type A (Occupied) |

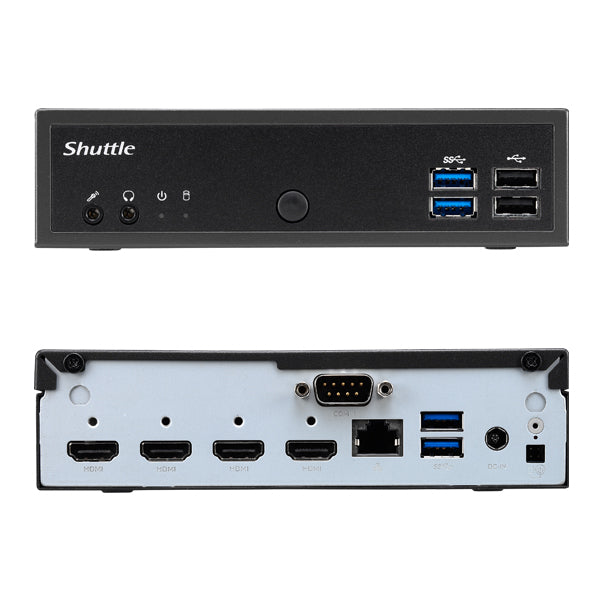

Rear Panel I/O | 4 x HDMI 1 x RJ45 LAN 1 x RS232 COM (Max 500mA, 0/5/12V Output) 2 x USB 3.0 1 x 19V DC-IN 1 x Clear CMOS Header 1 x Kensington Lock |
Front I/O | 2 x Audio I/O 2 x Status LED (Power, HDD) 1 x Power Button 2 x USB 3.0 2 x USB 2.0 1 x SD Card Reader |
Drive Support | 1 x 2.5" Drive Bay 1 x M.2 2280 Drive 1 x SD Card |
Power Supply | 120W AC/DC Power Adapter Input: 100-240V AC Output: 19V 6.32A DC |
Case Dimensions | 1.3 liters 7.5" x 6.5" x 1.7" (in inches) 190 x 165 x 43mm |
Warranty | 3-Year Manufacturer's Limited Warranty |
