Manufacturer	Cincoze
Product ID	DC-1300-N97-R10
Model Name	DC-1300
CPU	Intel N97 Processor 4 Cores 3.60 GHz 12W TDP, 6MB Intel Smart Cache
Chipset	SoC
Memory	1 x DDR5 SODIMM slots Maximum 16GB Capacity 4800 MHz Supports Unbuffered and Non-ECC
Video	Intel UHD Graphics 1.20 GHz 24 Execution Units DisplayPort Maximum Resolution: 3840x2160@60Hz Supports Two Independent Displays
Audio	Realtek ALC888 HD Audio
Storage Technology	1 x SATA Connector M.2 3042/3052 slot (PCIe Gen3x1/USB 3.2 Gen2x1/SATA)
Connectivity	2 x Intel I225 2.5 GbE LAN

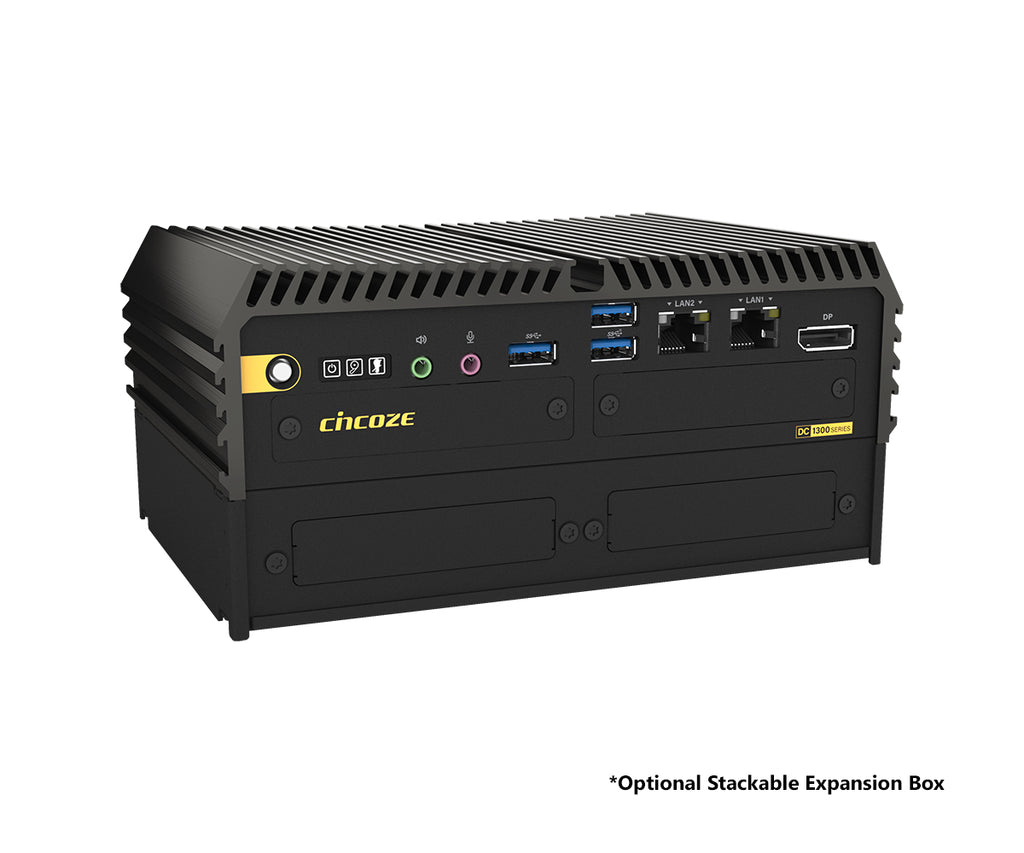

Expansion Slots	1 x M.2 3042/3052 slot (B Key, PCIe Gen3x1/USB 3.2 Gen2x1/SATA) 1 x M.2 2242 slot (PCIe Gen3x1/USB 2.0) slot 1 x Dual Nano SIM socket 1 x CMI Interface for Optional Display or I/O Module 1 x CMI Interface for I/O Module 1 x CFM Interface for Optional IGN Module 1 x Stackable Expansion Box

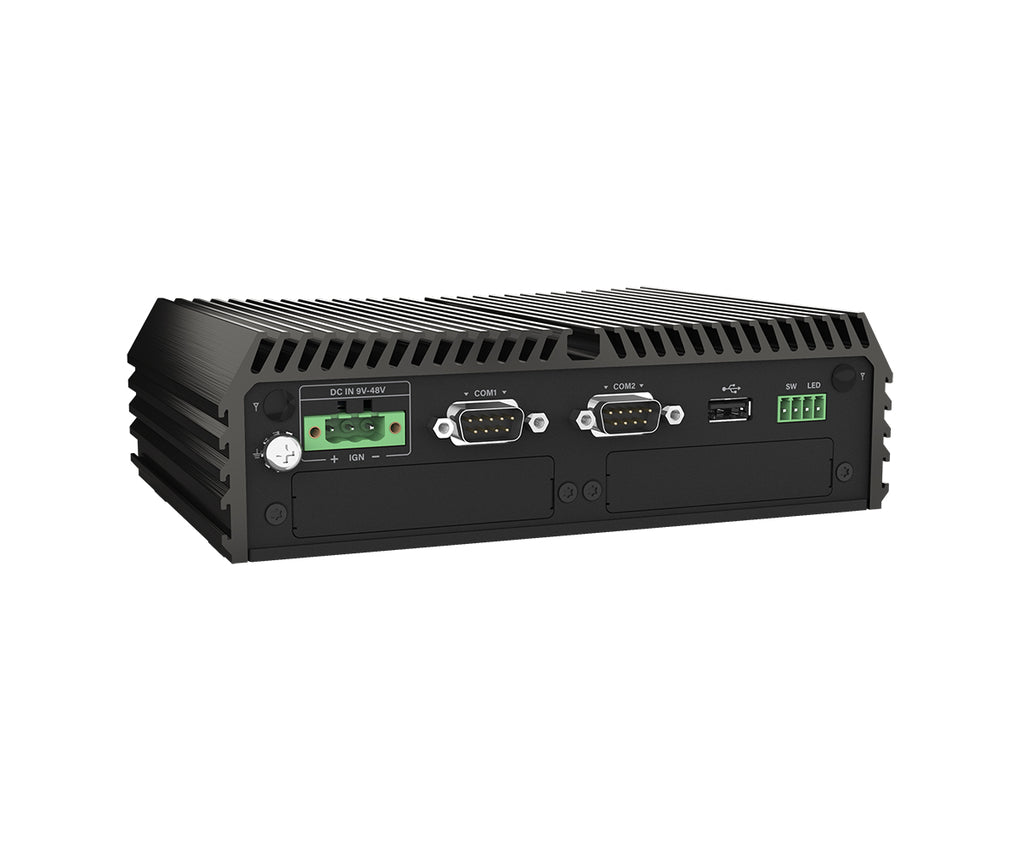

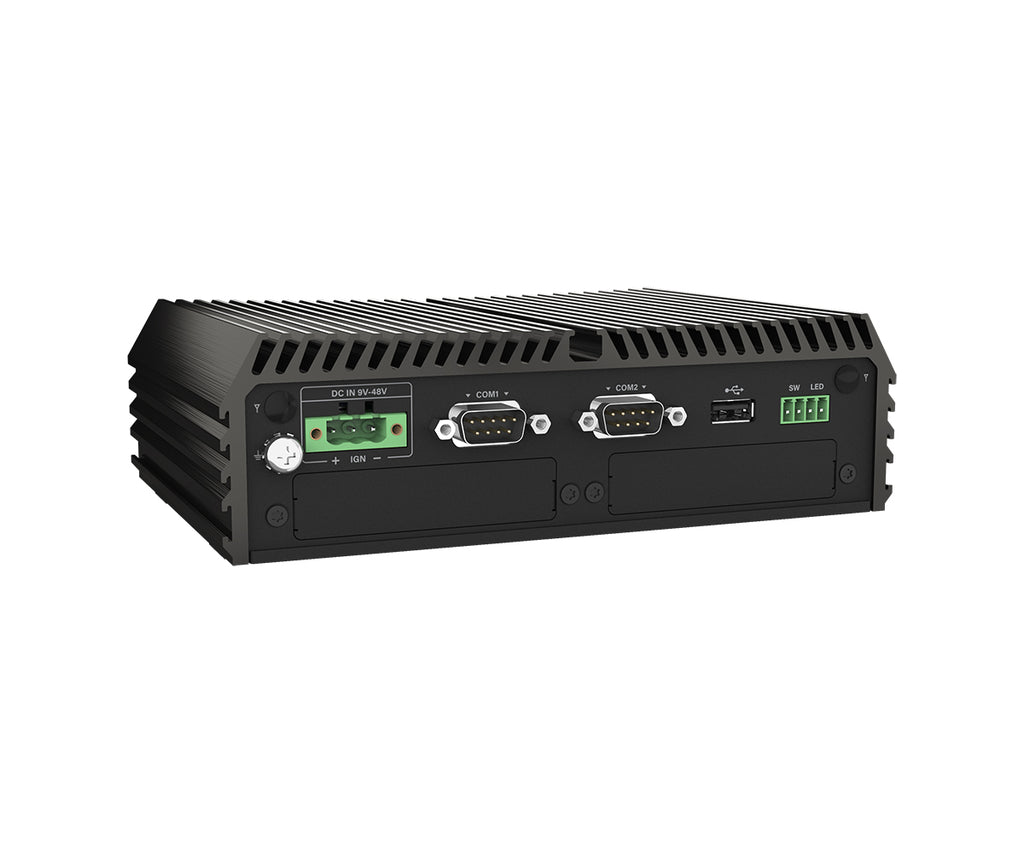

Rear Panel I/O	2 x Antenna Cutout 1 x 9-48V 3-Pin Terminal Block DC-IN 2 x COM (RS232/422/485 with Auto Flow Control, 5V/12V 1 x USB 2.0 1 x 4-Pin Terminal Block External Switch/LED

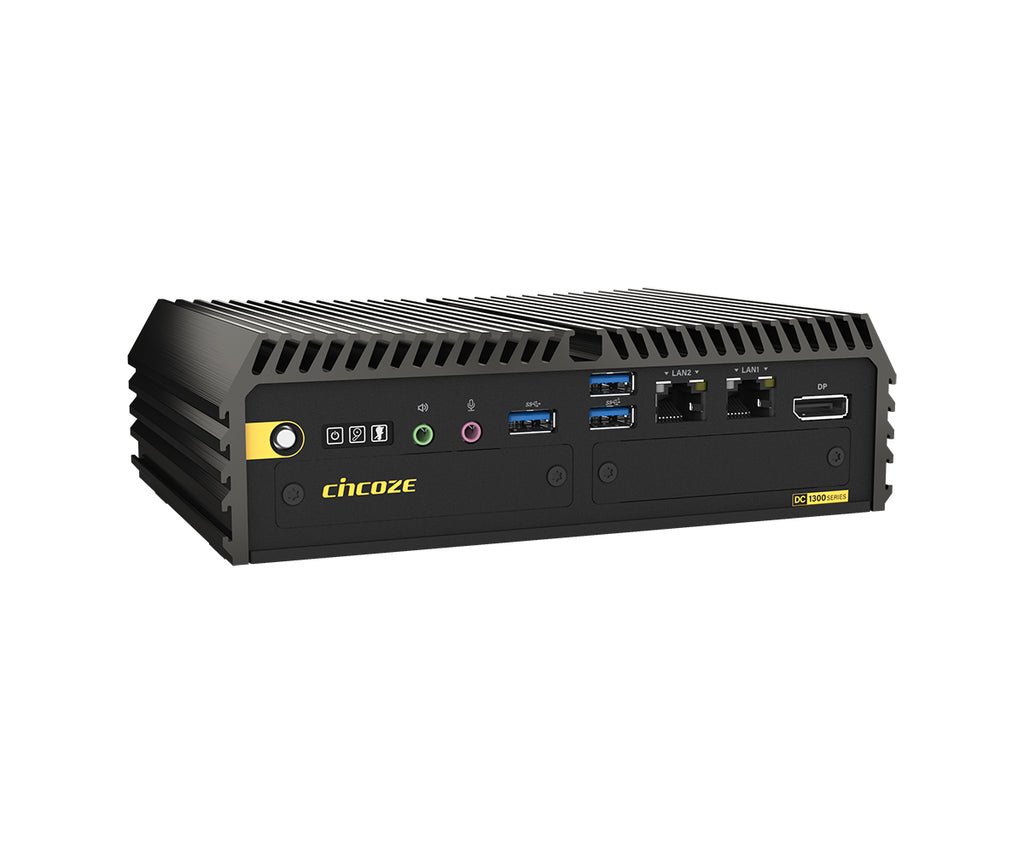

Front Panel I/O	1 x Power Button 3 x Status LED (Power, HDD, LAN) 2 x Audio I/O 1 x USB 3.2 (Gen1x1) 2 x USB 3.2 (Gen2x1) 2 x RJ45 2.5 GbE LAN 1 x DisplayPort
Drive Support	1 x 2.5" SATA Drive Bay 1 x M.2 3042/3052 slot (B Key, PCIe Gen3x1/USB 3.2 Gen2x1/SATA)
OS Support	Windows 11 Windows 10 Ubuntu 22.04 LTS
Power Supply	9-48V 3-Pin Terminal Block DC-IN Over Voltage Protection: 51-58V Protection Type: Shut Down Operating Voltage, Re-Power at the present level to recover Over Current Protection: 15A
Case Dimensions	185 x 131 x 56.5mm 7.28" x 5.16" x 2.22" (in inches)
Mounting	Wall Mount Side Mount DIN RAIL VESA Mount
Environmental	Operating Temperature: -40°C to 70°C (-40°F to 158°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 95% RH @ 70˚C (Non-condensing) Vibration: MIL-STD-810H Shock: MIL-STD-810H
Compliance	CE, UKCA, FCC, ICES-003 Class A UL, cUL, CB, IEC, EN 62368-1
Warranty	1-Year Warranty on Parts and Labor
