Manufacturer	QCT
Product ID	D51PS-1U
Part Number	1S2BZZZ0002
CPU	Supports Dual Intel Xeon E5-2600 v3 product family Supports Dual Intel Xeon E5-2600 v4 product family Supports Max TDP 135W Socket FCLGA 2011
Chipset	Intel C610
Memory	16 x DDR4-2400 Slots DDR4 ECC RDIMM/LRDIMM Supports up to 512GB RDIMM Supports up to 1024GB LRDIMM
Video	AST2400 with 8MB DDR3 Video Memory
Storage Technology	SATA3: 6.0Gb/s
Connectivity	2 x Intel I350 Gigabit LAN 1 x GbE Dedicated IPMI
Expansion	1 x PCI-E 3.0 x8 SAS mezzanine slot 1 x PCI-E 3.0 x16 OCP LAN mezzanine slot

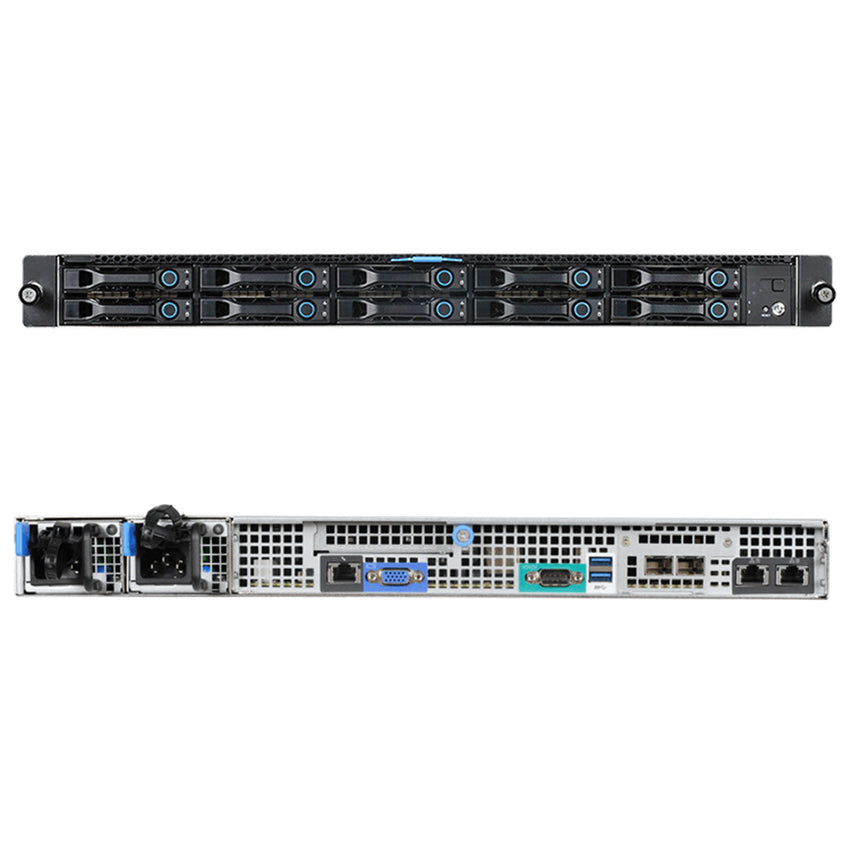

Rear I/O	1 x RJ45 GbE Dedicated IPMI 1 x VGA 1 x RS232 Serial Port 2 x USB 3.0 2 x RJ45 GbE LAN
Front Panel I/O	1 x Reset Button 1 x Status LED 1 x Power Button
Drive Support	10 x 2.5" SATA3 Drives Supports RAID 0, 1, 10
Cooling	5 x Dual Rotor Fans 9+1 Redundant
Power Supply	700W 80+ Platinum AC Power Supply 100-240Vac, 50-60Hz, 10-5A +12V: 57.1A +5Vsb: 3A Optional Redundant Power Supply
Case Dimensions	17.24 x 1.70 x 24.00 (in inches) 438.0 x 43.2 x 609.6mm Weight: 40.70 lbs, 18.46 kg
Environmental	Operating Temperature: 5°C - 40°C (41°F - 104°F) Non-operating Temperature: -40°C - 65°C (-40°F - 149°F) Operating Humidity: 20% to 85% RH Non-operating Humidty: 10% to 90% RH
