Manufacturer	QCT
Product ID	D51B-1U
Part Number	1S2BZZZ000J
CPU	Supports Dual Intel Xeon E5-2600 v3 product family Supports Dual Intel Xeon E5-2600 v4 product family Supports Max TDP 135W Socket FCLGA 2011
Chipset	Intel C610
Memory	24 x DDR4-2400 Slots DDR4 ECC RDIMM/LRDIMM Supports up to 768GB RDIMM Supports up to 1536GB LRDIMM
Video	AST2400 with 8MB DDR3 Video Memory
Storage Technology	Requires additional SAS/RAID Card
Connectivity	2 x Intel I350 Gigabit LAN 1 x GbE Dedicated IPMI
Expansion	1 x PCI-E 3.0 x8 SAS mezzanine slot 1 x PCI-E 3.0 x8 FHHL slot 1 x PCI-E 3.0 x8 OCP LAN mezzanine slot

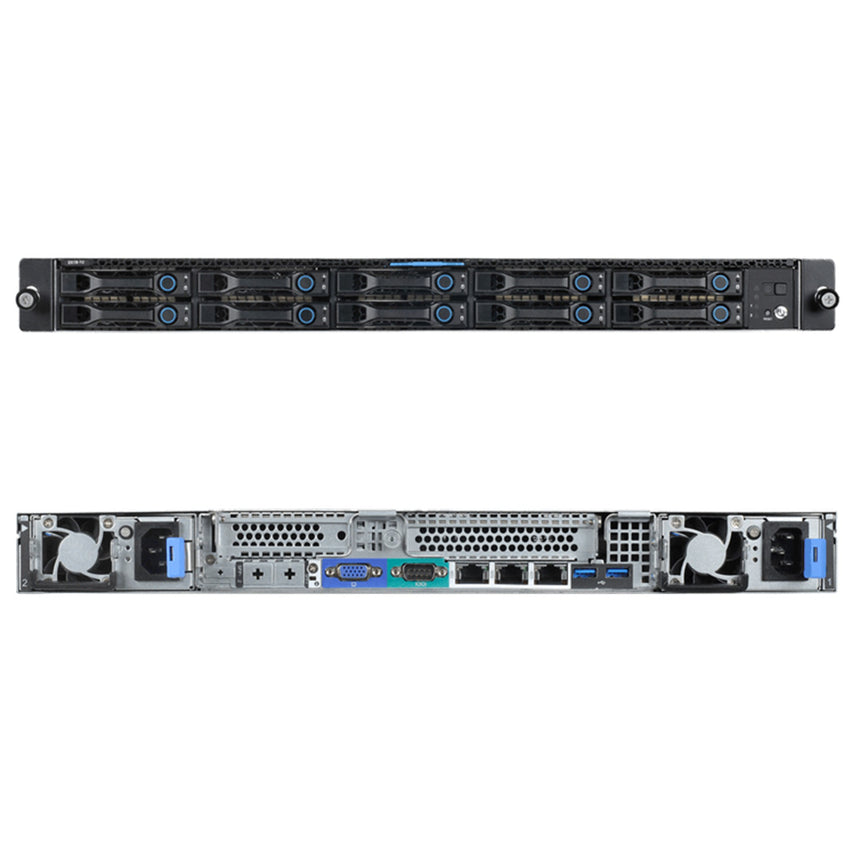

Rear I/O	1 x VGA 1 x RS232 Serial Port 2 x RJ45 GbE LAN 1 x RJ45 GbE Dedicated IPMI 2 x USB 3.0
Front Panel I/O	1 x Reset Button 1 x Status LED 1 x Power Button
Drive Support	10 x 2.5" Hot Swap Drives Bays Requires additional SAS/RAID Card
Cooling	6 x Dual Rotor Fans 11+1 Redundant
Power Supply	750W 80+ Gold AC Power Supply 100-240V, 50/60Hz, 9.5A-5.0A +12V: 60A +12Vsb: 2.5A Optional Redundant Power Supply
Case Dimensions	17.24 x 1.70 x 29.21 (in inches) 438.0 x 43.2 x 742.0 Weight: 44.03 lbs, 19.97 kg
Environmental	Operating Temperature: 5°C - 40°C (41°F - 104°F) Non-operating Temperature: -40°C - 65°C (-40°F - 149°F) Operating Humidity: 20% to 85% RH Non-operating Humidty: 10% to 90% RH
