| Manufacturer | MSI |
| Product ID | CUBINUCAI025B |

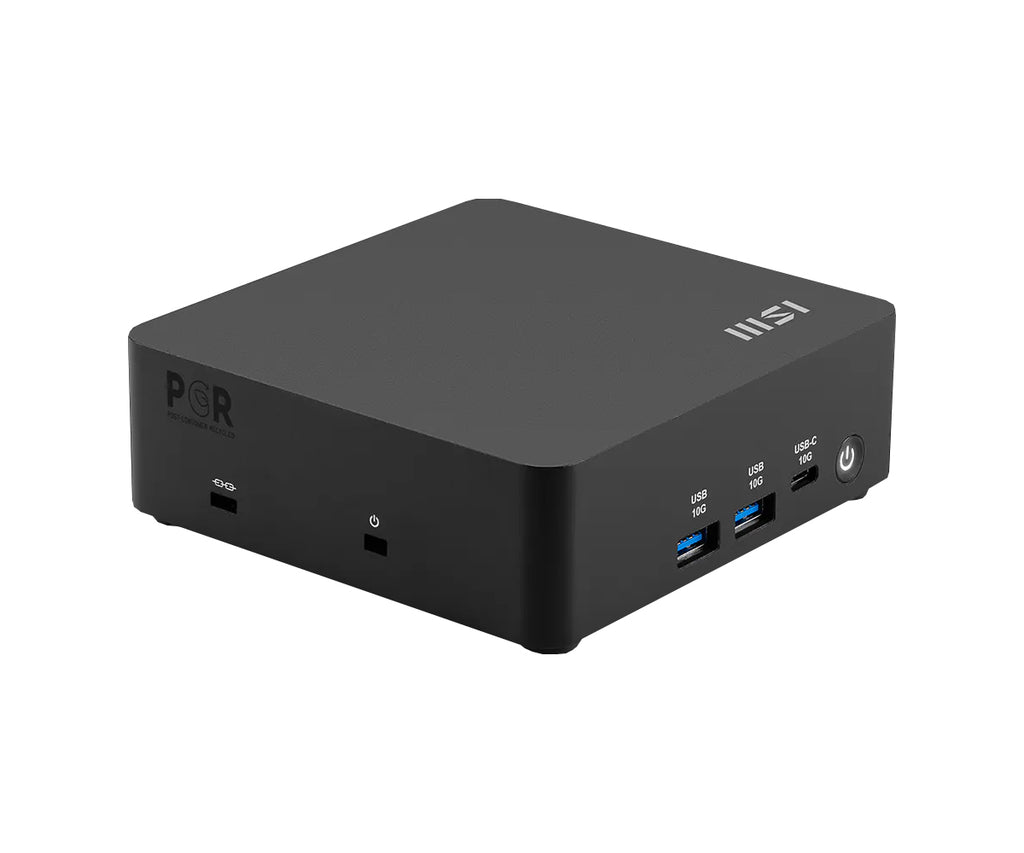

| Model Name | Cubi NUC AI 1UMG-025BUS |
| CPU |
Intel Core Ultra 5 125H Processor 4 P-Cores / 8 E-Cores / 2 LP E-Cores / 18 Threads LP E-Cores: 700 MHz - 2.5 GHz E-Cores: 700 MHz - 3.6 GHz P-Cores: 1.2 - 4.5 GHz 28-115W TDP, 18 MB Intel Smart Cache |
| Chipset |
SoC |
| Memory |
2 x DDR5 SODIMM slots Maximum 96GB Capacity 5600 MHz Dual Channel |
| Video |
Intel Arc Graphics 2.2 GHz 18 GPU Peak TOPS (Int8) 7 Xe-Cores HDMI 2.1 Max Resolution: 4096x2160@60Hz DisplayPort 1.4 Max Resolution: 4096x2160@60Hz Supports Quad Displays |
| Audio | Intel HD Audio |
| Storage Technology | 2 x M.2 2280 slot (PCI-E 4.0 x4) |
| Connectivity |
2 x Intel I226-V 2.5 GbE LAN Intel AX211, WIFI 6E, Bluetooth 5.4 |
| Expansion Slots |
1 x M.2 2230 Slot (Occupied by WIFI) |

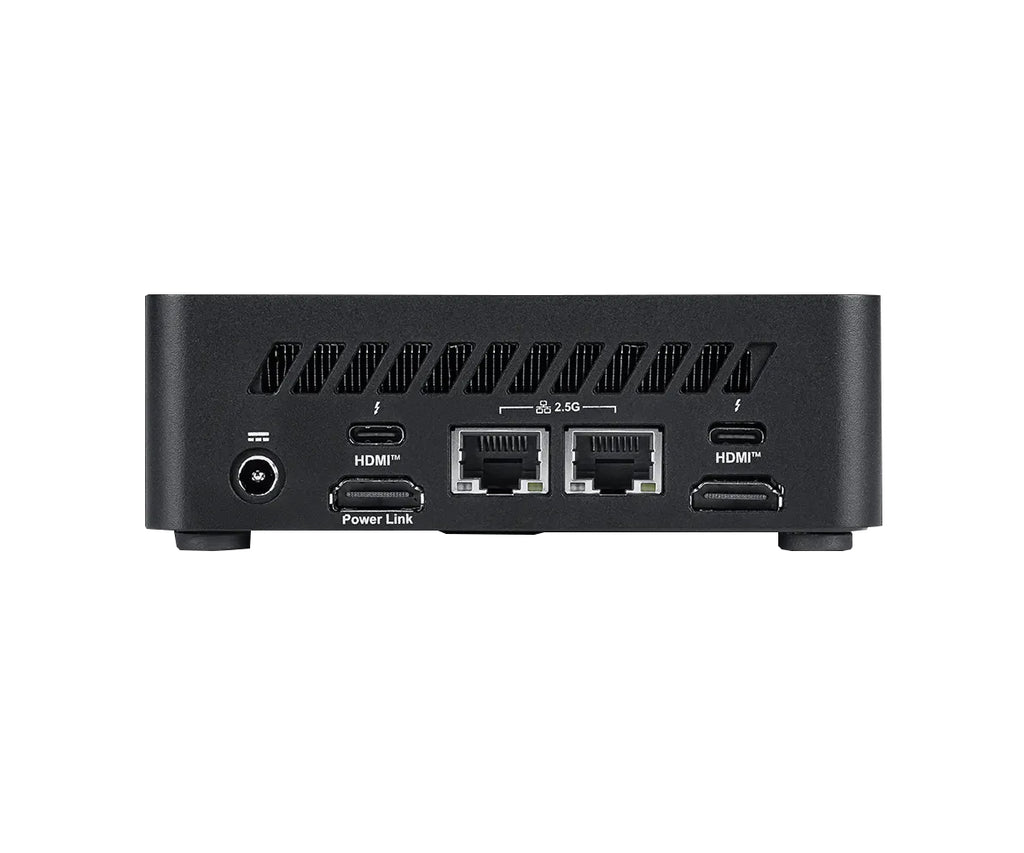

| Rear Panel I/O |
1 x 19V DC-IN 2 x Thunderbolt 4 (DP 1.4 alt-mode) 2 x HDMI 2 x RJ45 2.5GbE LAN |

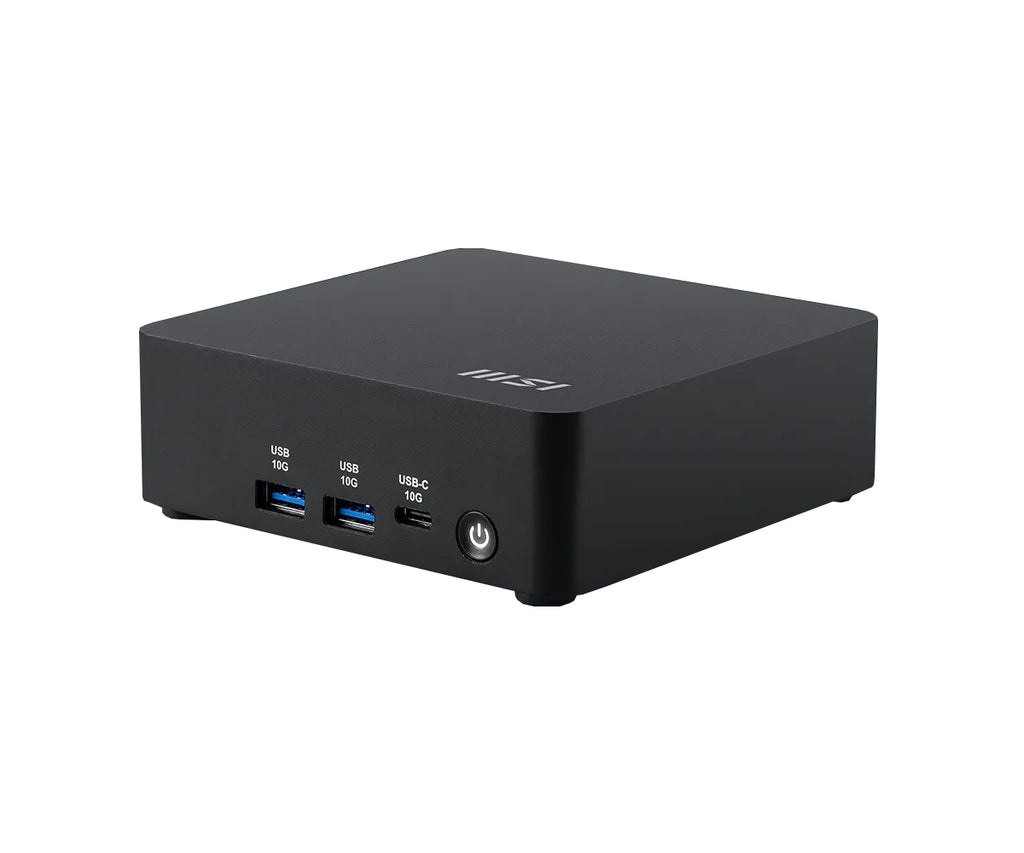

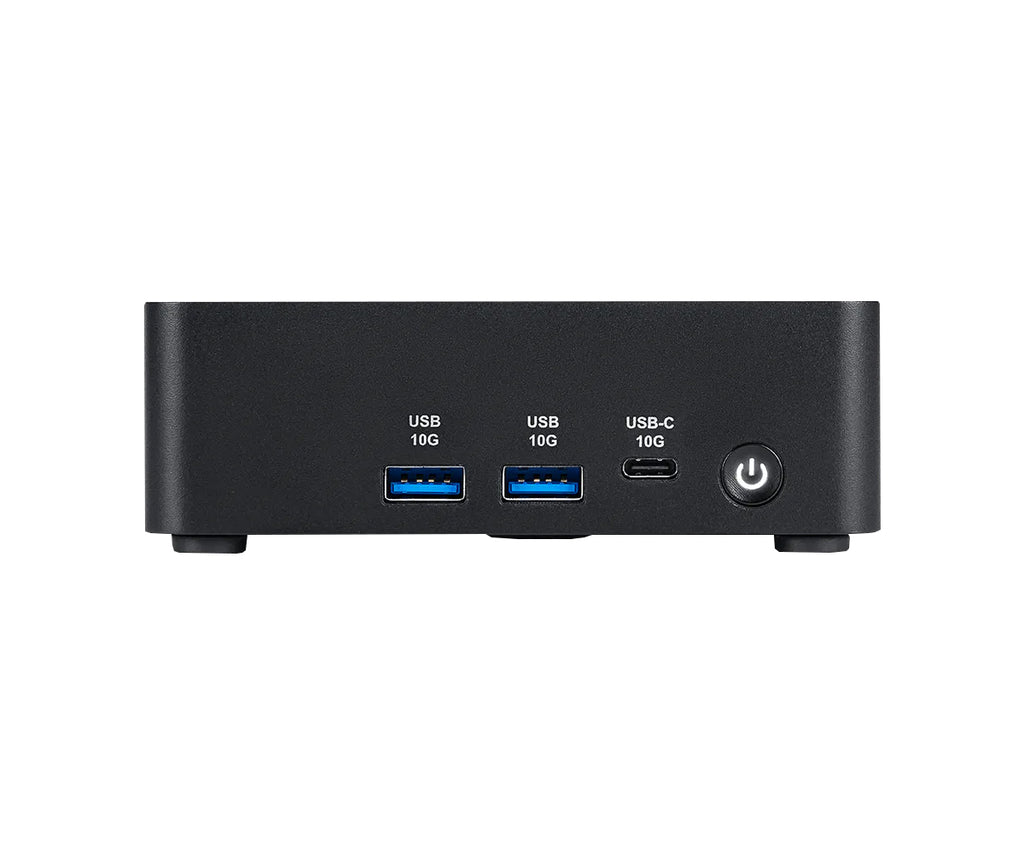

| Front Panel I/O |
2 x USB 3.2 (Gen2) 1 x USB 3.2 (Gen2) Type-C 1 x Power Button |
| Drive Support |
2 x M.2 2280 slot (PCI-E 4.0 x4) |
| OS Support |
Windows 11 Home WIndows 11 Pro |
| Power Supply |
19V DC-IN 120W AC Adapter 100-240Vac, 50/60Hz |
| Case Dimensions |
4.71" x 4.54" x 1.48" (in inches) |
| Mounting |
VESA Mount: 75x75mm, 100x100mm |
| Environmental |
Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-Operating Temperature: -20°C to 60°C (-4°F to 140°F) Operating Humidity: 0% to 85% (non-condensing) Non-Operating Humidity: 0% to 90% (non-condensing) |
| Warranty | 3-Year Manufacturer's Advanced Replacement Warranty |
PRODUCT ID: CUBINUCAI025B
