| Manufacturer | MSI |
| Product ID | CUBINUC1M276B |
| Model Name | Cubi-NUC-276BUS |
| CPU | Intel Core i5-120U Processor 2 P-Cores / 8 E-Cores / 12 Threads P-Cores Frequency: 1.4 - 5.0 GHz E-Cores Frequency: 900 MHz - 3.8 GHz 12W - 55W TDP, 12 MB Intel Smart Cache |
| Chipset | SoC |
| Memory | 2 x DDR5 SODIMM slots Maximum 64GB Capacity 5200 MHz Dual Channel |
| Video | Intel Graphics 1.3 GHz 80 Execution Unitss HDMI 2.1 Max Resolution: 4096x2160@60Hz DisplayPort 1.4 Max Resolution: 4096x2160@60Hz Supports Quad Displays |
| Audio | Realtek ALC256 HD Codec |
| Storage Technology | 1 x 2.5" SATA Connector 1 x M.2 2280 slot (PCI-E 4.0 x4) 1 x M.2 2242 slot (PCI-E 4.0 x4) |
| Connectivity | 1 x Intel I226-V 2.5GbE LAN 1 x Intel I225-V 2.5GbE LAN Intel AX211, WIFI 6E, Bluetooth 5.4 |
| Expansion Slots | 1 x M.2 2230 Slot (Occupied by WIFI) 1 x Micro SD Slot |

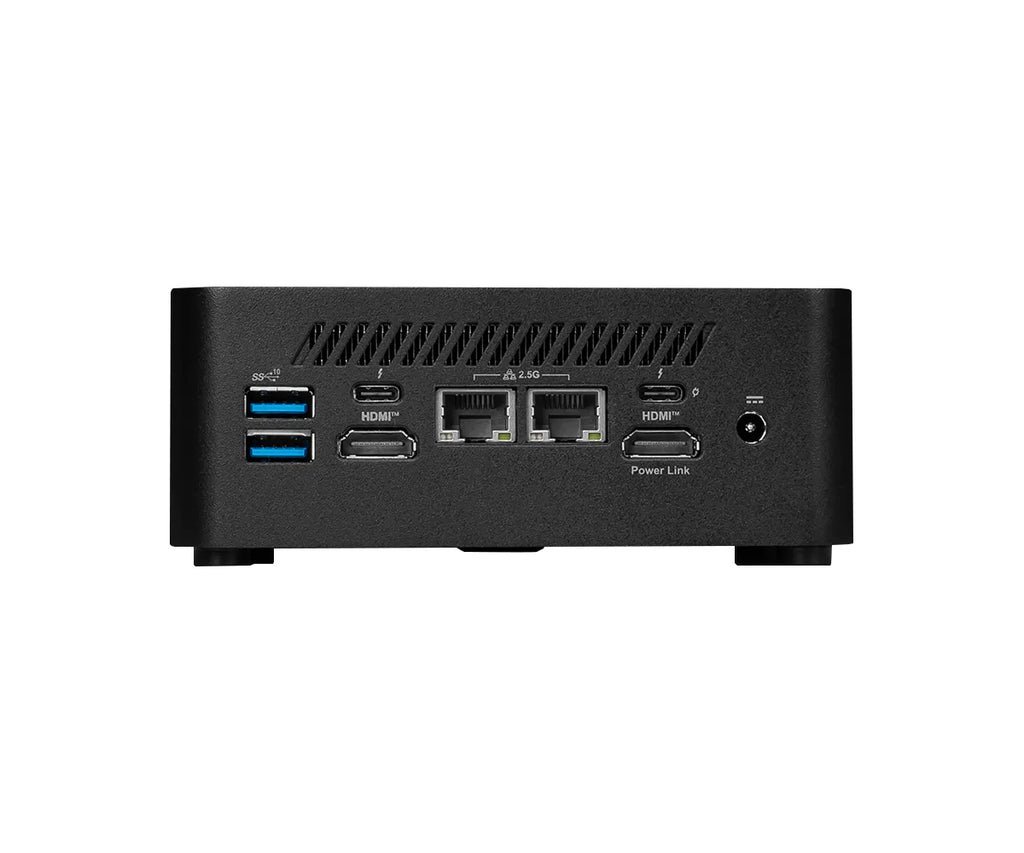

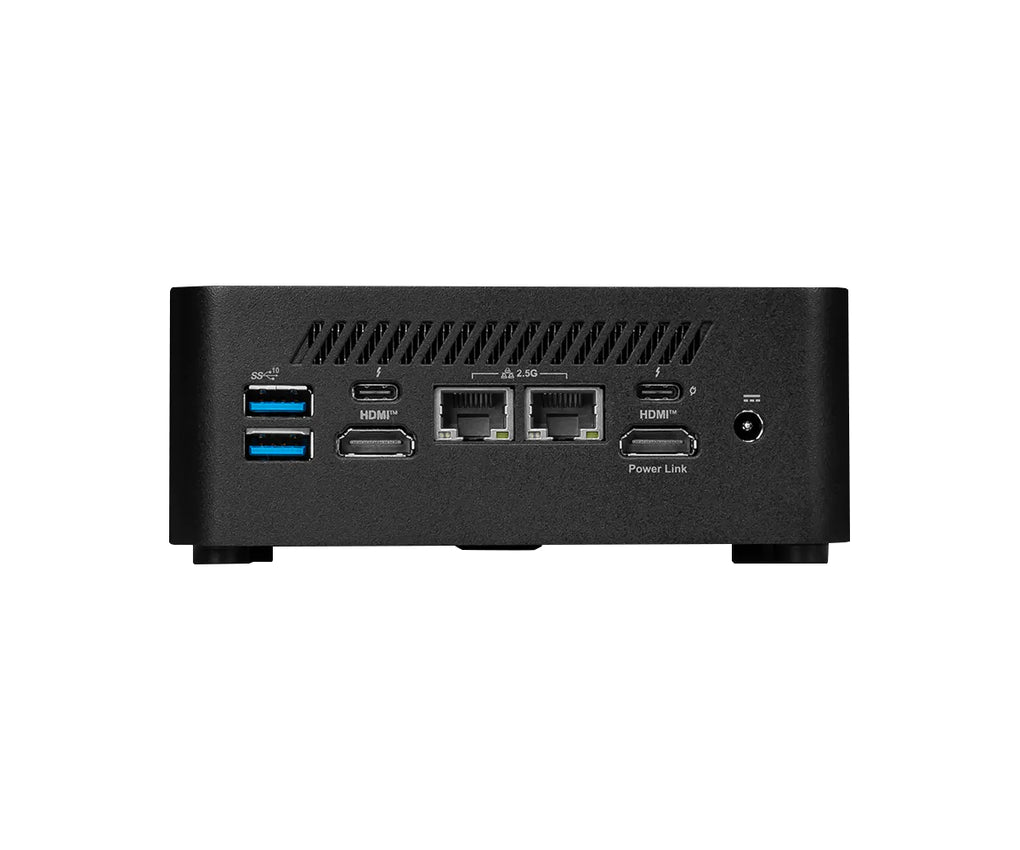

| Rear Panel I/O | 2 x USB 3.1 2 x Thunderbolt 4 (with DP Alt) 2 x HDMI 2 x RJ45 2.5GbE LAN 1 x 19V DC-IN |

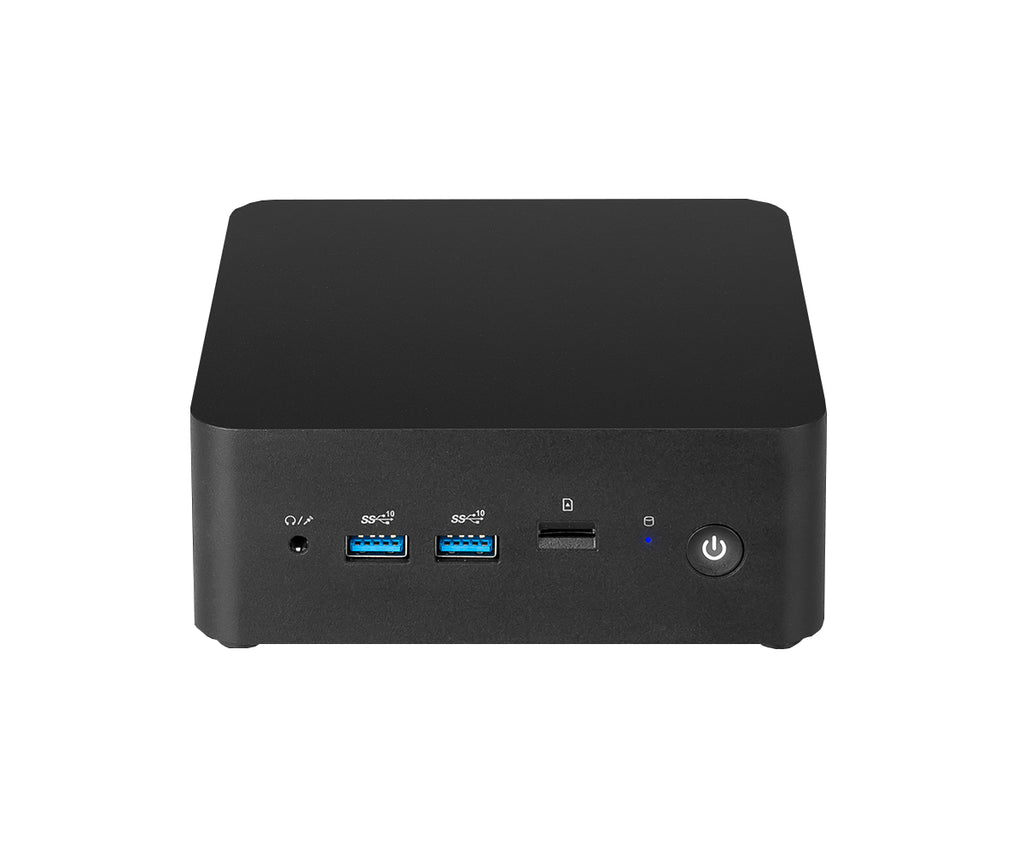

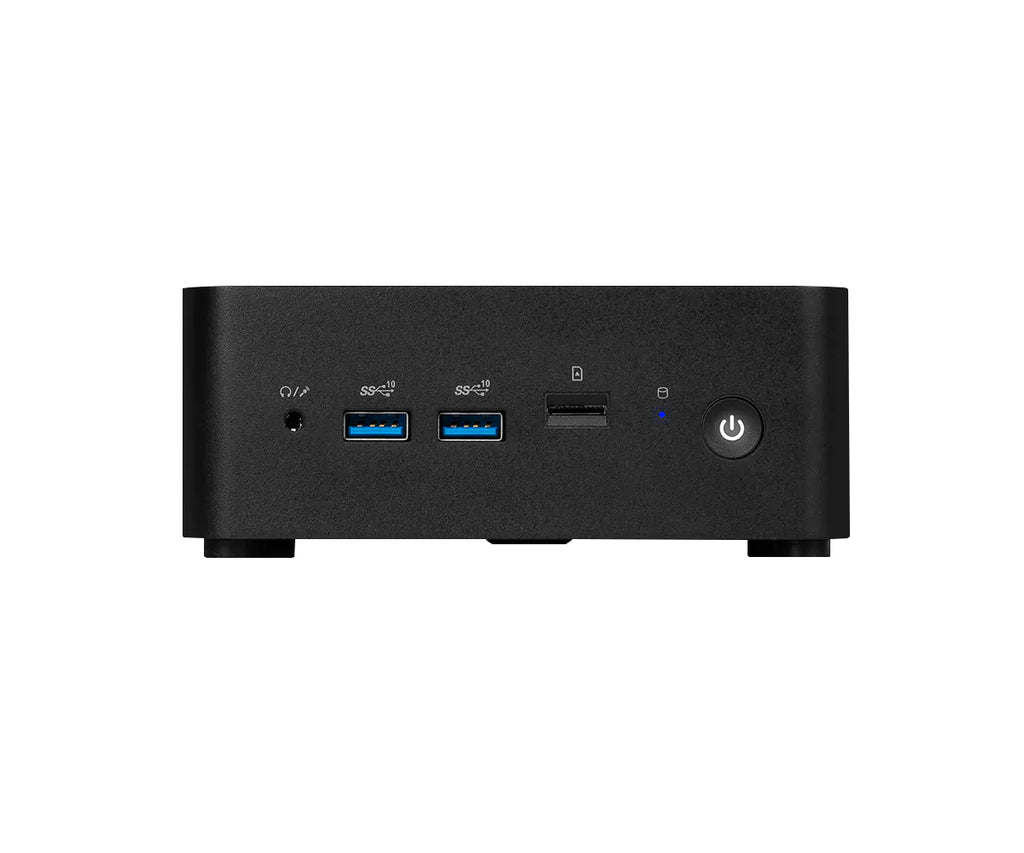

| Front Panel I/O | 1 x Audio I/O 2 x USB 3.1 1 x Micro SD Slot 1 x Status LED (HDD) 1 x Power Button with LED |
| Drive Support | 1 x 2.5" SATA Drive Bay 1 x M.2 2280 slot (PCI-E 4.0 x4) 1 x M.2 2242 slot (PCI-E 4.0 x4) |
| OS Support | Windows 11 Home WIndows 11 Pro |
| Power Supply | 19V DC-IN 120W AC Adapter 100-240Vac, 50/60Hz |
| Case Dimensions | 5.34" x 5.22" x 1.97" (in inches) |
| Mounting | VESA Mount: 75x75mm, 100x100mm |
| Environmental | Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-Operating Temperature: -20°C to 60°C (-4°F to 140°F) Operating Humidity: 0% to 85% (non-condensing) Non-Operating Humidity: 0% to 90% (non-condensing) |
| Warranty | 3-Year Manufacturer's Advanced Replacement Warranty |
PRODUCT ID: CUBINUC1M276B
