| Manufacturer |
MSI |
| Product ID |
CUBINADLS055B |
| Model Name |
Cubi-N-ADL S-055BUS |
| CPU |
Intel N100 Processor, Alder Lake 3.40 GHz 4 Cores / 4 Threads 6W TDP, 6MB Intel Smart Cache |
| Chipset |
SoC
|
| Memory |
1 x DDR4 SODIMM slot Maximum 16GB Capacity 3200 MHz
|
| Video |
Intel UHD Grahpics 750 MHz 24 Execution Units HDMI 2.1 Max Resolution: 4096x2160@60Hz DisplayPort 1.4 Max Resolution: 4096x2160@60Hz Supports Triple Displays
|
| Audio |
Realtek ALC256 2.1 Channel HD Audio |
| Storage Technology |
1 x SATA Connector 1 x M.2 2280 slot (PCI-E 3.0 x2/SATA) |
| Connectivity |
2 x Realtek RTL8111H GbE LAN Intel Wireless AC 3168 Bluetooth 4.2
|
| Expansion Slots |
1 x M.2 2230 Slot (Occupied by WIFI)
|
| Rear Panel I/O |

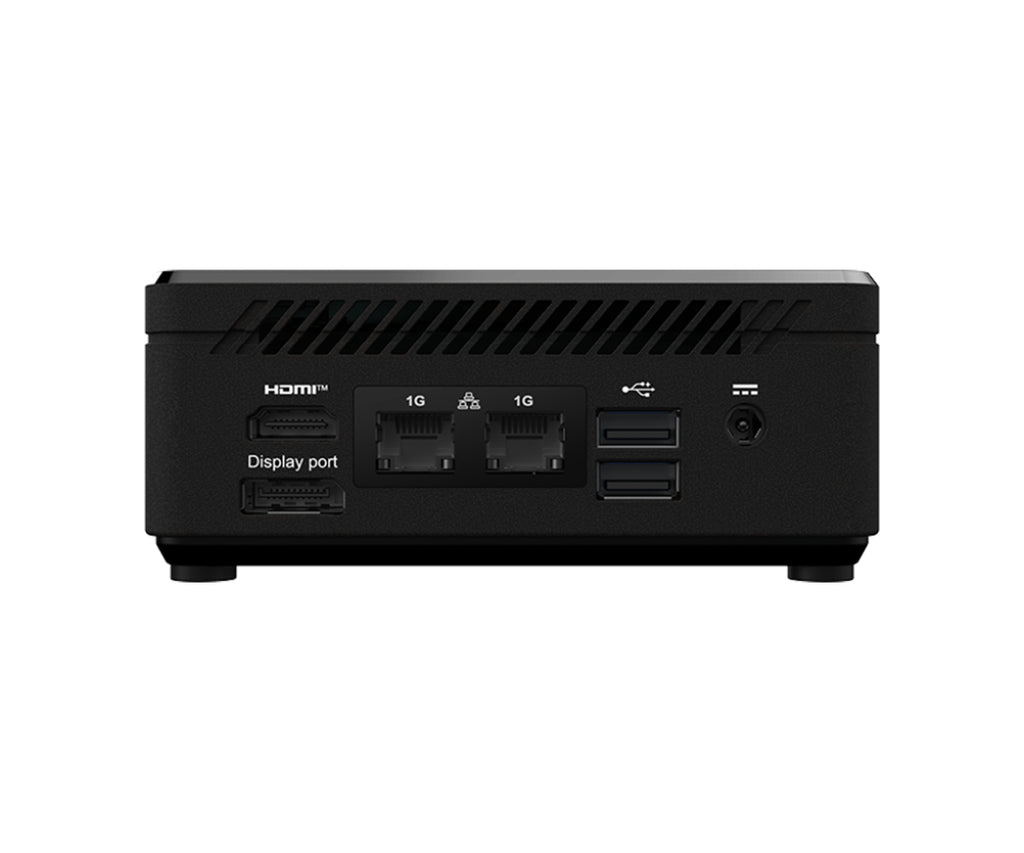

1 x HDMI 1 x DisplayPort 2 x RJ45 GbE LAN 2 x USB 2.0 1 x 19V DC-IN
|
| Front Panel I/O |

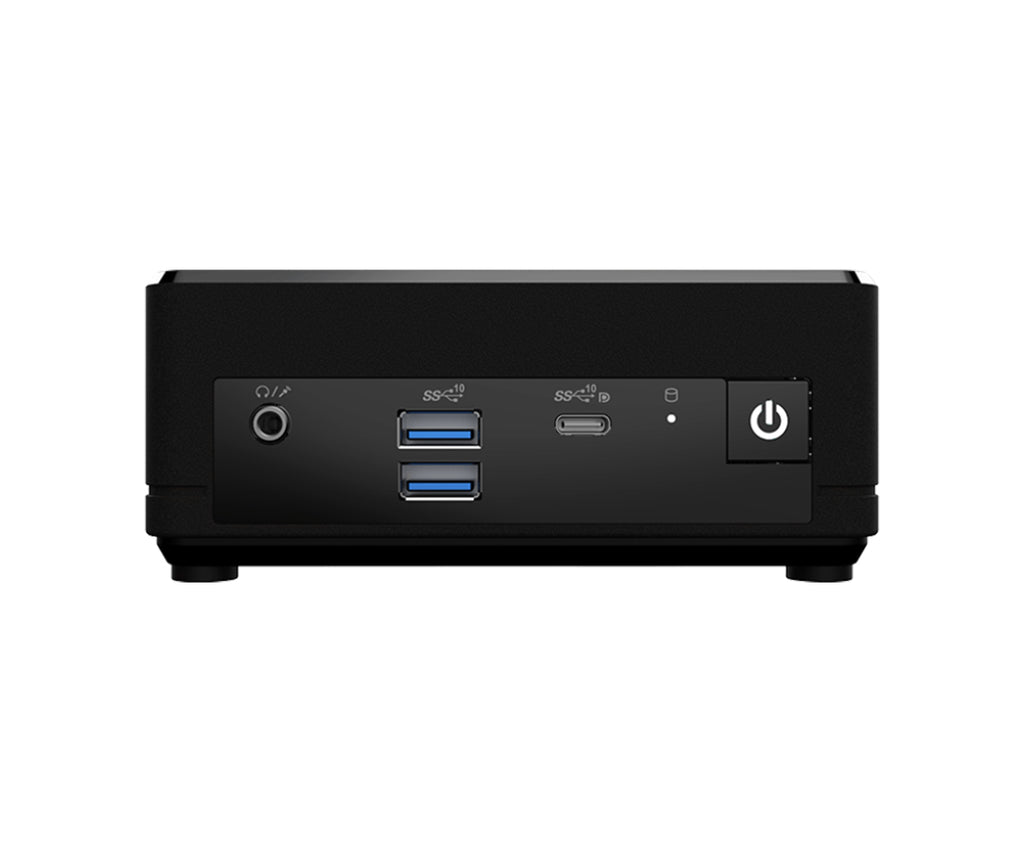

1 x Audio I/O 2 x USB 3.2 (Gen2) 1 x USB 3.2 (Gen2) Type-C 1 x Status LED (HDD) 1 x Power Button
|
| Drive Support |
1 x 2.5" SATA Drive Bay 1 x M.2 2280 slot (PCI-E 3.0 x2/SATA)
|
| OS Support |
Windows 11 Home WIndows 11 Pro
|
| Power Supply |
19V DC-IN 65W AC Adapter 100-240Vac, 50/60Hz
|
| Case Dimensions |
4.41" x 4.57" x 1.77" (in inches)
|
| Mounting |
VESA Mount: 100x100mm
|
| Environmental |
Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-Operating Temperature: -20°C to 60°C (-4°F to 140°F) Operating Humidity: 0% to 85% (non-condensing) Non-Operating Humidity: 0% to 90% (non-condensing)
|
| Compliance |
FCC (Class B) CB/CE UL (CUL) BSMI VCCI RCM (C-Tick) |
| Warranty |
3-Year Manufacturer's Advanced Replacement Warranty |
