Manufacturer | Intel |
Product ID | BXNUC10I3FNK1 |
CPU | Intel Core i3-10110U Processor 2.10 - 4.10 GHz 2 Cores / 4 Threads 15W TDP, 4MB Smart Cache |
Chipset | SoC |
Memory | 2 x DDR4 SODIMM slots Maximum 64GB Capacity 1.2V, Unbuffered Non-ECC Only |
Video | Intel UHD Graphics 300 MHz - 1.00 GHz HDMI Max Resolution: 4096x2304@24Hz DP via USB Type-C Max Resolution: 4096x2304@60Hz |
Audio | Intel HD Audio 7.1 Surround Audio via HDMI |
Storage Technology | M.2: PCI-E 3.0 x4 or SATA3 |
Connectivity | 1 x Intel I219-V GbE LAN Intel WI-FI 6 AX200 (802.11ax, 2x2, Up to 2.4 Gbps) Bluetooth 5 Consumer Infrared Receiver on front |
Expansion Slots | 1 x SDXC Card Slot with UHS-II Support |

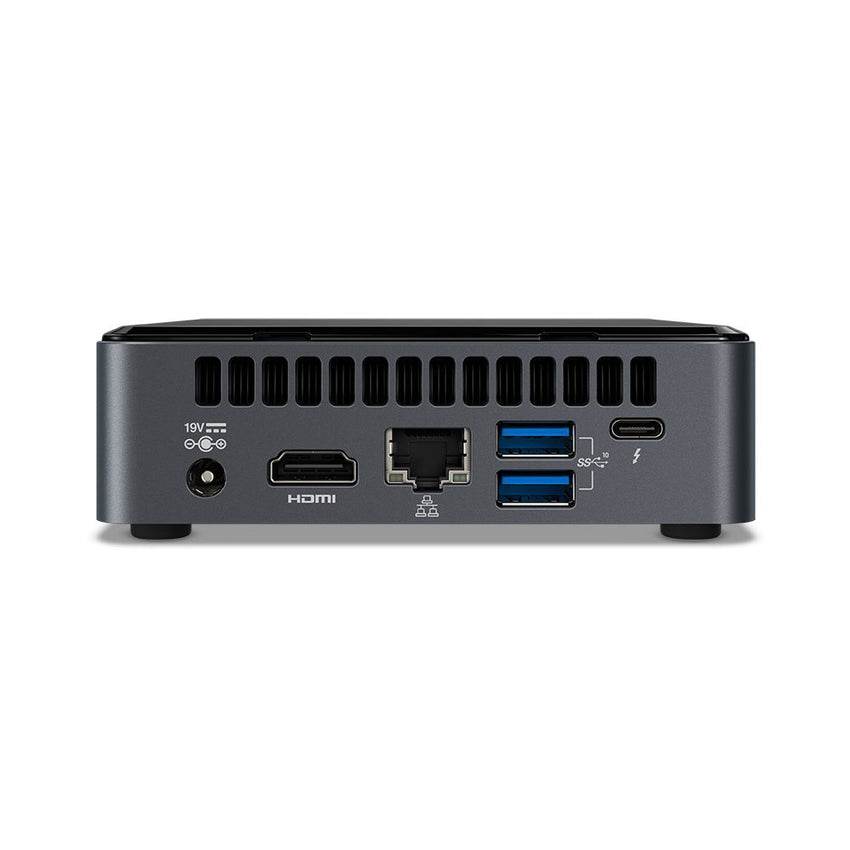

Rear Panel I/O | 1 x 19V DC-IN 1 x HDMI 2.0 1 x RJ45 GbE LAN 2 x USB 3.1 (Gen2) Type-A 1 x USB 3.1 (Gen2) Type-C 1 x Kensington Lock |

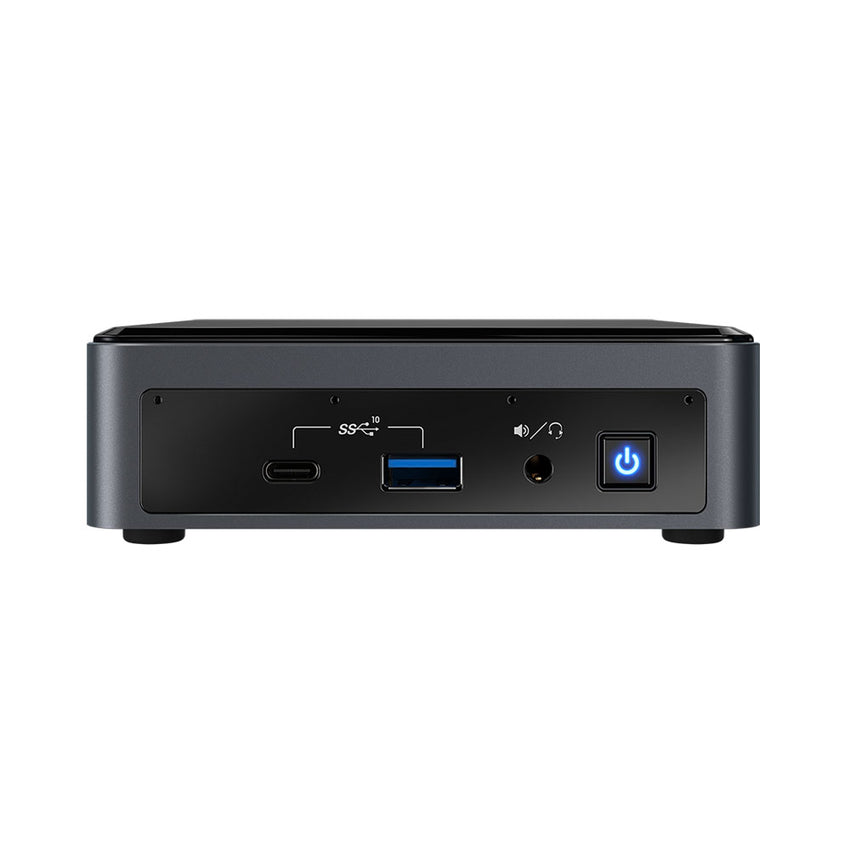

Front Panel I/O | 1 x USB 3.1 (Gen2) Type-C with Charging 1 x USB 3.1 (Gen2) Type-A 1 x Audio I/O 1 x Power Button with LED |
Side Panel I/O | 1 x SDXC Card Slot |
Drive Support | 1 x M.2 2242/2280 slot (PCI-E 3.0 x4 or SATA) |
Power Supply | 19V DC-IN 120W 19V AC-DC Power Adapter |
Case Dimensions | 4.6" x 4.4" x 1.5" 117 x 112 x 38mm |
Mounting | VESA Mount Kit |
Environmental | Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
Warranty | 3-Year Manufacturer's Limited Warranty |
