| Manufacturer | Jetway |
| Product ID | BFTADN1-N150-IT-A1 |
| Model Name | BFTADN1 |
| CPU | Intel N150 Processor 4 Cores 3.60 GHz 6W TDP, 6 MB Intel Smart Cache |
| Chipset | SoC Intel PTT (fTPM) + Nuvoton TPM 2.0 |
| Memory | 1 x DDR5 SODIMM slot 4800 MHz Maximum 32GB Capacity |
| Video | Intel UHD Graphics HDMI 2.0b Max Resolution: 4096x2160@60Hz DisplayPort 1.4a Max Resolution: 4096x2304@60Hz 2 x USB Type-C DP1.4a Max Resolution: 4096x2304@60Hz Supports Triple Displays |
| Audio | Realtek ALC897 HD Audio |
| Storage Technology | 1 x M.2 2260/2280 slot: SATA or PCI-E 3.0 x2 NVMe (M-Key) |
| Connectivity | 2 x Intel I226-V 2.5GbE LAN Wireless WiFi Bluetooth |
| Expansion Slots | 1 x M.2 2230 slot (Occupied by WiFi Module) |

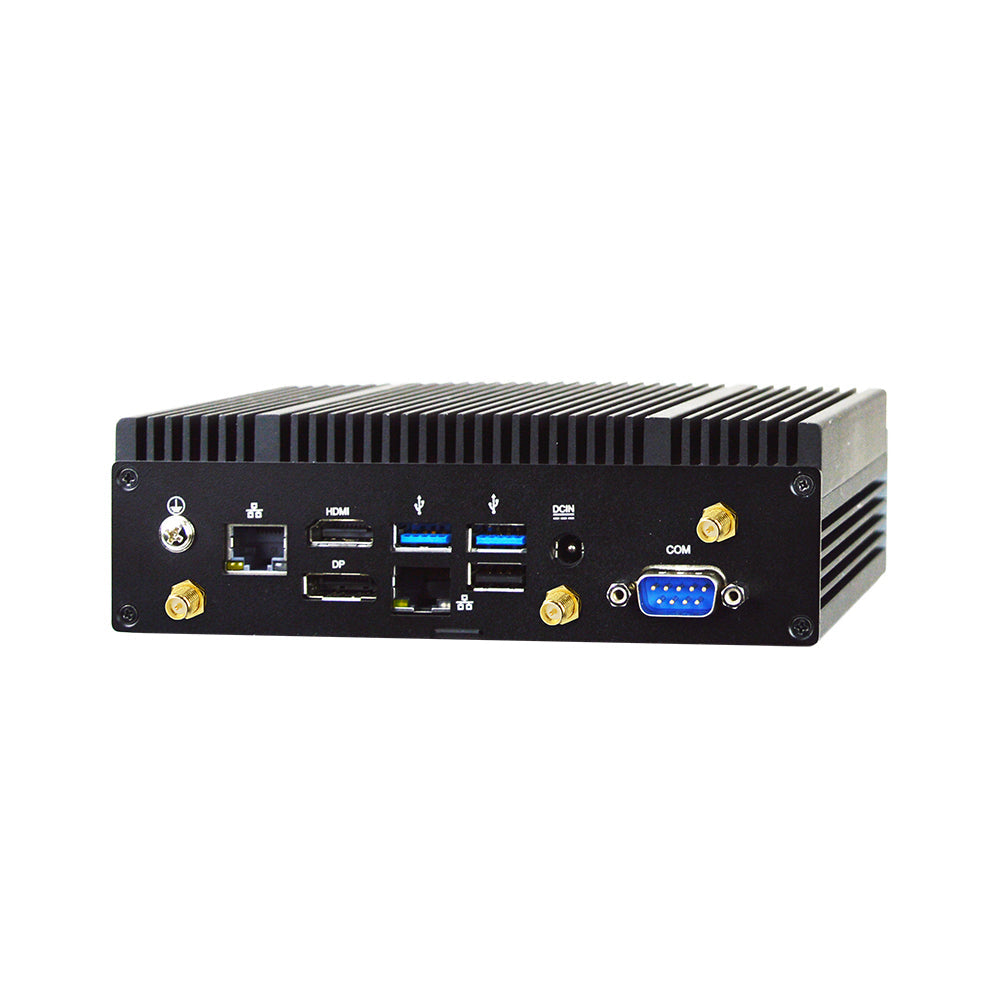

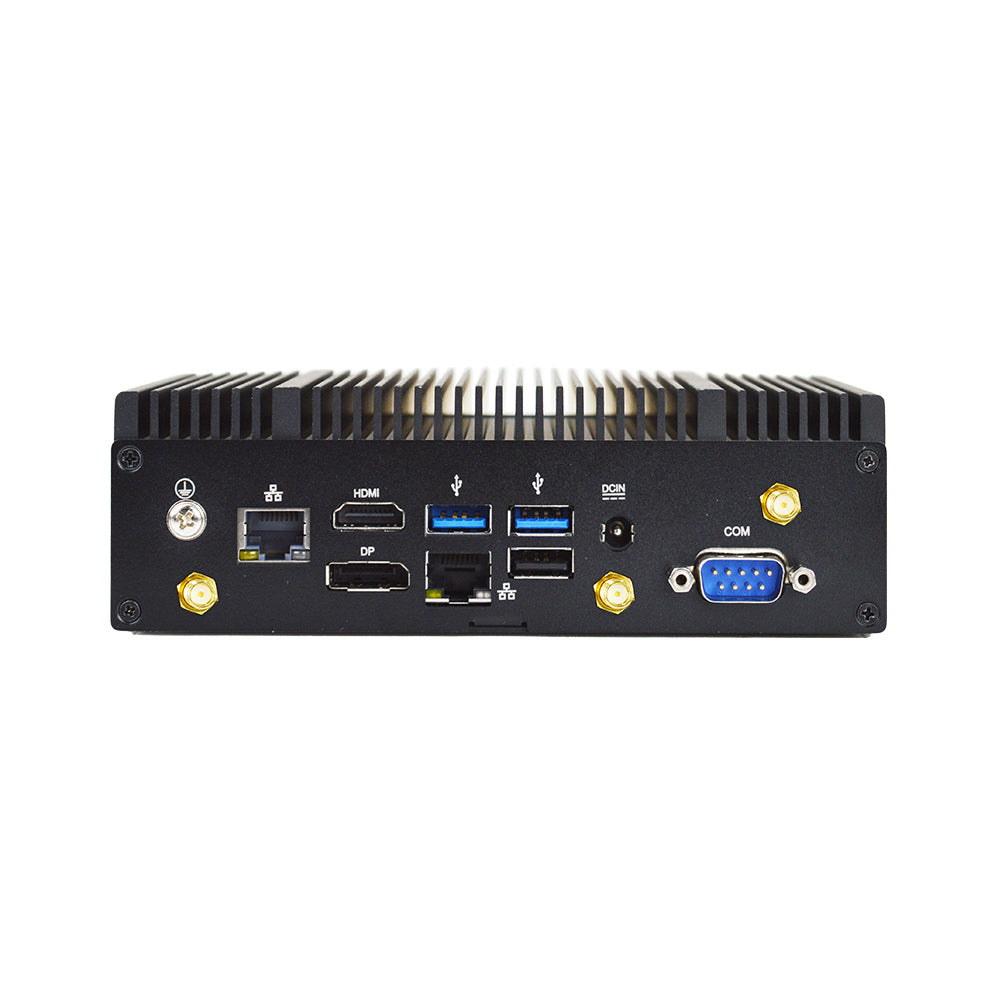

| Rear Panel I/O | 2 x Antenna Holes 2 x RJ45 2.5GbE LAN 1 x USB 2.0 2 x USB 3.2 (Gen2) Type-A 1 x HDMI 2.0b 1 x DisplayPort 1.4a 1 x GPIO 1 x 12-19V DC-IN 1 x Grounding Screw |

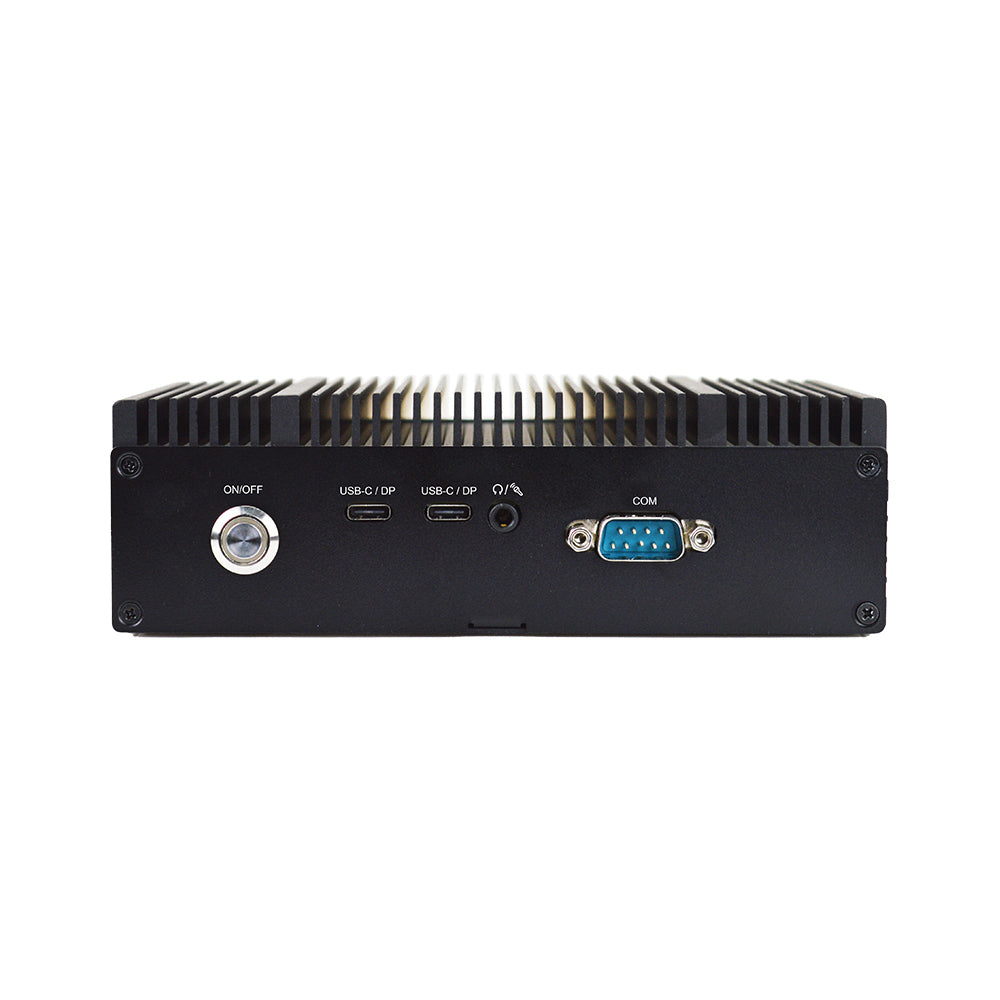

| Front Panel I/O | 1 x Power Button with Power LED 2 x USB 3.2 (Gen2) Type-C (Supports DP ALT Mode) 1 x Combo Audio Jack (Line-out/MIC-in) 1 x Serial Port (RS-232/422/485) |
| Drive Support | 1 x M.2 2260/2280 slot (M-Key, SATA or PCI-E 3.0 x2 NVMe) |
| OS Support | Windows 10 Windows 10 IoT Enterprise 64-bit Windows 11 Windows 11 IoT Enterprise 64-bit CentOS 9, Debian 11.4, Fedora 36-1.5 OpenSUSE 15.5, Ubuntu 22.04, RedHat Enterprise 9.2 |
| Power Supply | 12-19V DC-IN 40W 12V AC-DC Adapter |
| Case Dimensions | 160 x 109.2 x 50.5mm 6.3" x 4.3" x 2.0" (in inches) |
| Mounting | Includes Wallmount Brackets Includes DIN Rail Kit |
| Environmental | Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Humidity: 10% to 95% @ 40°C (non-condensing) |
| Compliance | CE, FCC Class A, LVD, EU RoHS, China RoHS, ErP For Barebone CE, FCC, TUV, UL, CCC, CB, ErP For Power Adapter |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: BFTADN1-N150-IT-A1
