| Manufacturer | Tyan |
| Product ID | B8056T70V8E6HR |
| Model Number | TS70B8056 |
| CPU | Supports AMD EPYC 9004 Series Processor Socket SP5 Maximum 400W (cTDP) |
| Chipset | SoC |
| Memory | 24 x DDR5 DIMM slots Supports RDIMM / RDIMM-3DS 4800/4400/4000 MHz (2DPC) Maximum 6144GB Capacity 12 Channels per CPU |
| Video | Aspeed AST2600 |
| Storage Technology | Backplane: 3 x MiniSAS HD Connectors, 2 x SlimSAS Connectors 2 x M.2 22110/2280 slots (PCI-E 4.0 x4) 1 x MCIO x4 Connectors 8 x MCIO x8 Connectors |
| Connectivity | 1 x Realtek RTL8211F GbE LAN |
| Expansion | 2 x PCI-E 5.0 x16 slots 1 x PCI-E 5.0 x8 slot 1 x OCP 3.0 Mezzanine slot (PCI-E 5.0 x16) |

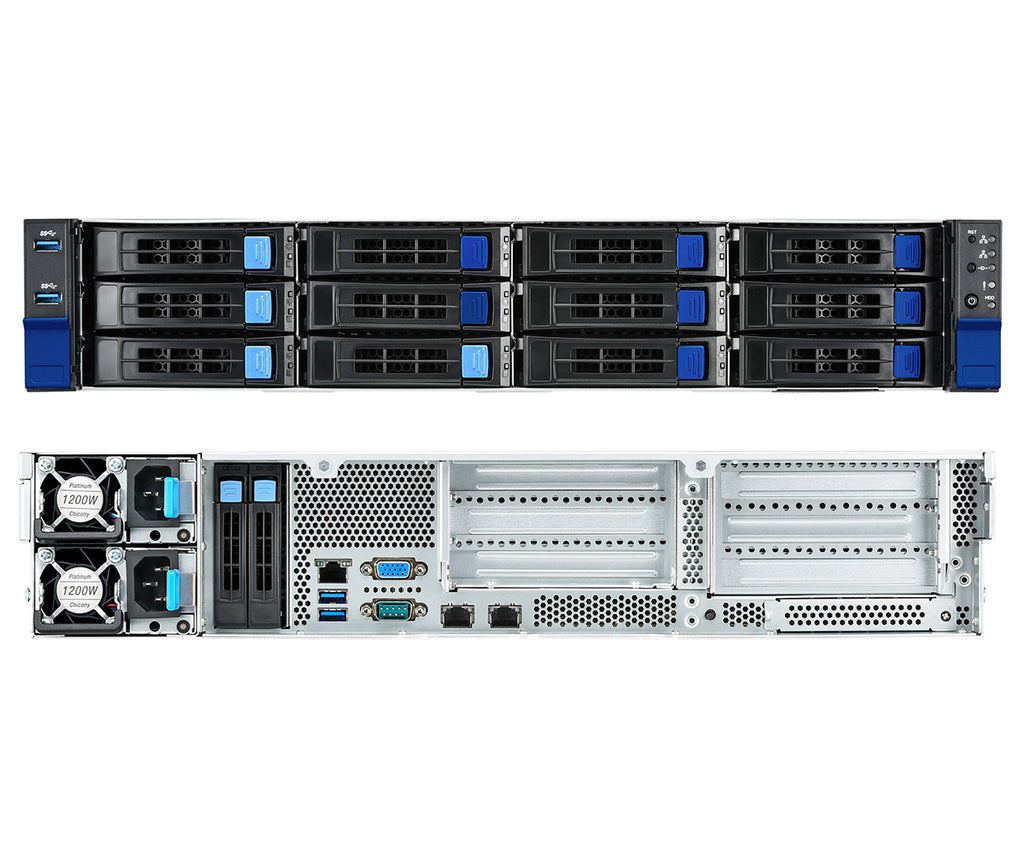

| Rear I/O | 1 x RJ45 GbE Dedicated Management LAN 2 x USB 3.2 (Gen1) 1 x VGA 1 x COM |
| Front Panel I/O | 2 x USB 3.2 (Gen1) 1 x Reset Button 1 x ID Button 1 x Power Button 5 x Status LED (LAN, HDD, ID, System Event) |
| Drive Support | 4 x 3.5"/2.5" NVMe/SATA Hotswap Drive Bays 8 x 3.5"/2.5" SATA Hotswap Drive Bays 2 x 2.5" NVMe Hotswap Drive Bays (Rear) 2 x M.2 2280/22110 slot (PCI-E 3.0 x4) |
| Power Supply | 1+1 Redundant 80-PLUS Platinum CRPS 1000W (100-127V AC Input) 1200W (200-240V AC Input) 50/60 Hz |
| Cooling | 3 x 80x56mm Case Fans |
| Case Dimensions | 2U Rackmount 27.56" x 17.26" x 3.42" (in inches) 700 x 438.5 x 87mm |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 95% at 35°C (non-condensing) Non-Operating Humidity: 95% at 35°C (non-condensing) |
| Compliance | FCC (SDoC) Class A CE (DoC) Class A VCCI RCM CB/LVD RoHS 6/6 Compliant |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: B8056T70V8E6HR
