Manufacturer	Mitac
Product ID	B8056T70AE26HR-2T-HE-TU
Model Number	TS70AB8056
CPU	Supports AMD EPYC 9005/9004 Series Processor, Turin/Genoa Socket SP5 Maximum 400W TDP
Chipset	SoC
Memory	24 x DDR5 DIMM slots Maximum 6144GB Capacity RDIMM/3DS RDIMM 5200 MHz 12 Channel
Video	Aspeed AST2600
Storage Technology	2 x M.2 22110/2280 slots (PCI-E 4.0 x4) 2 x P2305-4E Storage Mezzanine 9 x SFF-TA-1016 (MCIO 8x) for 18 x NVMe
Connectivity	2 x Intel X710-AT 10G LAN 1 x Realtek RTL8211F GbE Dedicated IPMI
Expansion	1 x PCI-E 5.0 x8 slot 1 x OCP 3.0 Mezzanine slot (PCI-E 5.0 x16)

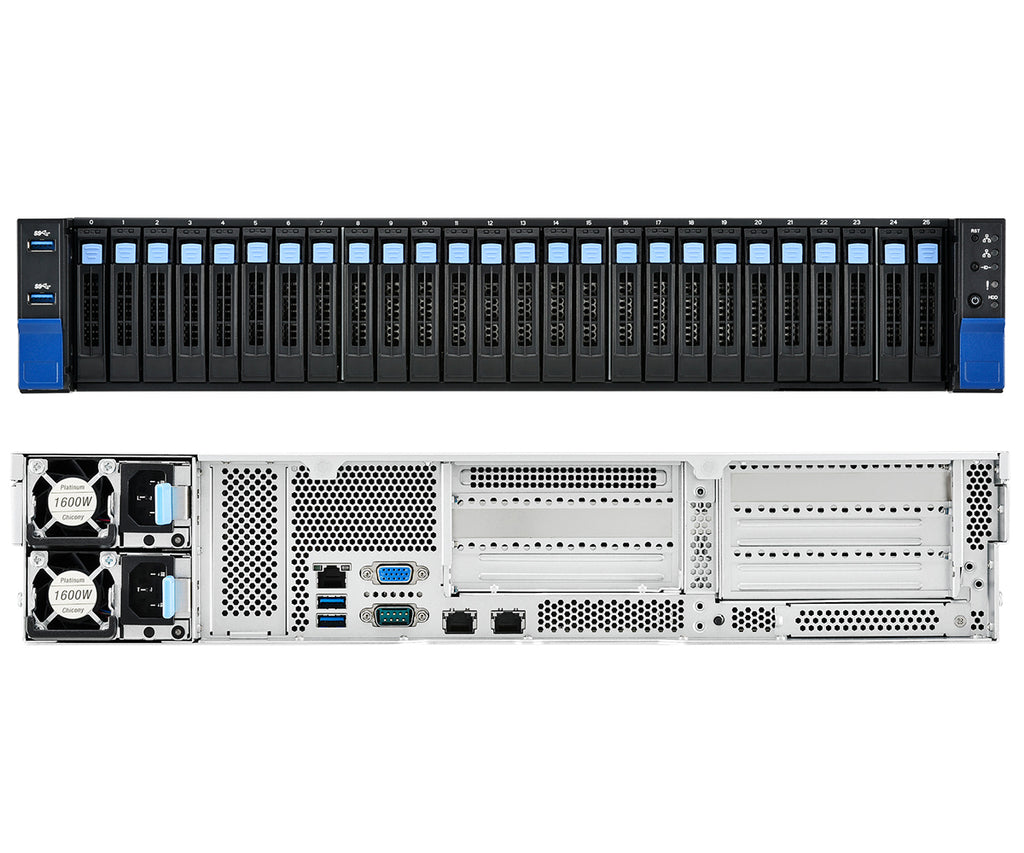

Rear I/O	1 x RJ45 GbE Dedicated IPMI 2 x USB 3.0 1 x VGA 1 x COM 2 x RJ45 10G LAN
Front Panel I/O	2 x USB 3.2 (Gen1) 1 x RST Button 5 x Status LED (HDD, ID, System Event, LAN) 1 x UID Button 1 x Power Button with LED
Drive Support	2 x M.2 22110/2280 slots (PCI-E 4.0 x4) 26 x 2.5" NVMe Hotswap Drive Bays
Power Supply	1+1 1600W 80-PLUS Titanium CRPS 100-127Vac/12A 200-240Vac/10A 50/60Hz
Cooling	3 x 80x56mm Case Fans

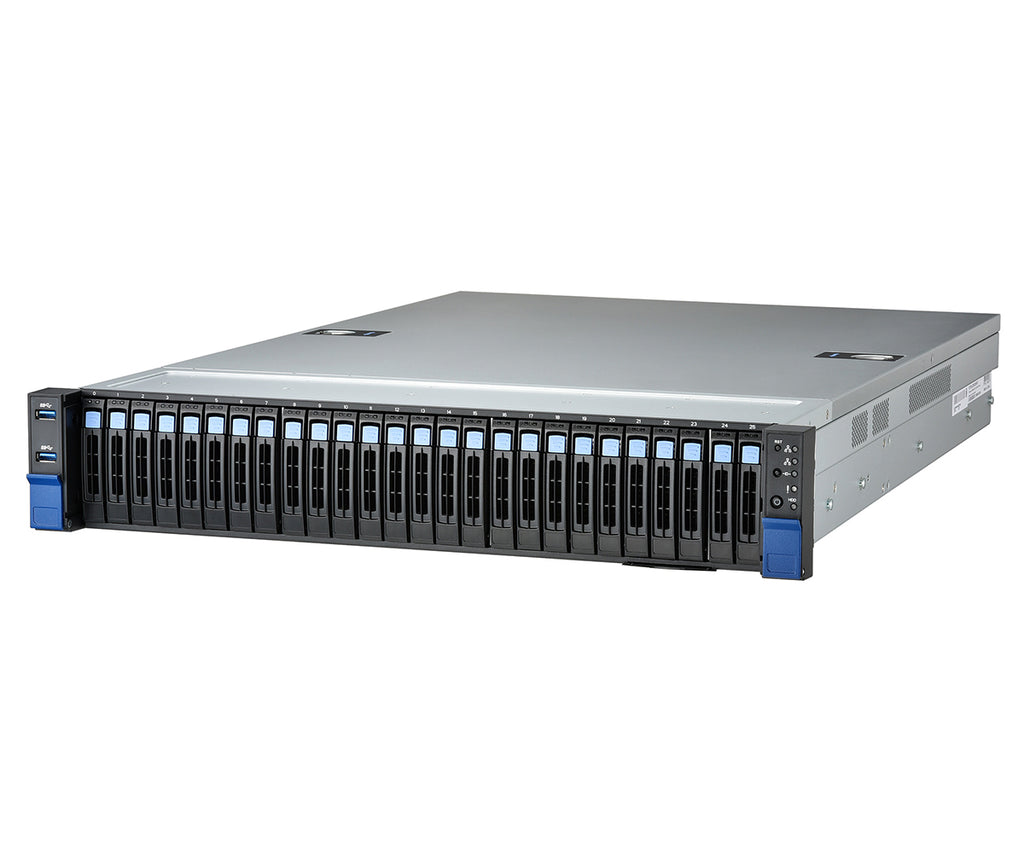

Case Dimensions	2U Rackmount 27.56" x 17.26" x 3.42" (in inches) 700 x 438.5 x 87mm
Environmental	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 90% at 35°C (non-condensing) Non-Operating Humidity: 90% at 35°C (non-condensing)
Compliance	FCC (SDoC) Class A CE (DoC) Class A CB/LVD RCM VCCI BSMI RoHS 6/6 Compliant
Warranty	3 Year Manufacturer's Limited Warranty
