| Manufacturer | Mitac |
| Product ID | B7136T70V10E4HR |
| Model Number | TS70B7136 |
| CPU |
Supports 2 x Intel 5th/4th Gen Xeon Scalable Processor Emerald Rapids/Sapphire Rapids Socket LGA 4677 Maximum 350W TDP |
| Chipset | Intel C741 |
| Memory |
16 x DDR5 RDIMM slots (8 per CPU) 5600/4400 MHz Maximum 2048GB Capacity 8 Channel |
| Video | Aspeed AST2600 |
| Storage Technology |
2 x M.2 2280 slots (PCI-E 4.0 x4) 10 x SATA Connectors 4 x MCIO x4 Connectors RAID 0/1/10/5 (Intel RSTe) |
| Connectivity |
1 x Realtek RTL8211F GbE LAN (Dedicated IPMI) |
| Expansion |
2 x PCI-E 5.0 x16 slots (Full Height, Half Length) 2 x PCI-E 5.0 x8 slots (Full Height, Half Length) 1 x PCI-E 5.0 x8 slot (x4 link) (Full Height, Half Length) 1 x OCP 3.0 Mezzanine slot (PCI-E 5.0 x16) |

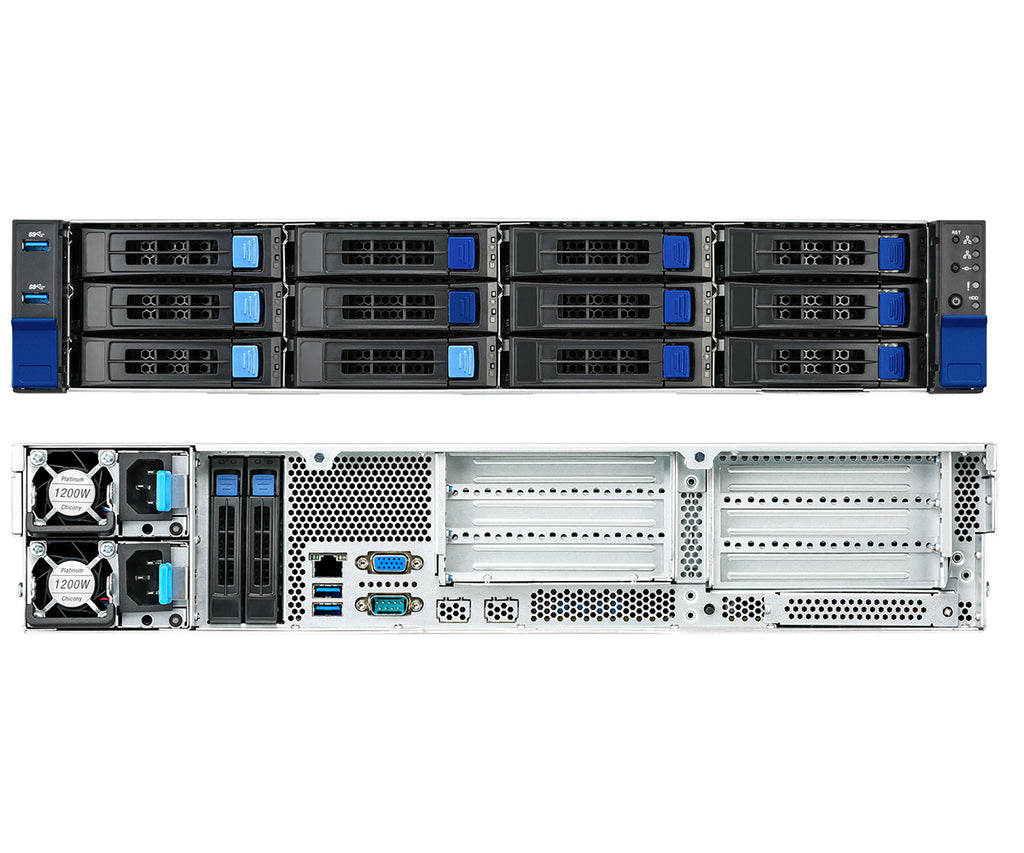

| Rear I/O |
1 x RJ45 GbE Dedicated IPMI 2 x USB 3.2 (Gen1) 1 x VGA 1 x COM |
| Front Panel I/O |
2 x USB 3.2 (Gen1) 1 x Reset Button 5 x Status LED (LAN, ID, HDD, BMC Event) 1 x ID Button 1 x Power Button |
| Drive Support |
2 x M.2 2280 slots (PCI-E 4.0 x4) 4 x 3.5"/2.5" NVMe/SATA Drive Bays 8 x 3.5"/2.5" SATA Drive Bays |
| Power Supply |
1+1 80-PLUS Platinum CRPS 100-127Vac Input: 1000 Watts 200-240Vac Input: 1200 Watts 50/60Hz |
| Cooling |
4 x 80x38mm Middle Fans |
| Case Dimensions |
2U Rackmount 27.56" x 17.26" x 3.42" (in inches) 700 x 438.5 x 87mm |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 90% at 35°C (non-condensing) Non-Operating Humidity: 90% at 35°C (non-condensing) |
| Compliance |
FCC (SDoC) Class A CE (DoC) Class A CB/LVD RCM VCCI BSMI RoHS 6/6 Compliant |
| Warranty | 3 Year Manufacturer's Limited Warranty |
PRODUCT ID: B7136T70V10E4HR
