| Manufacturer | Mitac |
| Product ID | B7136T70AV12E8HR |
| Model Number | TS70AB7136 |
| CPU | Supports 2 x 5th/4th Intel Xeon Scalable Processor, Emerald Rapids/Sapphire Rapids Socket LGA 4677 Max up to 350W TDP |
| Chipset | Intel C741 |
| Memory | 16 x DDR5 DIMM slots (8 Per CPU) 5600/4800/4400 MHz Maximum 2048GB Capacity 8 Channel per CPU |
| Video | Aspeed AST2600 |
| Storage Technology | 12 x SATA Connectors Supports Intel RSTe RAID 0/1/10/5 2 x M.2 2280 slots (PCI-E 4.0 x4) 8 x MCIO x4 Connectors |
| Connectivity | 1 x Realtek RTL8211F GbE Dedicated IPMI |
| Expansion | 2 x PCI-E 5.0 x16 slots (Full Height, Half Length) 2 x PCI-E 5.0 x8 slots (Full Height, Half Length) 1 x PCI-E 5.0 x8 slot (x1 Link, Full Height, Half Length) 1 x OCP 3.0 Mezzanine slot (PCI-E 5.0 x16) |

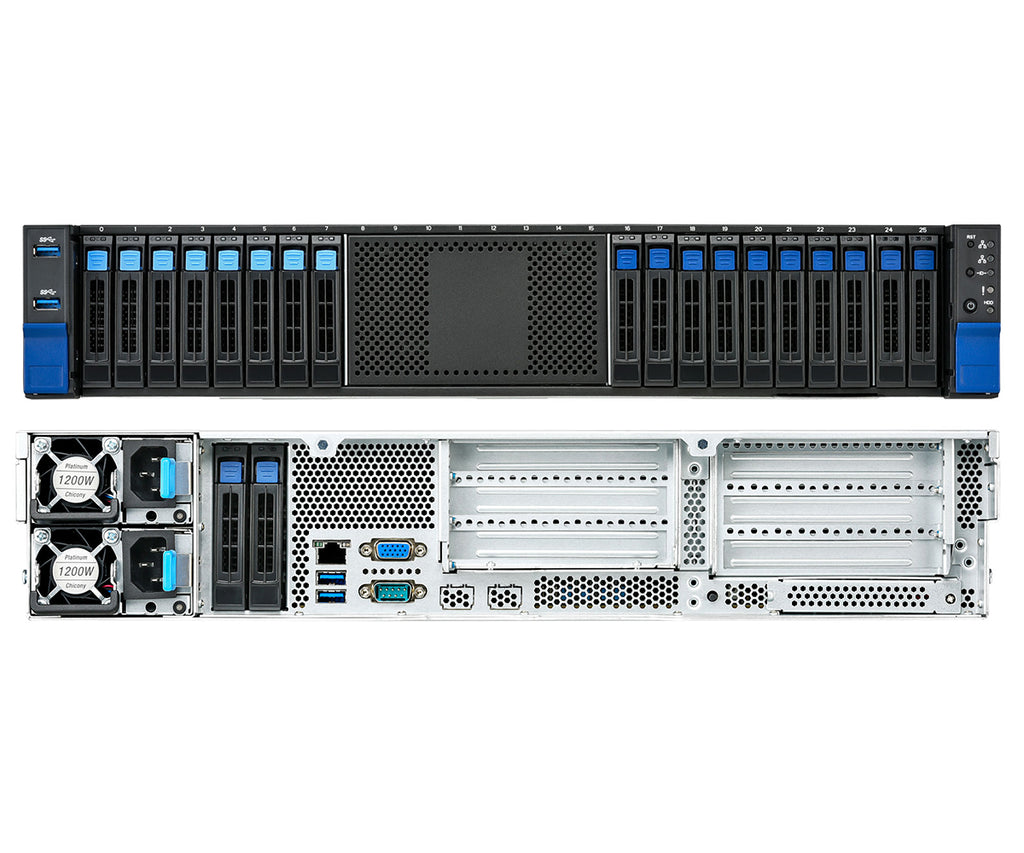

| Rear I/O | 1 x RJ45 GbE Dedicated IPMI 2 x USB 3.2 (Gen1) 1 x VGA 1 x COM |
| Front Panel I/O | 2 x USB 3.2 (Gen1) 1 x ID Button 1 x Reset Button 1 x Power Button 5 x Status LED (HDD, ID, LAN, BMC Event) |
| Drive Support | 8 x U.2 NVMe Drive Bays 10 x 2.5" SATA Drive Bays 2 x 2.5" SATA Drive Bays (Rear) |
| Power Supply | 1+1 Redundant 80+ Platinum CRPS AC Input 100-127V: 1000 Watts AC Input 200-240V: 1200 Watts 50/60 Hz |
| Cooling | 4 x 80x80mm Fans |

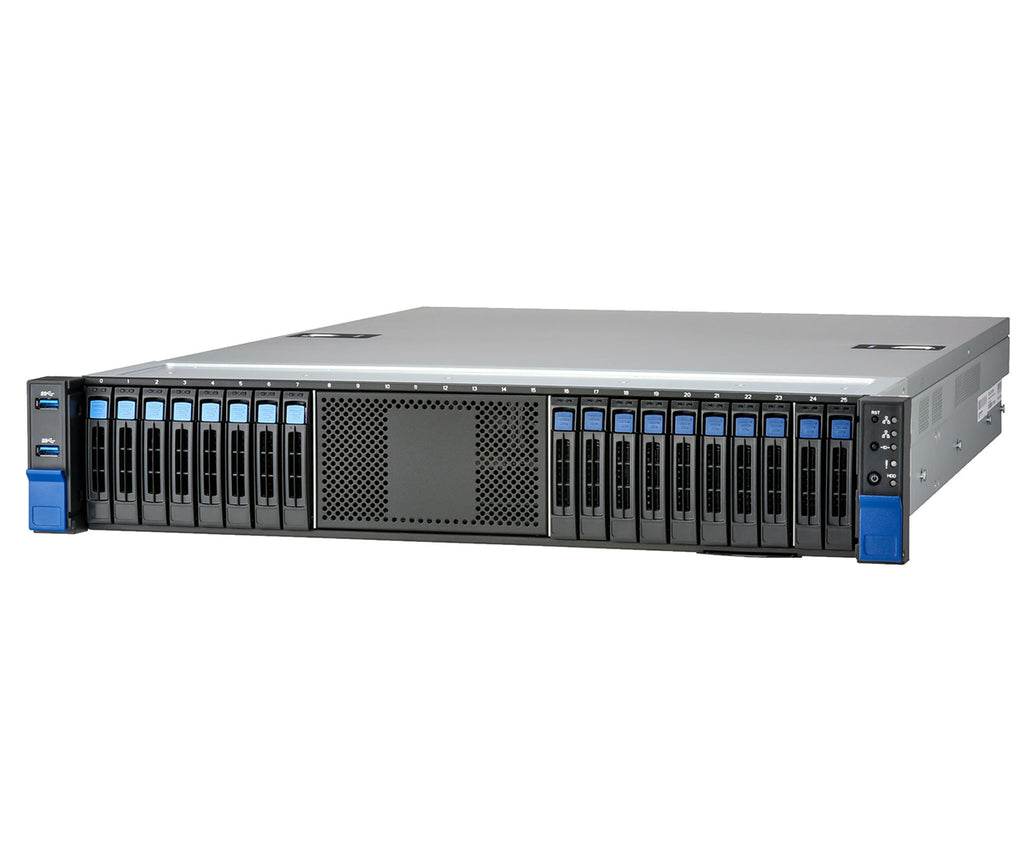

| Case Dimensions | 2U Rackmount 27.56" x 17.26" x 3.42" (in inches) 700 x 438.5 x 87mm |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 90% at 35°C (non-condensing) Non-Operating Humidity: 90% at 35°C (non-condensing) |
| Compliance | FCC (SDoC) Class A CE (DoC) Class A CB/LVD RCM VCCI BSMI RoHS 6/6 Compliant |
| Warranty | 1 Year Manufacturer's Limited Warranty |
PRODUCT ID: B7136T70AV12E8HR
