| Manufacturer | Jetway |
| Product ID | B382FMTU1-A211 |
| Model Name | B382FMTU1 |
| System Type | Barebone (memory and storage not included) |
| CPU | Intel® Core™ Ultra 5 125U Processor (Meteor Lake) 12 Cores (2P + 8E + 2LP-E) / 14 Threads Up to 4.30 GHz, 12MB Cache 15W TDP Integrated Intel® AI Boost NPU |
| Chipset | Intel® SoC |
| Graphics | Intel® Graphics |
| Security | TPM 2.0 (dTPM) |
| BIOS | UEFI |
| Memory | 2 x DDR5 SO-DIMM Sockets Dual Channel, up to 5600 MT/s Up to 96GB |
| Storage | 1 x M.2 M-Key 2242/2280 (PCIe 4.0 x4 NVMe / SATA III) SATA Storage Available Upon Request |
| Display | 1 x HDMI® 2.0b (4096 x 2160 @ 60Hz) 1 x DisplayPort 1.4 (4096 x 2160 @ 60Hz) 1 x USB Type-C DP 1.4 (4096 x 2160 @ 60Hz) Supports 3 Independent Displays |
| Ethernet | 1 x 2.5GbE LAN (RJ45, Intel® I226-V) 1 x 2.5GbE LAN (RJ45, Intel® I226-LM) Wake on LAN Supported |
| Audio | Realtek Audio Codec 3W Amplifier |
| Expansion Slots | 1 x M.2 E-Key 2230 (USB 2.0 / PCIe 3.0 x1, CNVi) for Wi-Fi/BT 1 x M.2 B-Key 3042/3052 (USB 3.2 / PCIe 3.0 x2) for 4G/5G 1 x Nano SIM Card Slot |

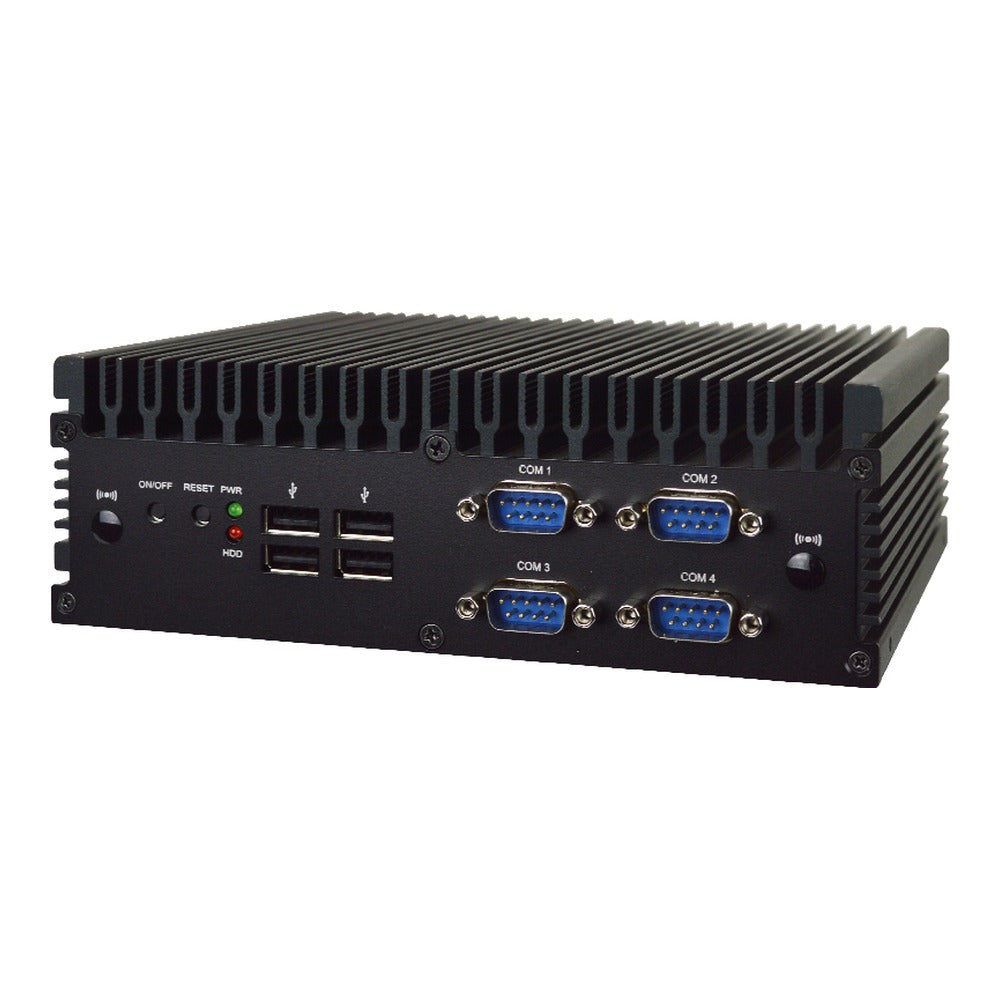

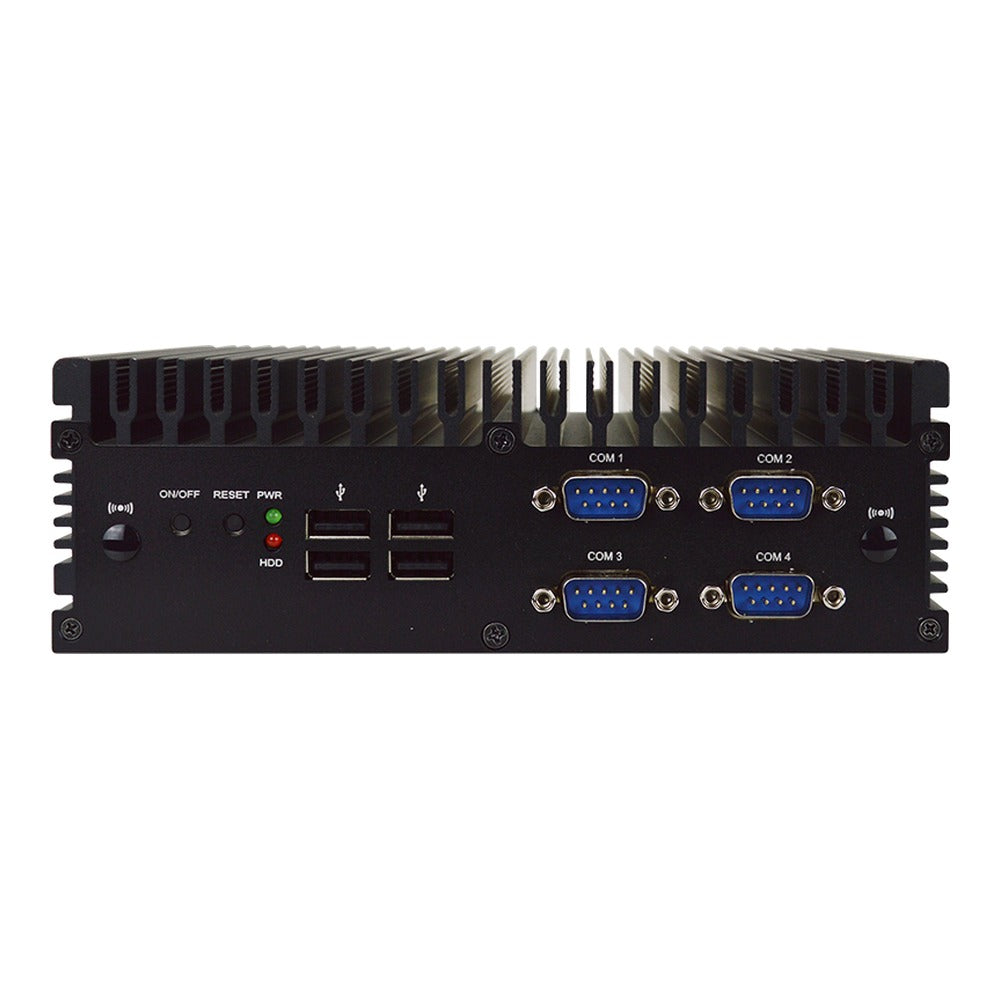

| Front Panel I/O | 4 x USB 2.0 4 x RS-232/422/485 1 x Power Button, 1 x Reset Button 1 x Power LED, 1 x HDD LED 2 x Antenna Holes |

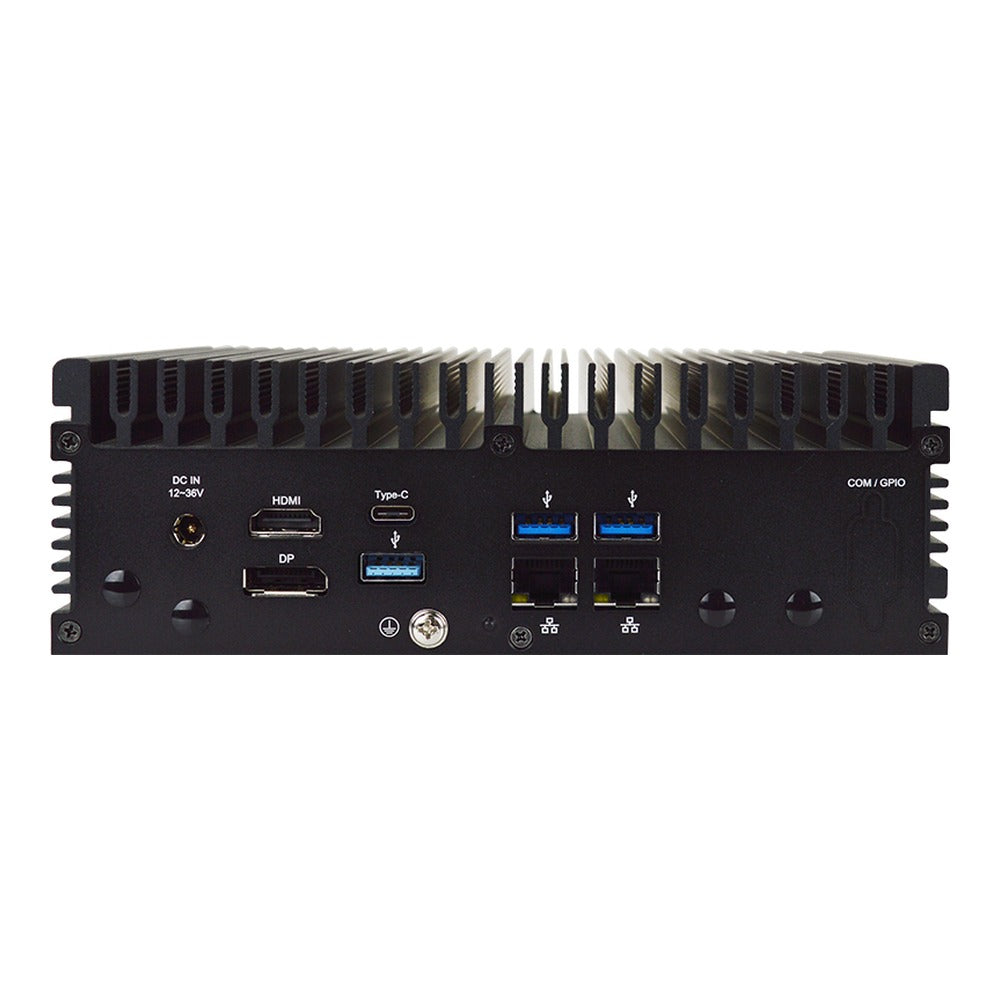

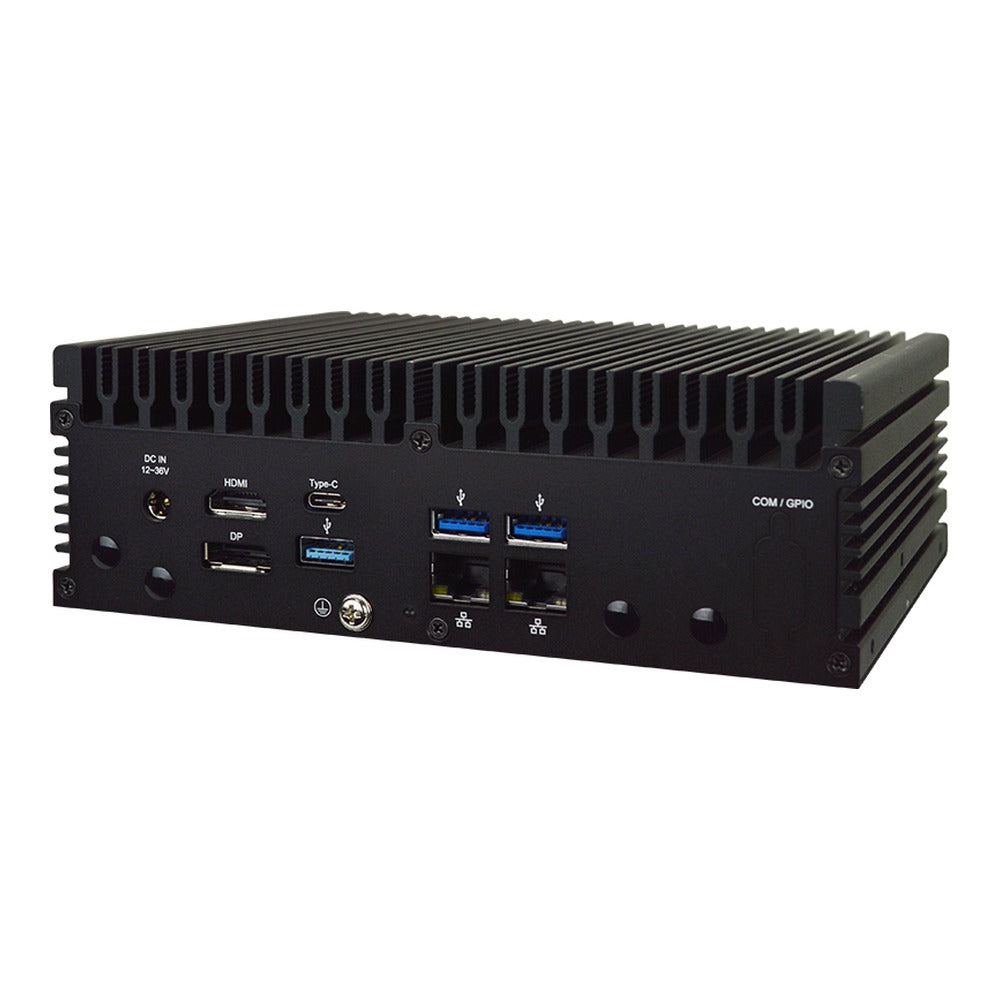

| Rear Panel I/O | 1 x DC-in (12~36V) 2 x 2.5GbE RJ45 1 x HDMI® 2.0b 1 x DisplayPort 1.4 1 x USB 3.2 Gen 1 Type-C (DP 1.4) 3 x USB 3.2 Gen 2 1 x Ground Terminal 4 x Antenna Holes |
| Watchdog Timer | 255 Levels |
| OS Support | Windows 11 (64-bit) Windows 10 (64-bit) Linux |
| Power Input | DC-in 12V ~ 36V Wide Voltage Input AT / ATX (Default) Power On Mode 90W AC/DC Adapter Included (AC 90~240V, DC 19V / 4.74A) |
| Dimensions | 185.0 x 142.0 x 61.0mm 7.28" x 5.6" x 2.4" (in inches) Fanless Aluminum Heatsink with Metal Chassis |
| Mounting | Desktop Wall Mount (brackets included) DIN Rail Mount (brackets included) |
| Environmental | Operating Temperature: -20°C to 60°C (-4°F to 140°F) Storage Temperature: -20°C to 85°C (-4°F to 185°F) Humidity: 10% to 90% (non-condensing) |
| Certifications | CE / FCC Class A, LVD |
| Package Contents | B382FMTU1-A211 Barebone System 2 x Wall Mount Kits 2 x DIN Rail Brackets 90W Power Adapter (19V / 4.74A) Power Cord (Region Specific) Screw Pack |
PRODUCT ID: B382FMTU1-A211
