Manufacturer	APLEX Technology
Product ID	AVS-553
Model Name	AVS-553
CPU	Supports Intel 14th/13th Gen Core Processor Socket LGA 1700 Maximum 65W TDP
Chipset	Intel R680E
Memory	4 x DDR5 DIMM slots Maximum 128GB Capacity 4400/4000 MT/s Non-ECC UDIMM
Video	Intel HD Graphics (CPU Dependent) HDMI 2.1 Max Resolution: 7680x4320@60Hz DisplayPort 1.4a Max Resolution: 7680x4320@60Hz Supports Dual Displays
Audio	1 x Line Out 1 x Mic In
Storage Technology	2 x SATA Connectors 2 x M.2 2280/2242 slots (PCIe, M Key)
Connectivity	4 x Intel I226LM 2.5GbE LAN Supports iAMT
Expansion Slots	1 x PCI-E 5.0 x16 (Full Height, Full Length) Note: Occupying more than 1 slot may block other PCIe slots 1 x PCI-E 4.0 x4 1 x PCI-E 3.0 x4 1 x Mini PCI-E slot (Half/Full Size) 1 x M.2 3042/3052 slot (B Key) 1 x Nano SIM Slot

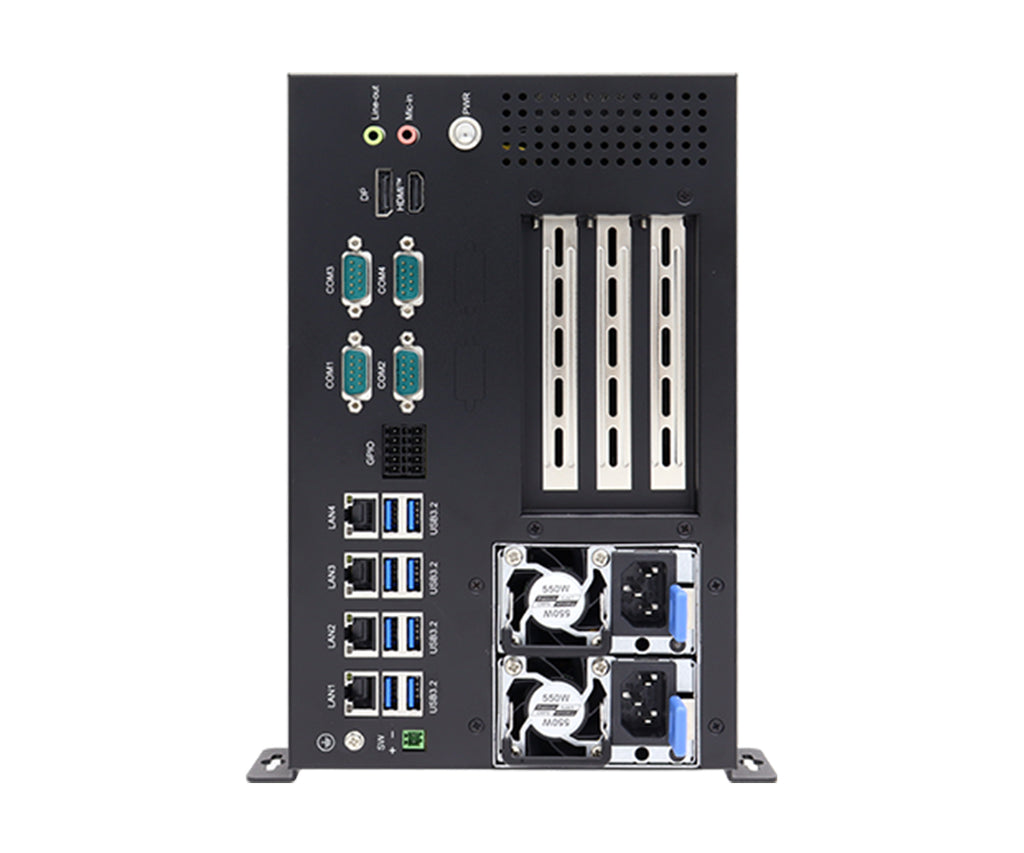

Rear Panel I/O	1 x GND Screw 1 x 2-Pin Remote Switch 4 x RJ45 2.5GbE LAN 8 x USB 3.2 (Gen2) 1 x 8-pin GPIO (4 In, 4 Out) (3.3V/5V Hardware Selectable) 4 x COM (RS232/422/485) 1 x DisplayPort 1 x HDMI 2 x Audio I/O 1 x Power Button
Drive Support	2 x M.2 2280/2242 slots (PCIe, M Key)
OS Support	Windows 11 Linux Ubuntu 20.04

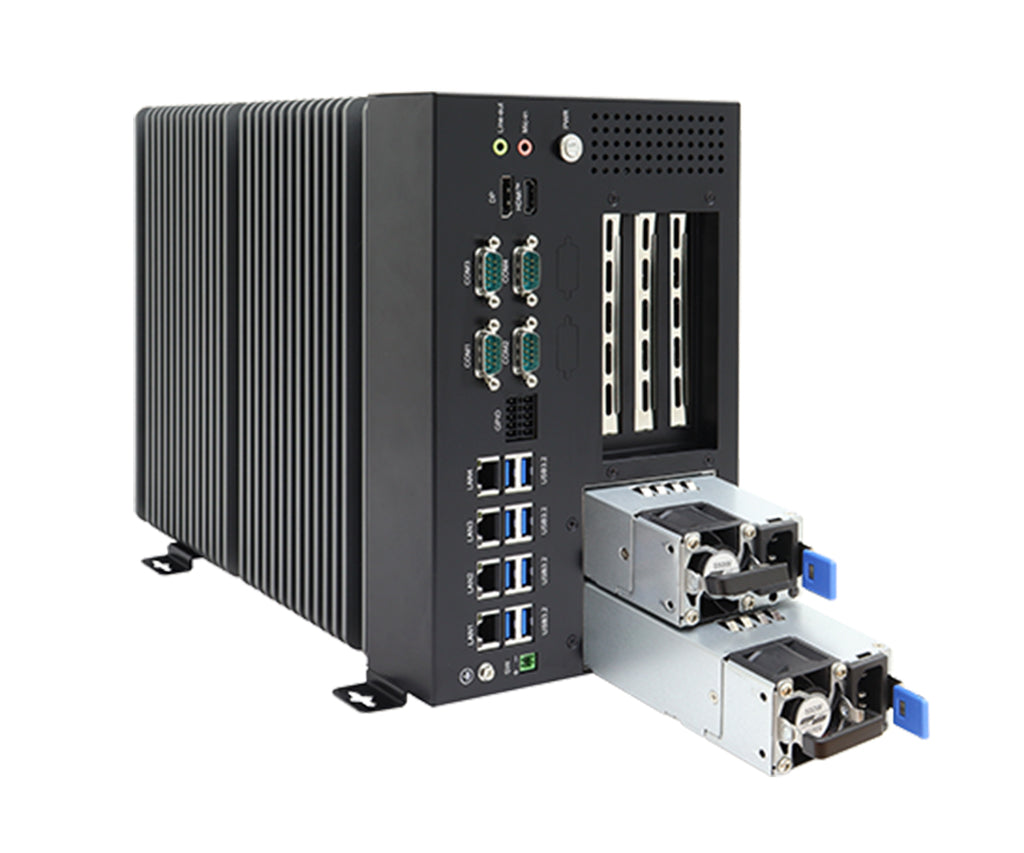

Power Supply	2 x 550W CRPS Support total 1100W AC 90-264V
Case Dimensions	258 x 166 x 368.3mm 10.2" x 6.5" x 14.5" (in inches)
Mounting	Wallmount
Environmental	Operating Temperature: -20°C to 60°C (-4°F to 140°F) Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F) Humidity: 95% RH @ 40°C (non-condensing) Operating Shock: IEC 60068-2-27, 50G, half sine, 11ms Operating Vibration: IEC 60068-2-64, 2 Grms, random, 5~500 Hz, 1hr/axis
Compliance	RoHS CE, FCC Class A, UL 61010-2-201
Warranty	2-Year Manufacturer's Limited Warranty
