| Manufacturer | Supermicro |
| Product ID | AS-1114S-WTRT |
| CPU |
Supports AMD EPYC 7002 Series Processors Socket SP3 Supports up to 240W TDP |
| Chipset | SoC |
| Memory |
8 x DDR4 DIMM Slots Supports up to 2TB RDIMM/LRDIMM 3DS 3200MHz |
| Video | ASPEED AST2500 BMC |
| Storage Technology |
2 x SATA3 6Gb/s Ports Supports SATADOM M.2: PCI-E 3.0 x2 or SATA |
| Connectivity |
2 x Broadcom BCM57416 10GBase-T LAN 1 x Realtek RTL8211E PHY Dedicated IPMI |
| Expansion Slots |
2 x PCI-E 4.0 x16 slots (Full Height, Full Length) 1 x PCI-E 4.0 x16 slot (Low Profile, Some PCI-E 4.0 devices will run at PCI-E 3.0 Speeds) |

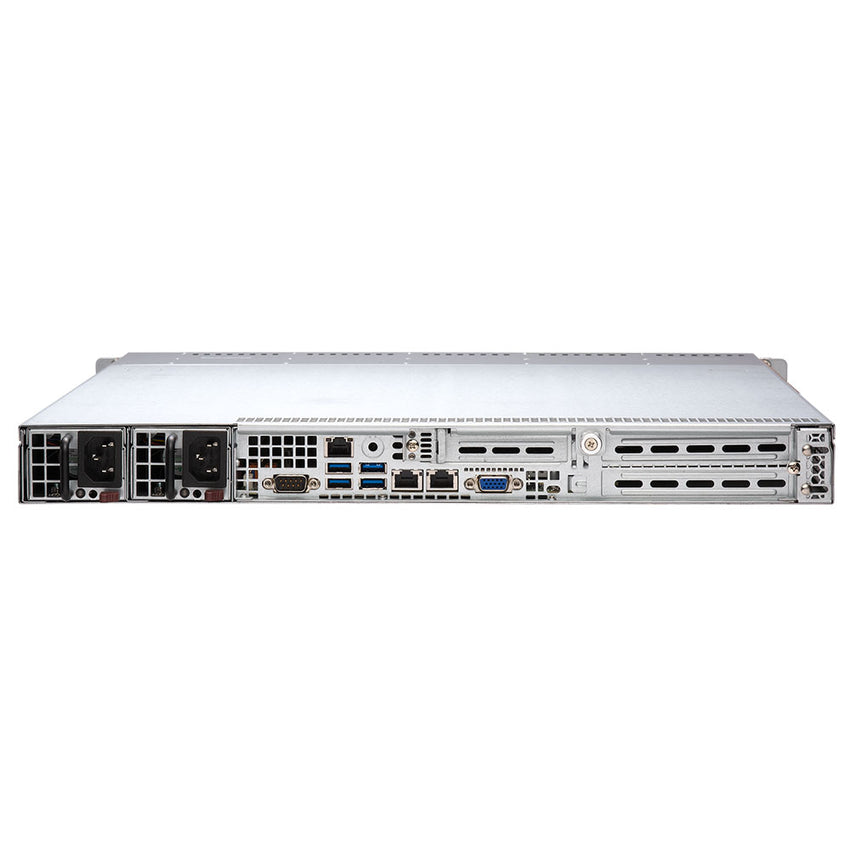

| Rear Panel I/O |
1 x Serial COM port 1 x RJ45 Dedicated IPMI 4 x USB 3.0 2 x RJ45 10GBase-T LAN 1 x VGA |

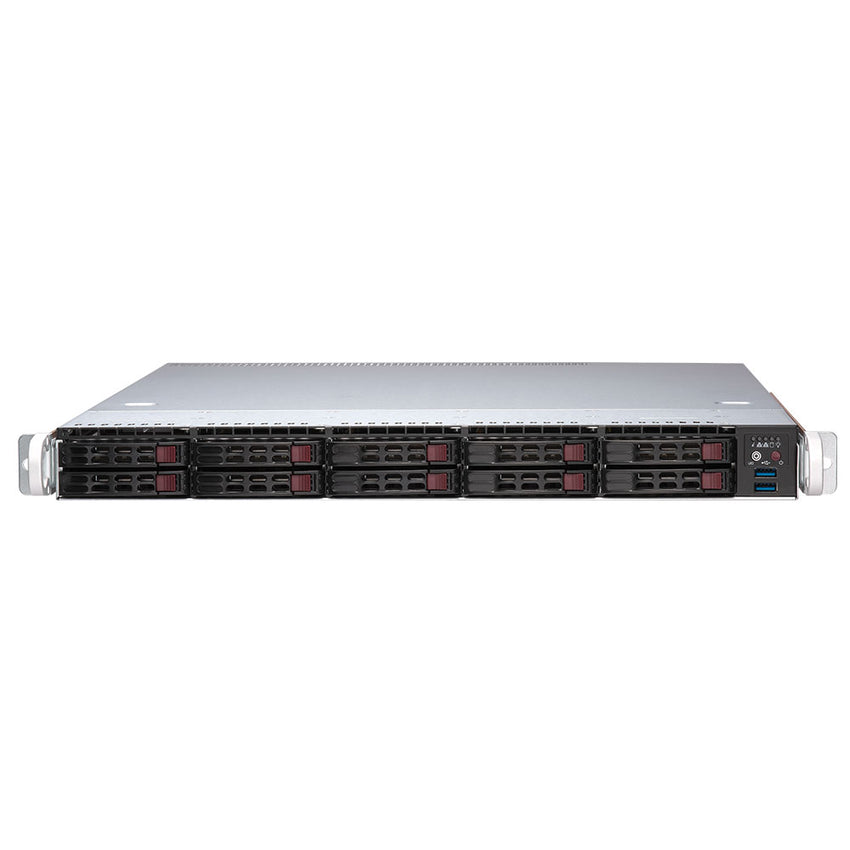

| Front Panel I/O |
5 x Status LED (Power, Network, BMC, Status, HDD) 1 x UID Button 1 x Power Button 2 x USB 3.0 |
| Drive Support |
10 x Hot-swap 2.5" SATA Drive Bays Optional 2 x U.2 NVMe (PCI-E 3.0) via additional kit 1 x Optional Slim DVD-ROM Drive Bay 2 x M.2 2280/22110 slots (PCI-E 3.0 x2 or SATA) |
| Fan Support |
4 x 40x56mm 20.5K RPM Cooling Fans Supports up to 6 Cooling Fans |
| Power Supply |
500W 80 PLUS Platinum Redundant Power Supplies with PMBus 100-240Vac, 50-60Hz, 6.1 - 2.6A |
| Case Dimensions |
1U Rackmount 597 x 43 x 437mm 23.5" x 1.7" x 17.2" (in inches) |
| Environmental |
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing) |
| Compliance |
RoHS |
| Warranty |
1-Year Manufacturer's Limited Warranty on Parts 3-Year Manufacturer's Limited Warranty on Labor |
PRODUCT ID: AS-1114S-WTRT
