| Manufacturer | Supermicro |
| Product ID | AS-1015A-MT-01-G2 |
| Motherboard Model | Super H13SAE-MF |
| CPU | 1x AMD EPYC™ 4564P (16C/4.5GHz) (INCLUDED) Supports AMD EPYC 4004/4005 or AMD Ryzen 7000/9000 Series Processors Up to 16C/32T |
| Chipset | AMD B650 |
| Memory | 32GB DDR5-5600 ECC UDIMM (INCLUDED) 4 x DDR5 DIMM slots Maximum 192GB Capacity, 5200MT/s ECC/non-ECC UDIMM |
| BIOS | AMI 32MB SPI Flash |
| Video | 1 x VGA Port 1 x DisplayPort 1.4 1 x HDMI 2.0 (4K@60Hz) |
| Storage Technology | 1 x 1.92TB M.2 NVMe SSD (INCLUDED) 2 x M.2 PCI-E 5.0 x4 Slots (2280/22110) SATA 6Gb/s, RAID 0/1 NVMe RAID 0/1 (Native) |
| Connectivity | 1 x Dual 1GbE RJ45 (Intel® I210-AT) 1 x Dedicated IPMI LAN (Realtek RTL8211F) |
| Expansion | 1 x PCI-E 5.0 x16 Slot Supports Single-Width GPU: NVIDIA A2/L4/RTX 4000 Ada/RTX A4000, AMD Radeon Pro W7500 |

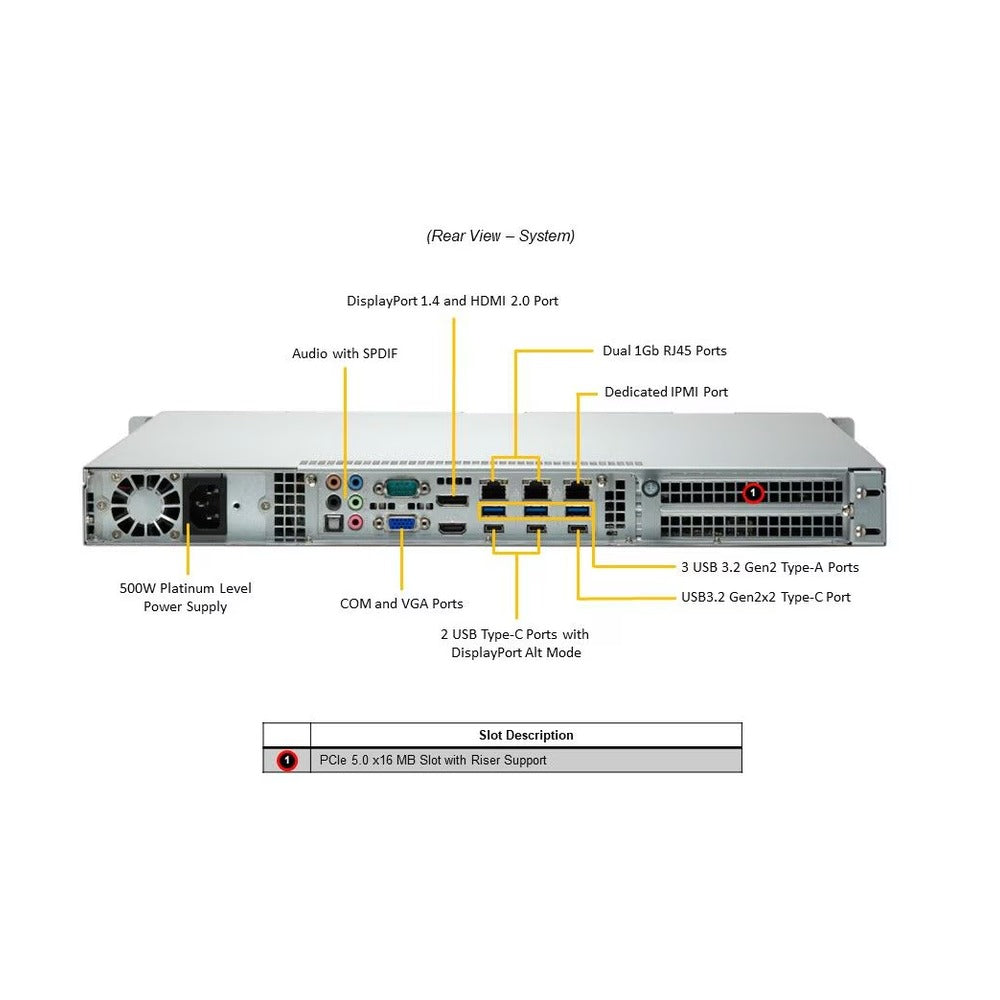

| Rear I/O | 3 x USB Type-A 2 x USB Type-C 1 x USB Type-C 1 x VGA 1 x DisplayPort 1.4 1 x HDMI 2.0 Rear Audio |
| Drive Support | 2 x M.2 PCI-E 5.0 x4 Slots (2280/22110) |
| Power Supply | 1 x 500W Platinum Level (93%) Power Supply |
| Cooling | Up to 6 x 40mm PWM Fans 1 x Air Shroud |

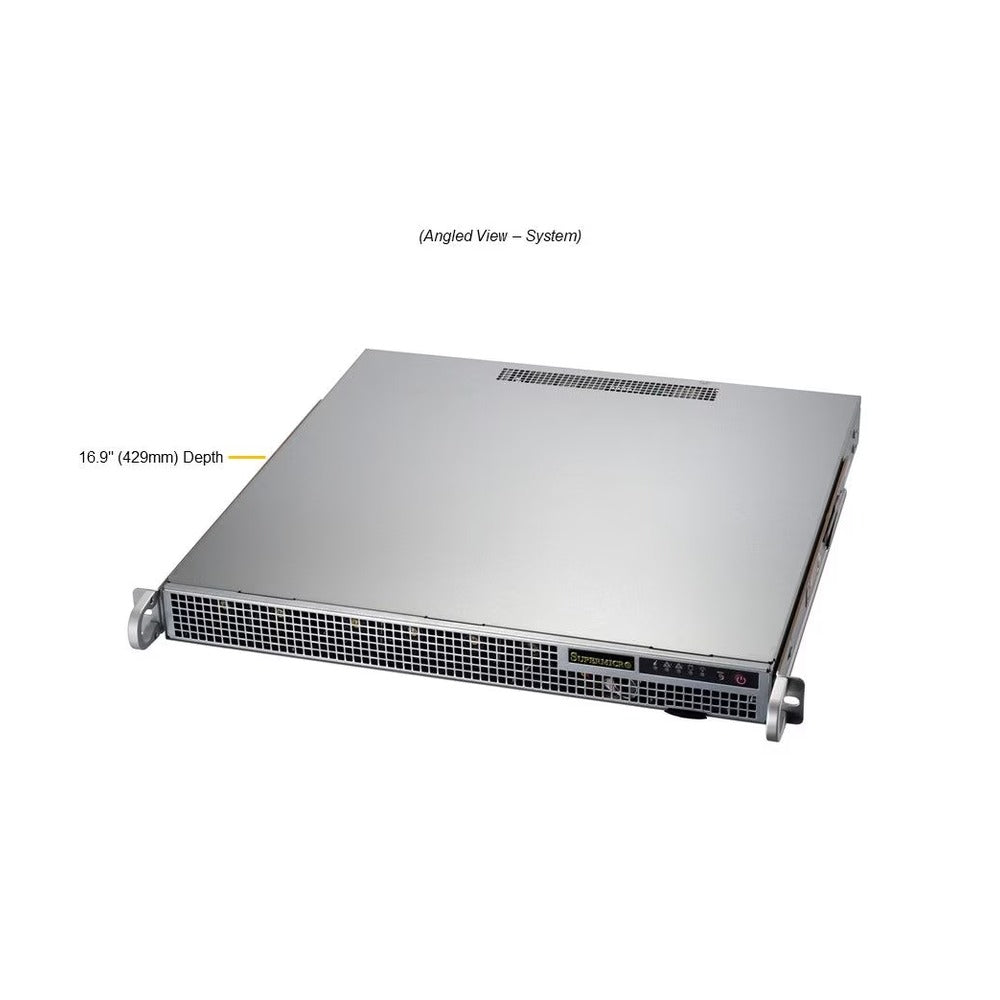

| Case Dimensions | 1U Form Factor 437 x 43 x 429mm 17.2" x 1.7" x 16.9" (in inches) |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 90% (Non-Condensing) Non-operating Humidity: 5% to 95% (Non-Condensing) |
| Weight | Gross Weight: 16 lbs (7.26 kg) |
| Warranty | 3 Years Labor / 3 Years Parts / 1 Year Cross-Ship |
PRODUCT ID: AS-1015A-MT-01-G2
