| Manufacturer | ASRock Industrial |
| Product ID | AI BOX-A395 |
| Model Name | AI BOX-A395 |
| CPU | AMD Ryzen™ AI Max+ 395 Processor (Strix Halo) 16 Cores / 32 Threads Boost up to 5.1 GHz AMD XDNA™ 2 NPU, up to 50 TOPS Up to 126 TOPS Total Platform AI Performance |
| Chipset | SoC Redundant Dual BIOS (2 x AMI SPI 256Mbit) TPM 2.0 Onboard IC |
| Memory | Onboard LPDDR5X (Not Upgradeable) Up to 8000 MT/s 128GB Capacity |
| Video | AMD Radeon™ 8060S Graphics HDMI 2.1 Max Resolution: 7680x4320@60Hz DisplayPort 2.1 Max Resolution: 7680x4320@60Hz Supports Quad Display (Includes 3 Outputs from Type-C) |
| Audio | Realtek ALC897 HD Audio |
| Storage Technology | 1 x M.2 (M Key, 2242/2280) with PCIe Gen4 x4 for SSD 1 x M.2 (M Key, 2280) with PCIe Gen4 x4 for SSD Supports RAID 0/1 |
| Connectivity | 1 x Marvell AQC113 10 Gigabit LAN 1 x Realtek RTL8125BG 2.5 Gigabit LAN Wi-Fi 7 802.11be + Bluetooth 5.4 |
| Expansion Slots | 1 x M.2 (E Key) Slot, Populated with Wi-Fi 7 Module |

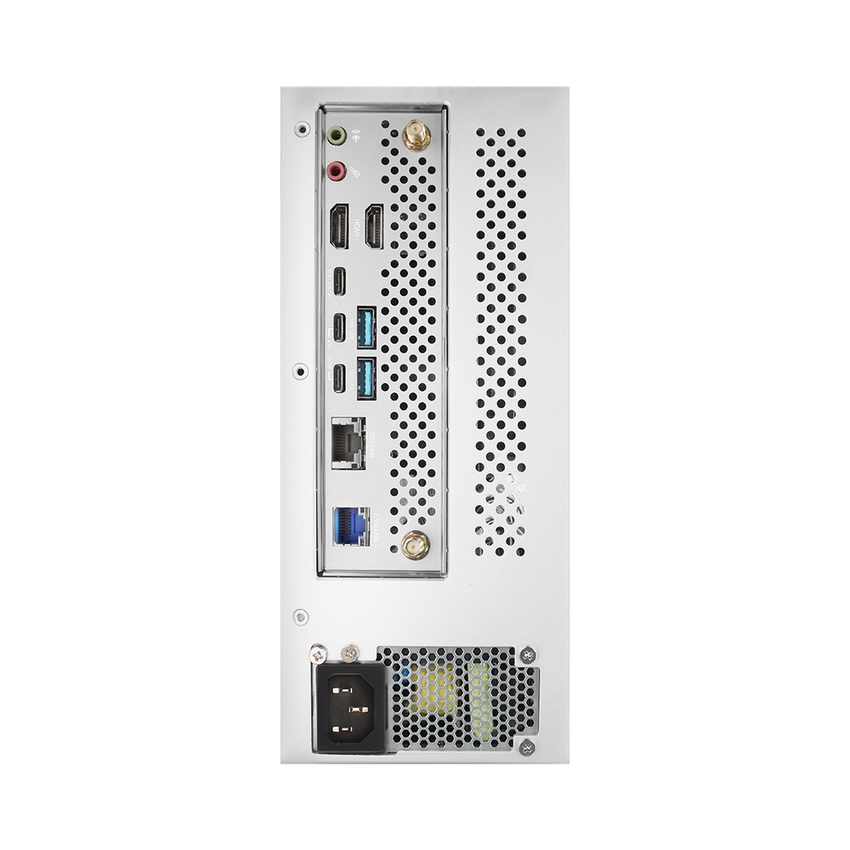

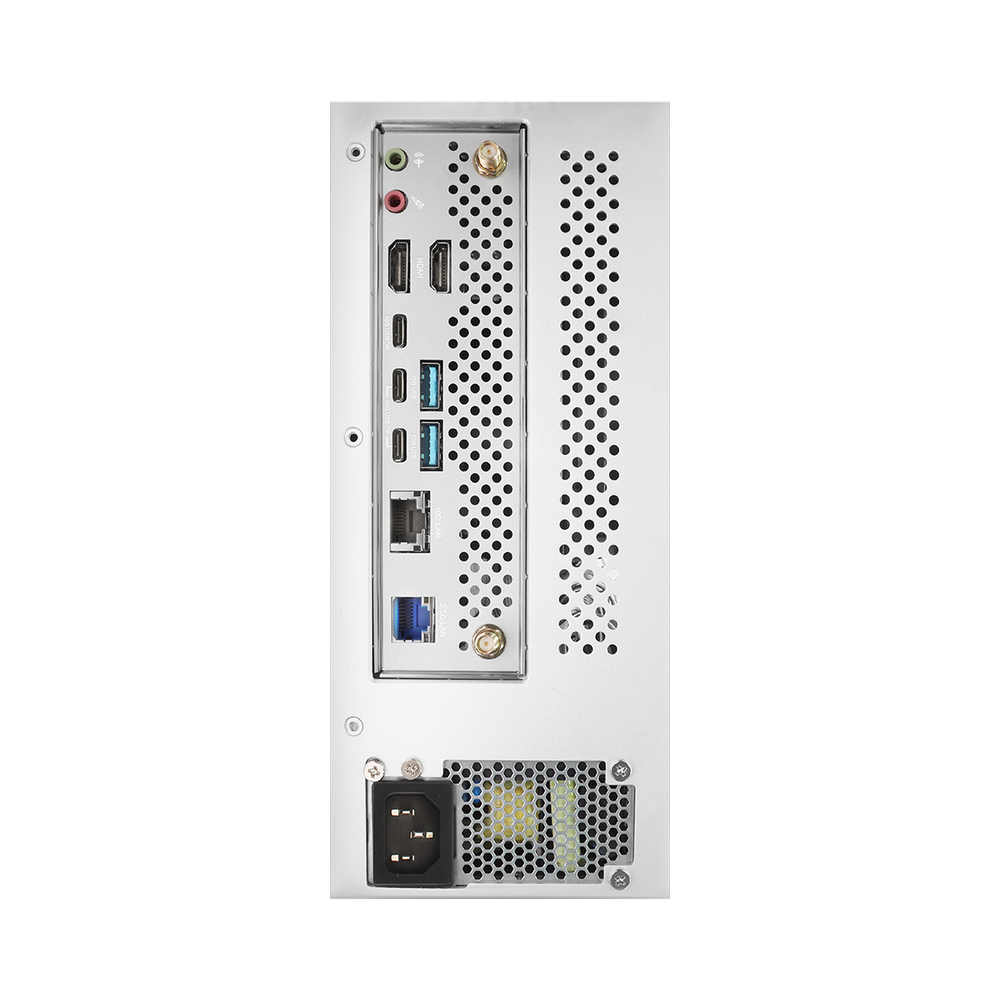

| Rear Panel I/O | 2 x HDMI 2.1 1 x RJ45 10GbE LAN 1 x RJ45 2.5GbE LAN 2 x USB4 (Supports DP 2.1 Output) 1 x USB 3.2 (Gen2) Type-C (Supports DP 2.1 Output) 2 x USB 3.2 (Gen2) 2 x Audio (Mic-In/Line-Out) |
| Top Panel I/O | 2 x USB 2.0 |
| Drive Support | 2 x M.2 SSD Slots (M Key, 2242/2280 and 2280, PCIe Gen4 x4) |
| OS Support | Windows 11 Linux |
| Power Supply | AC Input: 100-240V, 50/60Hz, 400W (Internal Power Supply) |
| Case Dimensions | 200 x 100 x 232mm 7.87" x 3.94" x 9.13" (in inches) |
| Mounting | Desktop / Portable Includes Carrying Handle Kit |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 5% to 90% (non-condensing) Storage Humidity: 5% to 90% (non-condensing) |
| Compliance | CE, FCC, TAA Compliant |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: AI BOX-A395
