| Manufacturer | APLEX Technology |
| Product ID | ACS-330 |
| Model Name | ACS Series (APLEX Control System) |
| CPU | Intel Atom x7425E 4 Cores / 4 Threads Up to 3.4 GHz 6MB Intel Smart Cache 12W TDP |
| Chipset | SoC Onboard TPM 2.0 |
| Memory | 1 x DDR5 SO-DIMM Slot (Non-ECC) Supports up to 32GB 4800 MT/s No Memory Included |
| Video | Intel UHD Graphics (24 EU, up to 1.0 GHz) 1 x HDMI 2.0b (up to 4K @60Hz, HDCP 2.2) 1 x DisplayPort 1.4 (up to 4K @60Hz, VDSC 1.1, HDCP 2.2, MST) Supports Dual Independent Displays |
| Audio | 1 x Line-out 1 x Mic-in 1 x Line-in (Optional) |
| Storage Technology | 1 x M.2 2242 B+M Key (SATA) |
| Connectivity | 2 x 2.5GbE LAN (RJ-45) Supports Time-Sensitive Networking (TSN) |
| Expansion Slots | 1 x Mini PCIe 3027/3051 (Wi-Fi Module) 1 x M.2 3042/3052 B-Key (4G/5G Module) |

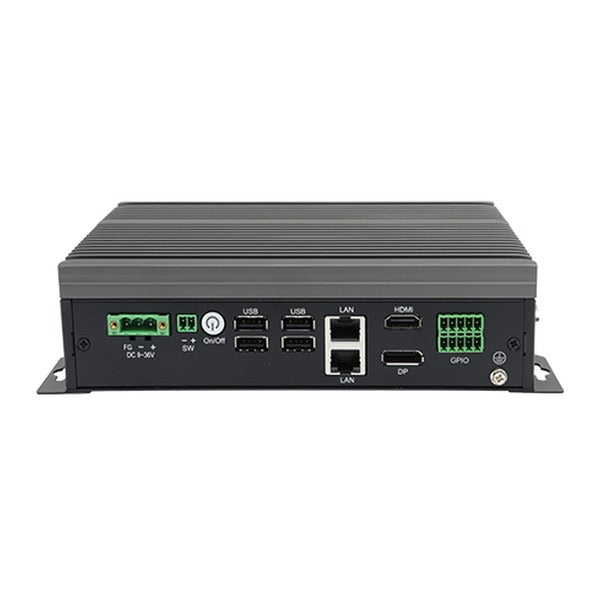

| I/O Ports | 4 x USB 2.0 Type-A (Front) 2 x RJ45 2.5GbE LAN 1 x HDMI 2.0b 1 x DisplayPort 1.4 2 x RS-232/422/485 (BIOS Selectable) 8 x GPIO (4-IN / 4-OUT, 3.3V/5V Hardware Selectable) 1 x Line-out, 1 x Mic-in 1 x DC-IN Terminal Block (9-36V) 1 x Power Button, 1 x Power LED |
| Internal Headers | 1 x SMBus Wafer Header 1 x I2C Interface (M.2 Connector) 1 x Switch Connector |

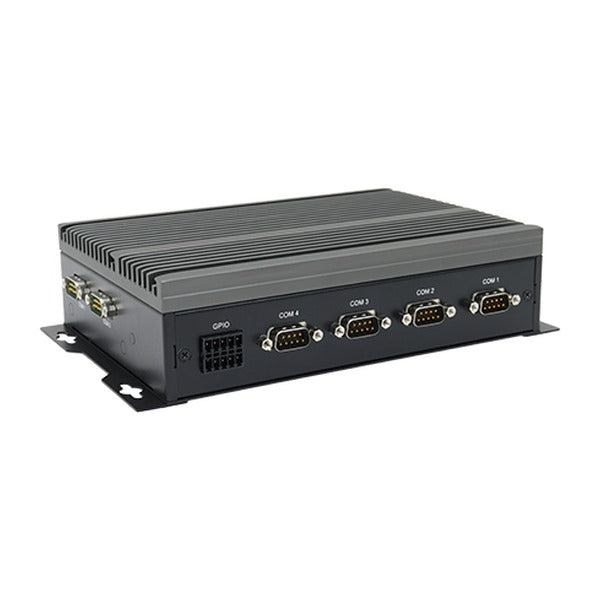

| Optional Expansion Card | One of the following (selectable configuration): 4 x RS-232/422/485 (BIOS Selectable) + 8 x GPIO or 2 x USB 2.0 Type-A + 2 x RJ45 LAN |
| Drive Support | 1 x M.2 2242 B+M Key (SATA) |
| OS Support | Windows 10 Windows 11 22H2 Linux Ubuntu 20.04 / 22.04 |
| Power Supply | DC 9-36V Wide Range Input Optional 12V 60W AC-DC Adapter (Sold Separately) |
| Construction | Fanless Design Steel Chassis with Aluminum Heatsink |

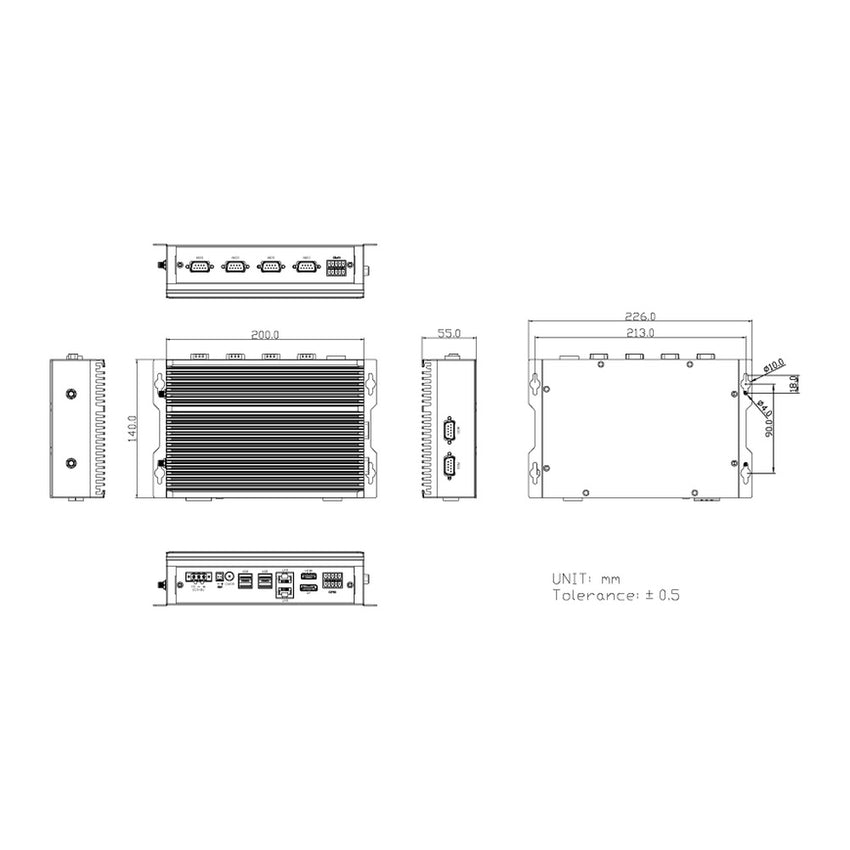

| Case Dimensions | 200 x 55 x 140mm (W x H x D) 7.87" x 2.17" x 5.51" (in inches) |
| Net Weight | 2.5 kg / 5.51 lbs |
| Mounting | Wall Mount DIN Rail |
| Environmental | Operating Temperature: -20°C to 60°C (-4°F to 140°F) default; -30°C to 70°C (-22°F to 158°F) optional Storage Temperature: -40°C to 85°C (-40°F to 185°F) Humidity: 95% RH @ 40°C Shock: IEC 60068-2-27, 50G, half sine, 11ms (operating) Vibration: IEC 60068-2-64, 2 Grms, random, 5-500 Hz, 1 hr/axis (operating) Ingress Protection: IP20 |
| Compliance | CE, FCC Class A, UKCA, LVD, RoHS, UL 61010-2-201 |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: ACS-330
