| Manufacturer |
MSI IPC |
| Product ID |
939-9B05-007 |
| Model Name |
MS-9B05 |
| CPU |
Intel Core i7-8665UE Processor
4 Cores / 8 Threads
1.70 - 4.40 GHz
15 - 25W TDP, 8 MB Intel Smart Cache
|
| Chipset |
SoC
|
| Memory |
2 x DDR4 SODIMM slots
Maximum 32GB Capacity
2400 MHz
Dual Channel |
| Video |
Intel UHD Graphics 620
300 MHz - 1.15 GHz
32GB Graphics Video Max Memory
HDMI 2.0 Max Resolution: 4096x2160@60Hz
HDMI 1.4 Max Resolution: 4096x2160@24Hz Supports Triple Displays
|
| Audio |
Realtek ALC887-VD2-CG HDA Codec
|
| Storage Technology |
1 x SATA Connector
1 x Mini PCI-E with mSATA Support |
| Connectivity |
1 x Intel I219LM GbE LAN
1 x Intel I210-AT GbE LAN
|
| Expansion Slots |
1 x M.2 2242 slot (PCIe x4)
1 x M.2 2230 slot (PCIe x1, USB 2.0)
1 x Mini PCI-E with mSATA Support
1 x Mini PCI-E with Nano SIM holder
|

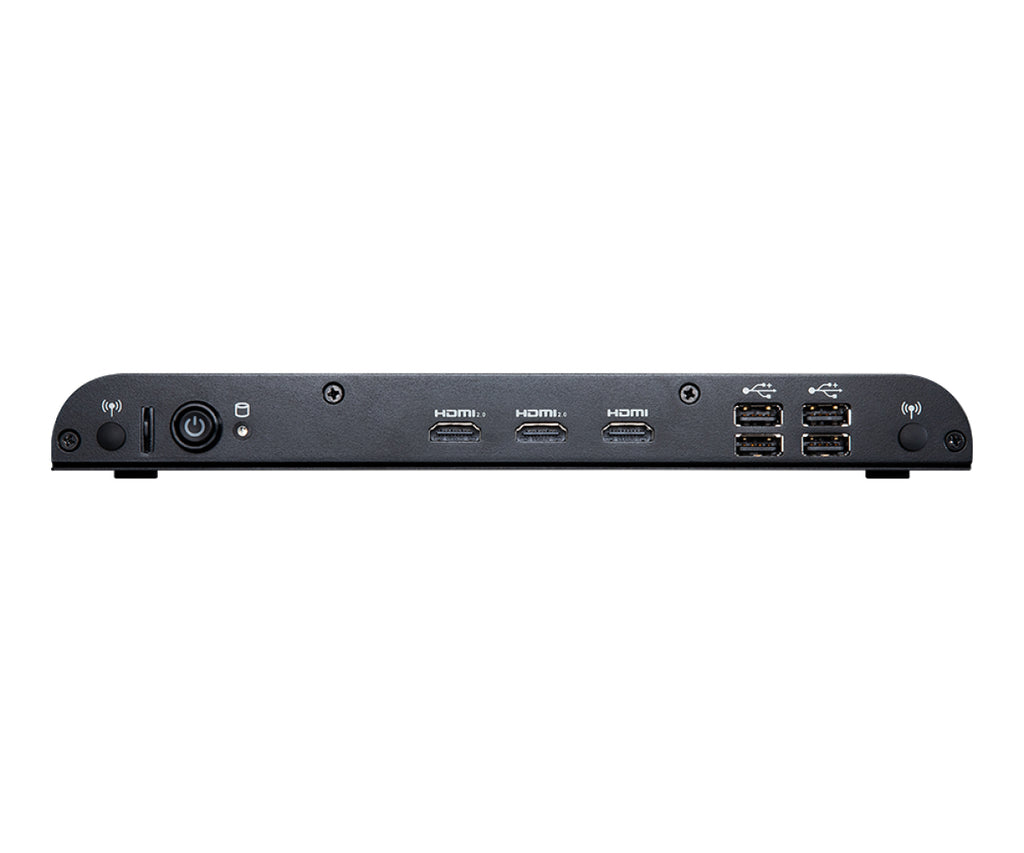

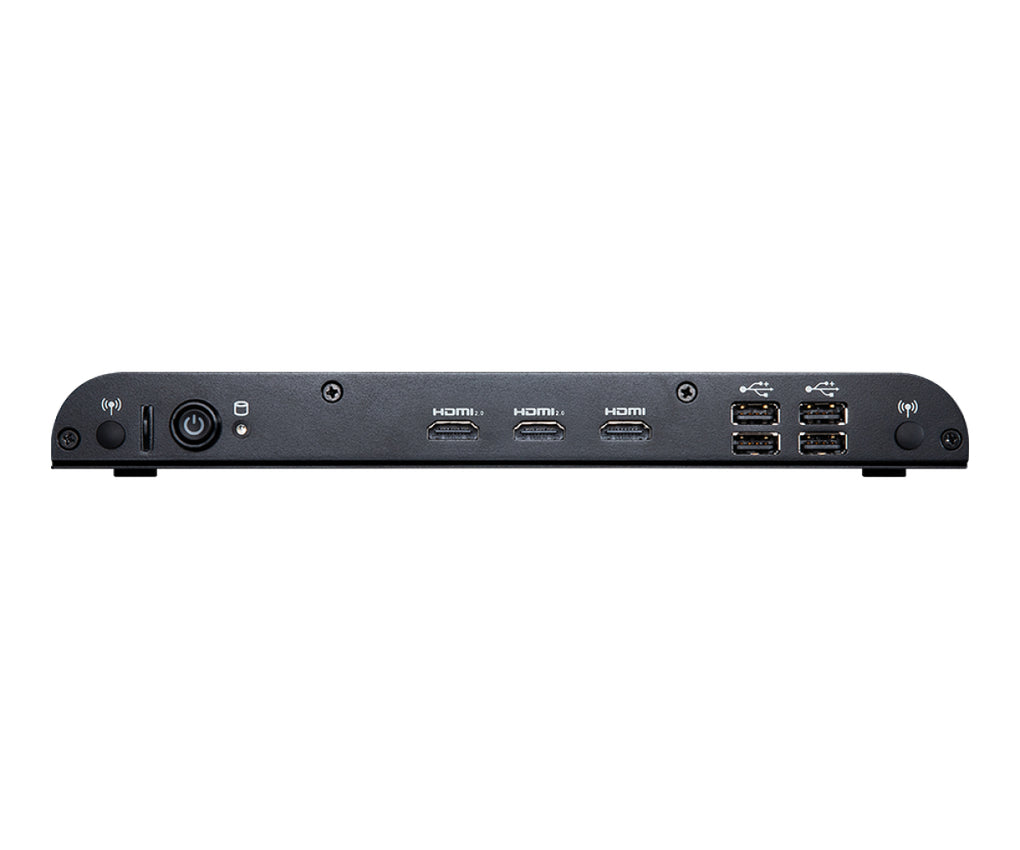

| Bottom Panel I/O |
2 x Antenna Cutout
1 x Power Button with LED
1 x HDD LED
3 x HDMI
4 x USB 2.0
|

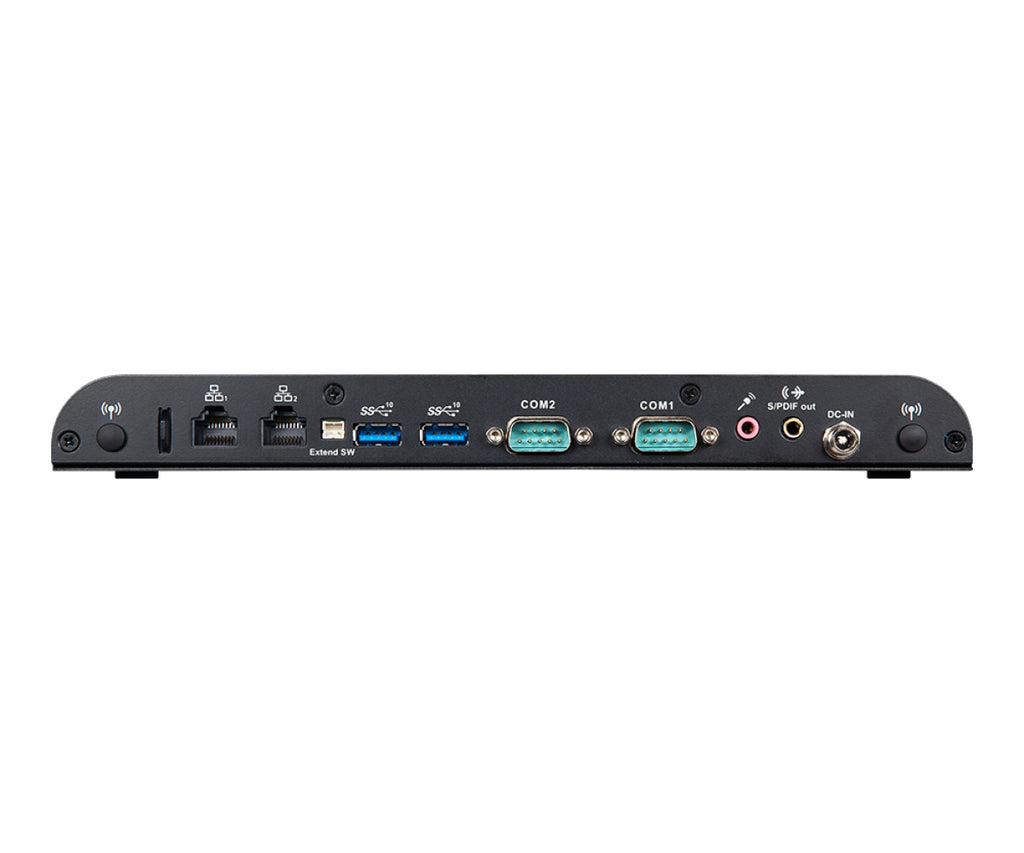

| Top Panel I/O |
2 x Antenna Cutout
2 x RJ45 GbE LAN
1 x 2-pin Extend Switch
2 x USB 3.2 (Gen2)
2 x COM (RS232/422/485, 0V/5V/12V)
1 x Audio In/Out
1 x S/PDIF Out
1 x 9-36V DC-In
|
| Drive Support |
1 x 2.5" SATA Drive Bay
1 x Mini PCI-E with mSATA Support
|
| OS Support |
Windows 10 IoT Enterprise LTSC/SAC 1809 (64-bit, RS5)
Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan)
Linux (Support by request)
|
| Power Supply |
9-36V DC-IN Barrel Connector
65W 19V AC-DC Adapter
|
| Case Dimensions |
260 x 185 x 27mm
10.2" x 7.3" x 1.06" (in inches)
|
| Mounting |
DIN Rail Mount
VESA Bracket
|
| Environmental |
Full IP40
Operating Temperature: -10°C to 40°C (14°F to 104°F) (with Airflow: 0.7 m/s)
Non-Operating Temperature: -20°C to 80°C (-4°F to 176°F)
Operating Humidity: 10% to 90% (non-condensing)
Non-Operating Humidity: 10% to 90% (non-condensing)
Vibration: IEC61373 Category 1, Class A
Operating Vibration: IEC 60068-2-64: 2 Grms, 5 ~ 500 Hz, 1hr/axis (w/ SSD)
Shock: IEC61373 Category 1, Class A
Operating Shock: IEC 60068-2-27: 50G, half sine, 11ms (w/ SSD)
|
| Compliance |
FCC, CE, RCM, VCCI, BSMI Class A
|
| Warranty |
1-Year Warranty on Parts and Labor |
