| Manufacturer | MSI IPC |
| Product ID | 936-C909-003 |

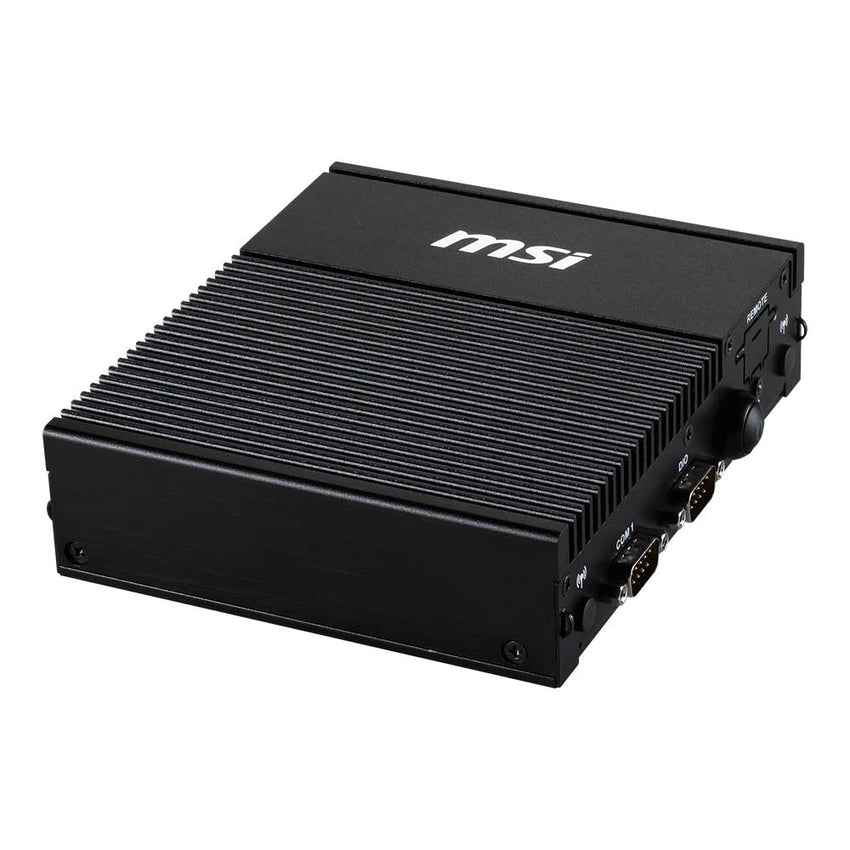

| Model Name | MS-C909 |
| CPU | Intel Celeron J6412 Processor 4 Cores / 4 Threads 2.0 - 2.6 GHz 10W, 1.5MB L2 Cache |
| Chipset | SoC Onboard Infineon SLB9672VU2.0 TPM 2.0 |
| Memory | 1 x DDR4 SODIMM slot Maximum 16GB Capacity 3200 MHz |
| Video | Intel UHD Graphics 400 - 800 MHz 16 Execution Units HDMI Max Resolution: 3840x2160@30Hz Supports 2 Independant Displays |
| Audio | N/A |
| Storage Technology | 1 x M.2 2280/2242 slot (B Key, SATA) |
| Connectivity | 1 x Intel I226-V 2.5GbE LAN |
| Expansion Slots | 1 x M.2 2280/2242/3042 slot (SATA/PCIe x1) 1 x M.2 2230 slot (E-Key, PCIe x1/USB 2.0) |

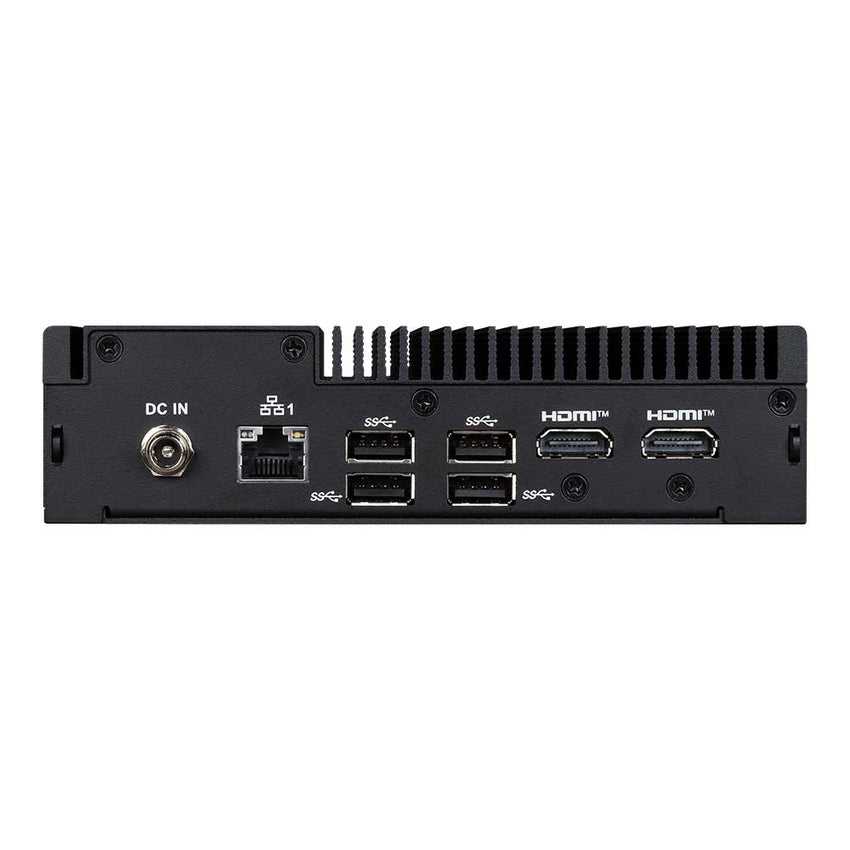

| Rear Panel I/O | 1 x 12-24V DC-IN 1 x RJ45 2.5GbE LAN 4 x USB 3.2 (Gen1) 2 x HDMI |

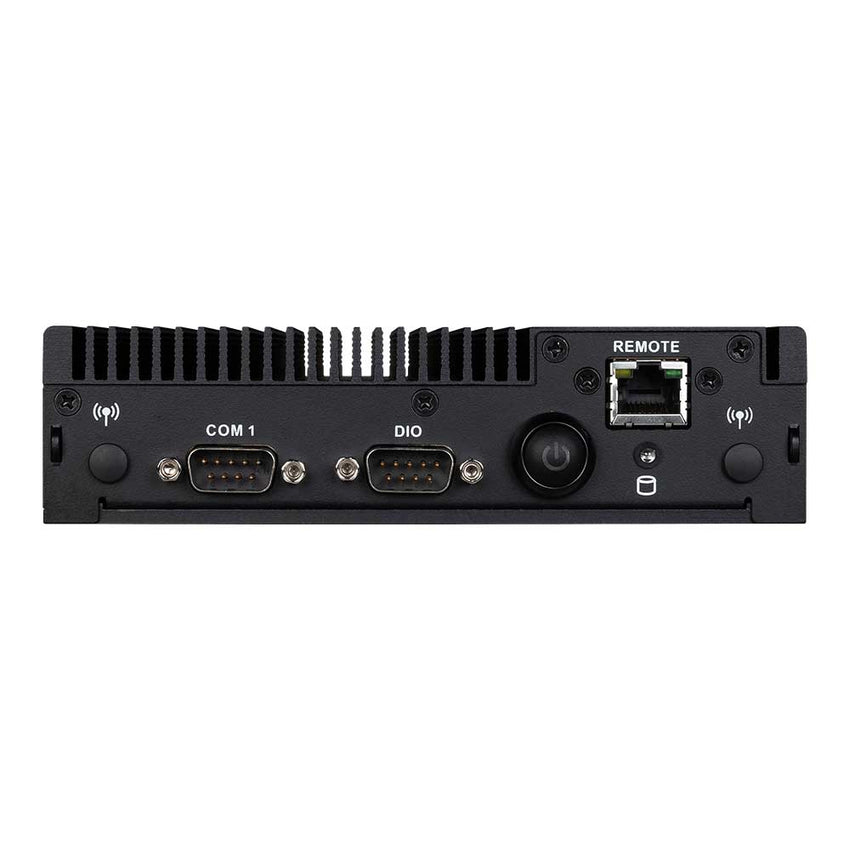

| Front Panel I/O | 2 x Antenna Cutout 1 x COM (RS232/422/485, 0V/5V/12V) 1 x DIO (8-bit, 4 x GPI/4 x GPO) 1 x Power Button with LED 1 x HDD LED |
| Drive Support | 1 x M.2 2280/2242 slot (B Key, SATA) |
| OS Support | Windows 10 IoT Enterprise LTSC (64-bit, 21H2) Linux (Support by request) |
| Power Supply | 12-24V DC-IN Barrel Connector Includes 19V 65W AC-DC Adapter |
| Case Dimensions | 130 x 155 x 40mm 5.12" x 6.10" x 1.57" (in inches) |
| Mounting | Wallmount DIN Rail Mount |
| Environmental | Operating Temperature: -10°C to 60°C (14°F to 140°F) Non-operating Temperature: -20°C to 80°C (-4°F to 176°F) Non-Operating Humidity: 10% to 90% (non-condensing) Vibration: IEC61373 Category 1, Class B Shock: IEC61373 Category 1, Class B |
| Compliance | CE, FCC, RCM, VCCI, BSMI, UKCA, IC BSMI |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: 936-C909-003
