| Manufacturer |
ASUS |
| Product ID |
90AE01T1-M000L0 |
| Model Name |
Tinker System 3N |
| CPU |
ARM Cortex A55 Quad Core Processor 1.25 - 2.31 GHz
|
| Chipset |
Rockchip RK3568 |
| Memory |
4GB LPDDR4X Memory Dual Channel |
| Video |
ARM Mali-G52
|
| Audio |
1 x HDMI Audio 1 x 3.5mm Phone Jack with MIC |
| Storage Technology |
32GB eMMC Onboard Storage SPI Flash 16MB 1 x MicroSD (TF) Card slot (Push/Pull)
|
| Connectivity |
2 x RJ45 GbE LAN WIFI 5, Bluetooth
|
| Expansion Slots |
1 x M.2 2230 slot (Occupied by WIFI) 1 x M.2 3042/3052 slot (PCIe 3.0 x1, USB 3.0, SIM) 1 x Nano SIM slot
|
| Rear Panel I/O |
1 x 3.5mm Audio I/O 2 x USB 3.0 1 x USB 3.2 (Gen1) Type-C OTG Port 1 x HDMI 2 x RJ45 GbE LAN 2 x RS232 (with flow) optional 1 x RS232/422/485 optional 1 x CAN Bus 2.0 optional
|

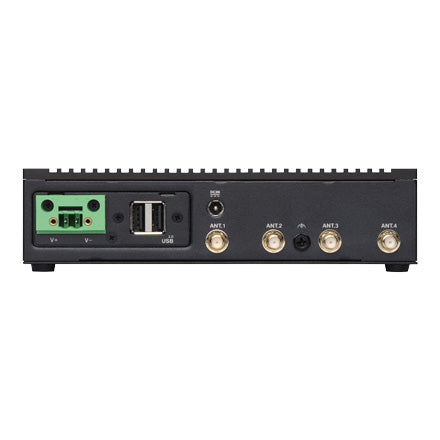

| Front Panel I/O |
1 x 2-Pin Terminal Block DC-IN 2 x USB 2.0 1 x 12-24V DC-IN 4 x Antenna Cutouts 1 x GND Screw
|
| Drive Support |
32GB eMMC Onboard Storage SPI Flash 16MB 1 x MicroSD (TF) Card slot (Push/Pull)
|
| OS Support |
Includes Debian 11 Supports Android 12 / Yocto
|
| Power Supply |
12-24V DC-IN (2.5/5.5mm inner/outer)
|
| Case Dimensions |
105 x 175 x 43 mm 4.1" x 6.9" x 1.7" (in inches)
|
| Mounting |
Wall mount (Support Assembly with DIN-Rail Clips)
|
| Environmental |
Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Non-Operating Humidity: 10% to 90% (non-condensing)
|
| Compliance |
CE, FCC, VCCI, BSMI |
| Warranty |
1-Year Warranty on Parts and Labor |
